10.1 inch 3mm Front Bezel Industrial Monitor with Multi-touch
Size:10.1”~21.5”
Industrial Monitor built with an ultra-thin 3mm front bezel, perfect for the embedded mount in the industrial automation application, and its IP65 dust/water-proof protection, wide temperature operation, anti-shock, and anti-electromagnetic interference offering a reliable guarantee for heavy-duty applications.
Quick Details: | |||
Panel Size | 10.1″ | Brightness | 320nits |
Touch Type | Capacitive | Interface | DVI, HDMI, VGA |
Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | IP Rating | Front IP65 |
Material | Aluminum Alloy | Power Supply | DC12V,AC100-240V |
Product Details
Features:
- 1.Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
- 2.Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, crrosion resistance, excellent performance of heat dissipation.
- 3.Industrial LCD panel, wide viewing angle, high nits, true color.
- 4.Adopt multi-points PCAP touch panel, high sensitive and fast-response.
- 5.High performance mainboard, 7×24 continuous operation.
- 6.Interfaces:HDMI, VGA, DVI-D, Audio-in,Earphone-out
- 7.Wide temperature range: operating: -10 to 60°C, storage: -20 to 70°C.
- 8.Ultra-thin front bezel 3mm, ideal for embedded mounting.
Main parameters | Touch parameters | |||
Model | TS-101MCWK | Touch Types | Capacitive(G+G) | |
Product type | Industrial Monitor | Clicks | Capacitive>50 million times | |
Frame | Aluminum Die-Casting/Black | Surface hardness | 7H | |
Brand | TECHTION | Touch Point | 10 points | |
Display parameters | Type of glass | Chemically strengthened glass | ||
LCD Size | 10.1” | Transmittance | >85% | |
Active Area | 216.96(H) *135.6(V)mm | Power consumption | ||
Resolution | 1280*800 | Standby power(w) | ≤0.5W | |
Contrast Ratio | 1000:1 | Power consumption(w) | ≤15W | |
Picture Aatio | 16:10 | Supply Voltage(v) | DC12V/DC9-36V(Optional) | |
Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | Audio output power | 4Ω*2W | |
Response Time | 35 ms | Dimensions | ||
Backlight Type | E-LED | Packing Size (mm) | 371*310*125mm | |

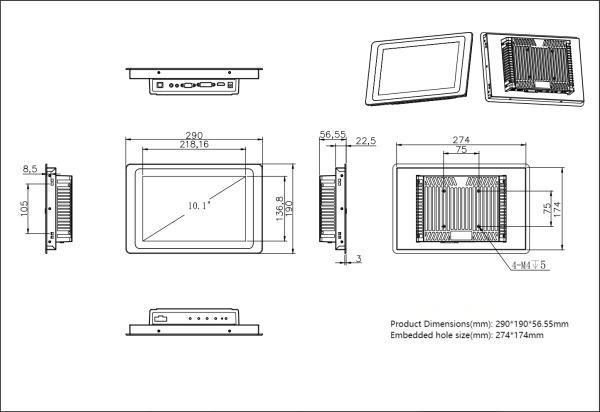

Brightness | 320cd/m2 | Product Dimensions(mm) | 290*190*56.55mm | |
Life span | 50000H | NW(kg) | 1.3kg | |
Protection | IP65 (front screen) | GW(kg) | 2.2kg | |
AD Board | Embedded hole size(mm) | 274*174mm | ||
External Connectors | DVI IN*1、VGA IN*1,HDMI IN*1,DC12V*1(DC24V Optional),PC Audio Input *1、Earphone Output *1,Touch USB*1 | Installation | Embedded | |
Environment | Accessories | |||
Operating temperature | -10℃~60℃ | Power Cable | 1 (AC 100-240V 50/60Hz) | |
Operating humidity | 10%~80% RH Non-Condensing | Power adapter | 1 (12V4A) | |
Storage temperature | -20℃~70℃ | HDMI Cable | 1 | |
Storage humidity | 10%~90% RH Non-Condensing | Touch USB Cable | 1 | |
Warranty | VGA Cable | Optional | ||
Warranty | 1 year | Fixed part | Recessed clip*4,PM4x30 screw*4 |
