10.1 inch Intelligent X86 Panel PC

Size:10.1”~21.5”

Industrial X86 Panel PC with a 3mm thin front bezel excellent for embedding into cabinets and equipment. Built with industrial electronic components, effectively prevents external electromagnetic interference. Industrial X86 Panel PCs are widely used in HMI and AI artificial intelligence.



Quick Details:
CPU J4125 Panel size 10.1″
DDR 4G/8G Brightness 320nits
EMMC SSD 128G/256G/512G IP Grade Front IP65
Touch Type Capacitive(G+G) Material Aluminum Alloy
Product Details

Features:

1.Equipped with high-speed intelligent Windows system and thin /beautiful /heat dissipation/ corrosion resistance.

2.The whole machine is fully enclosed and fanless design with IP65 dustproof and waterproof standard .

3.Supports portrait and landscape display modes and can continuous operation 24 hours a day.

4.The whole machine is made of aluminum alloy and is die-cast in one piece.

5.It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

6.Supports RTC real-time clock, scheduled power on and off, network wake-up, and serial port centralized control.

7.Applications: artificial intelligence terminals, self-service terminals, smart medical terminals,smart industry etc.



Main parameters Touch parameters
Model TS-101PCWK Touch Types Capacitive(G+G)
Product type Intelligent X86 Panel PC Clicks Capacitive>50 million times
Frame Aluminum Die-Casting/Black Surface hardness 7H
Brand TECHTION Touch Point 10 points
Display parameters Type of glass Chemically strengthened glass
LCD Size 10.1” Transmittance >85%
Active Area 216.96(H) *135.6(V)mm Power consumption
Resolution 1280*800 Standby power(w) ≤0.5W
Contrast Ratio 1000:1 Power consumption(w) ≤20W
Picture Aatio 16:10 Supply Voltage(v) DC12V/DC9-36V(Optional)
Viewing Angle 80/80/80/80(Typ.)(CR≥10) Audio output power 4Ω*2W
Response Time 35 ms Dimensions
Backlight Type E-LED Packing Size (mm) 371*310*125mm

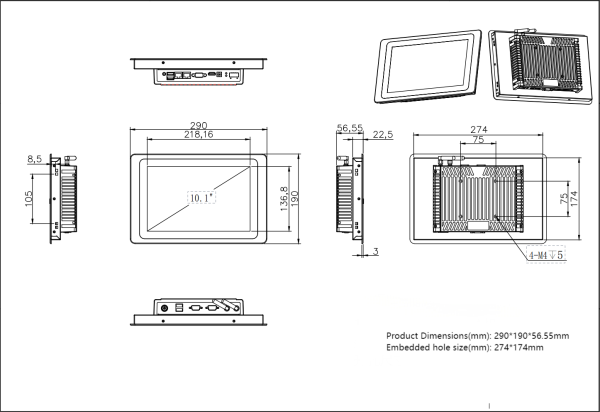

Brightness 320cd/m2 Product Dimensions(mm) 290*190*56.55mm
Life span 50000H NW(kg) 1.3kg
Protection IP65 (front screen) GW(kg) 2.2kg
X86 solution Opening size(mm) 274*174mm
CHIP J4125 Installation Embedded
CPU Integrated Intel®Celeron J4125 @2.0GHz  Quad-Core Accessories
GPU Integrated Intel®UHD Graphics 600 Power Cable *1 (AC 100-240V  50/60Hz)
DDR4 4G/8G Power adapter *1  (12V5A)
EMMC SSD 128G/256G/512G Fixed part Recessed clip*4,PM4x30 screw*4
OS Windows 10(Windows 11/Linux optional) Wifi antenna *1
LAN 1000M B/T antenna *1
WiFi 2.4G/5G Environment
B/T 4 Operating temperature -10℃~60℃
External Connectors USB3.0*2,USB2.0,RJ45*2,VGA*1,HDMI *1,DC12V*1,DC9-36V*1(Optional),COM*2,LINE OUT*1,Wifi antenna*1,B/T antenna*1 Operating humidity 10%~90% RH Non-Condensing
Warranty Storage temperature -20℃~70℃
Warranty 1 year Storage humidity 10%~90% RH Non-Condensing
