10.1 inch VESA Mount Intelligent X86 Panel PC

Size:10.1”~21.5”

VESA Mount Intelligent X86 Panel PC is made of industrial electronic components and can effectively prevent external electromagnetic interference, which can save you more space and provide flexible viewing angles, and can be applied to many fields.



Quick Details:
CPU J4125 Panel size 10.1″
DDR 4G/8G Brightness 320cd/m2
EMMC SSD 128G/256G/512G IP Grade Front IP65
Touch Type Capacitive(G+G) Material Aluminum Alloy
Product Details

Features:

1.Equipped with high-speed intelligent Windows system and thin /beautiful /heat dissipation/ corrosion resistance.

2.The whole machine is fully enclosed and fanless design with IP65 dustproof and waterproof standard .

3.Supports portrait and landscape display modes and can continuous operation 24 hours a day.

4.The whole machine is made of aluminum alloy and is die-cast in one piece.

5.It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

6.Supports RTC real-time clock, scheduled power on and off, network wake-up, and serial port centralized control.

7.Applications: artificial intelligence terminals, self-service terminals, smart medical terminals,smart industry etc.



Main parameters Touch parameters
Model TS-101PCBK Touch Types Capacitive(G+G)
Product type Intelligent X86 Panel PC Clicks Capacitive>50 million times
Frame Aluminum Die-Casting/Black Surface hardness 7H
Brand TECHTION Touch Point 10 points
Display parameters Type of glass Chemically strengthened glass
LCD Size 10.1” Transmittance >85%
Active Area 216.96(H) *135.6(V)mm Power consumption
Resolution 1280*800 Standby power(w) ≤0.5W
Contrast Ratio 1000:1 Power consumption(w) ≤20W
Picture Aatio 16:10 Supply Voltage(v) DC12V/DC9-36V(Optional)
Viewing Angle 80/80/80/80(Typ.)(CR≥10) Audio output power 4Ω*2W
Response Time 35 ms Dimensions
Backlight Type E-LED Packing Size (mm) 372*272*185mm

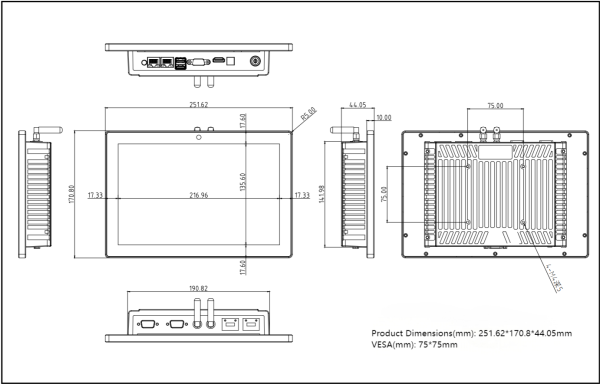

Brightness 320cd/m2 Product Dimensions(mm) 251.62*170.8*44.05mm
Life span 50000H NW(kg) 1.5kg
Protection IP65 (front screen) GW(kg) TBD
X86 solution VESA(mm) 75*75mm
CHIP J4125 Installation Wall Mounted /Hanging/Desktop
CPU Integrated Intel®Celeron J4125 @2.0GHz  Quad-Core Accessories
GPU Integrated Intel®UHD Graphics 600 Power Cable *1 (AC 100-240V  50/60Hz)
DDR4 4G/8G Power adapter *1  (12V5A)
EMMC SSD 128G/256G/512G Wall Mount(Optional) 1
OS Windows 10(Windows 11/Linux optional) Wifi antenna *1
LAN 1000M B/T antenna *1
WiFi 2.4G/5G Environment
B/T 4 Operating temperature -10℃~60℃
External Connectors USB3.0*2,USB2.0,RJ45*2,VGA*1,HDMI *1,DC12V*1,DC9-36V*1(Optional),COM*2,LINE OUT*1,Wifi antenna*1,B/T antenna*1 Operating humidity 10%~90% RH Non-Condensing
Warranty Storage temperature -20℃~70℃
Warranty 1 year Storage humidity 10%~90% RH Non-Condensing
