11.6 inch VESA Mount Industrial Monitor

Size:10.1”~21.5”

VESA Mount is made of aluminum alloy and provides flexible viewing angles. It has good earthquake resistance and impact resistance, and can adapt to harsh environments.We sincerely recommend it for artificial intelligence terminals, smart city, smart medical terminals,and smart industry use



Quick Details:
Panel size 11.6″ Active Area 256.32(W)×144.18(H) mm
Resolution 1920*1080 Viewing Angle 89/89/89/89(Typ.)(CR≥10)
Touch Type Capacitive(G+G) Brightness 280cd/m2
Material Aluminum Alloy IP Grade Front IP65



Product Details

Features:

  1. 1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
  2. 2.Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, crrosion resistance, excellent performance of heat dissipation.
  3. 3.Industrial LCD panel, wide viewing angle, high nits, true color.
  4. 4.Adopt multi-points PCAP touch panel, high sensitive and fast-response.
  5. 5.High performance mainboard, 7×24 continuous operation.
  6. 6.Interfaces:HDMI, VGA, DVI-D, Audio-in,Earphone-out.
  7. 7.Wide temperature range: operating: -10 to 60°C, storage: -20 to 70°C.
  8. 8.Ultra-thin front bezel 3mm, ideal for embedded mounting.



Main parameters Touch parameters
Model TS-116MCBK Touch Types Capacitive(G+G)
Product type Industrial Monitor Clicks Capacitive>50 million times
Frame Aluminum Die-Casting/Black Surface hardness 7H
Brand TECHTION Touch Point 10 points
Display parameters Type of glass Chemically strengthened glass
LCD Size 11.6” Transmittance >85%
Active Area 256.32(W)×144.18(H) mm AD Board
Resolution 1920*1080 External Connectors DVI IN*1、VGA IN*1,HDMI IN*1,DC12V*1(DC24V Optional),PC Audio Input *1、Earphone Output *1,Touch USB*1
Contrast Ratio 1000:1 Power consumption
Picture Aatio 16:9 Standby power(w) ≤0.5W
Viewing Angle 89/89/89/89(Typ.)(CR≥10) Power consumption(w) ≤15W
Response Time 18 ms Supply Voltage(v) DC12V/DC9-36V(Optional)
Backlight Type E-LED Audio output power 4Ω*2W
Brightness 280cd/m2 Dimensions
Life span 50000H Packing Size (mm) TBD

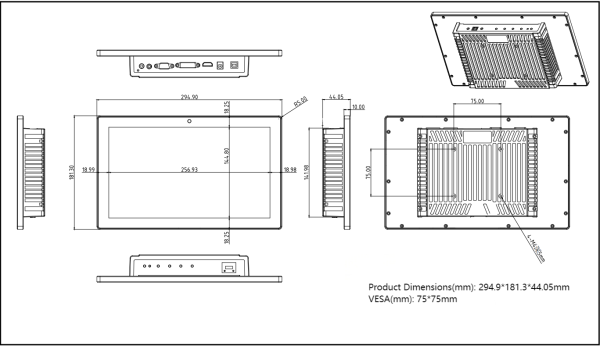

Protection IP65 (front screen) Product Dimensions(mm) 294.9*181.3*44.05mm
Accessories NW(kg) 3.75kg
Power Cable 1 (AC 100-240V  50/60Hz) GW(kg) TBD
Power adapter 1  (12V4A) VESA(mm) 75*75mm
HDMI Cable 1 Installation Wall Mounted /Hanging/Desktop
Touch USB Cable 1 Environment
VGA Cable(Optional) 1 Operating temperature -10℃~60℃
Wall Mount(Optional) 1 Operating humidity 10%~80% RH Non-Condensing
Warranty Storage temperature -20℃~70℃
Warranty 1 year Storage humidity 10%~90% RH Non-Condensing
