12.1 inch Intelligent X86 Panel PC
Size:10.1”~21.5”
Industrial X86 Panel PC with 3mm thin front bezel excellent for embedding into cabinets and equipment. Built with industrial electronic components, effectively prevent external electromagnetic interference. Industrial X86 Panel PCs are widely used in HMI and AI artificial intelligence.
| Quick Details: | |||
| CPU | J4125 | Panel size | 12.1″ |
| DDR | 4G/8G | Brightness | 300nits |
| EMMC | SSD 128G/256G/512G | IP Grade | Front IP65 |
| Touch Type | Capacitive(G+G) | Material | Aluminum Alloy |
Features:
1.Equipped with high-speed intelligent Windows system and thin /beautiful /heat dissipation/ corrosion resistance.
2.The whole machine is fully enclosed and fanless design with IP65 dustproof and waterproof standard .
3.Supports portrait and landscape display modes and can continuous operation 24 hours a day.
4.The whole machine is made of aluminum alloy and is die-cast in one piece.
5.It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
6.Supports RTC real-time clock, scheduled power on and off, network wake-up, and serial port centralized control.
7.Applications: artificial intelligence terminals, self-service terminals, smart medical terminals,smart industry etc.
| Main parameters | Touch parameters | |||
| Model | TS-121PCWK | Touch Types | Capacitive(G+G) | |
| Product type | Intelligent X86 Panel PC | Clicks | Capacitive＞50 million times | |
| Frame | Aluminum Die-Casting/Black | Surface hardness | 7H | |
| Brand | TECHTION | Touch Point | 10 points | |
| Display parameters | Type of glass | Chemically strengthened glass | ||
| LCD Size | 12.1” | Transmittance | ＞85% | |
| Active Area | 261.12(W)×163.2(H) | Power consumption | ||
| Resolution | 1280*800 | Standby power（w） | ≤0.5W | |
| Contrast Ratio | 700:1 | Power consumption（w） | ≤20W | |
| Picture Aatio | 16:10 | Supply Voltage（v） | DC12V/DC9-36V(Optional） | |
| Viewing Angle | 90/90/90/90(Typ.)(CR≥10) | Audio output power | 4Ω*2W | |
| Response Time | 30 ms | Dimensions | ||
| Backlight Type | E-LED | Packing Size (mm) | 396*345*125mm | |

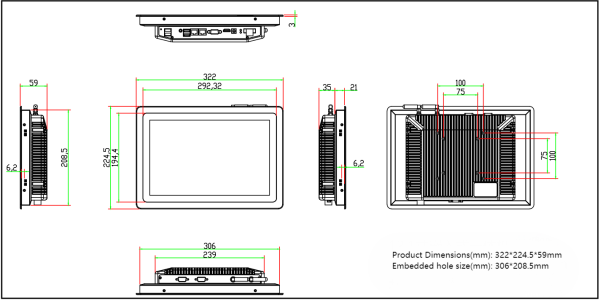

| Brightness | 300cd/m2 | Product Dimensions(mm) | 322*224.5*59mm | |
| Life span | 50000H | NW(kg) | 3.05kg | |
| Protection | IP65 (front screen) | GW(kg) | 3.95kg | |
| X86 solution | Opening size(mm) | 306*208.5mm | ||
| CHIP | J4125 | Installation | Embedded | |
| CPU | Integrated Intel®Celeron J4125 @2.0GHz Quad-Core | Accessories | ||
| GPU | Integrated Intel®UHD Graphics 600 | Power Cable | *1 (AC 100-240V 50/60Hz) | |
| DDR4 | 4G/8G | Power adapter | *1 (12V5A) | |
| EMMC | SSD 128G/256G/512G | Fixed part | Recessed clip*4，PM4x30 screw*4 | |
| OS | Windows 10（Windows 11/Linux optional） | Wifi antenna | *1 | |
| LAN | 1000M | B/T antenna | *1 | |
| WiFi | 2.4G/5G | Environment | ||
| B/T | 4 | Operating temperature | -10℃~60℃ | |
| External Connectors | USB3.0*2,USB2.0,RJ45*2,VGA*1,HDMI *1,DC12V*1,DC9-36V*1(Optional),COM*2,LINE OUT*1,Wifi antenna*1,B/T antenna*1 | Operating humidity | 10%～90% RH Non-Condensing | |
| Warranty | Storage temperature | -20℃~70℃ | ||
| Warranty | 1 year | Storage humidity | 10%~90% RH Non-Condensing | |
