13.3 inch 3mm Front Bezel Industrial Android Panel PC
Size:10.1”~21.5”
Industrial Android tablet PC with 3mm thin front bezel excellent for embedding into cabinets and equipment. Built with industrial electronic components, effectively prevent external electromagnetic interference.
| Quick Details: | |||
| CPU | RK3568 | DDR | 2G/4G |
| EMMC | 16G/32G/64G | Panel size | 13.3″ |
| Touch Type | Capacitive(G+G) | Brightness | 300cd/m2 |
| Material | Aluminum Alloy | IP Grade | Front IP65 |
Product Details
Features:
- 1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
- 2. Full aluminim alloy enclosure with paint spraying and dull polish,dustproof,anti-EMI, crrosion resistance, excellent performance of heat dissipation.
- 3. Industrial LCD panel, wide viewing angle, high nits, true color.
- 4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 3mm tempered glass for vandalproof.
- 5. High performance motherboard, 7×24 continuous operation.
- 6. With wifi, bluetooth.Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
| Display parameters | Touch parameters | |||
| LCD Size | 13.3” | Touch Types | Capacitive(G+G) | |
| Active Area | 293.76(W)×165.24(H) mm | Clicks | Capacitive＞50 million times | |
| Resolution | 1920*1080 | Surface hardness | 7H | |
| Contrast Ratio | 800:1 | Touch Point | 10 points | |
| Picture Aatio | 16:9 | Type of glass | Chemically strengthened glass | |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Transmittance | ＞85% | |
| Response Time | 18 ms | Power consumption | ||
| Backlight Type | E-LED | Standby power（w） | ≤0.5W | |
| Brightness | 300cd/m2 | Power consumption（w） | ≤20W | |
| Life span | 50000H | Supply Voltage（v） | DC12V/DC9-36V(Optional） | |
| Protection | IP65 (front screen) | Audio output power | 4Ω*2W | |
| Android solution | Dimensions | |||
| Chip | RK3568 | Packing Size (mm) | 448*326*125mm | |

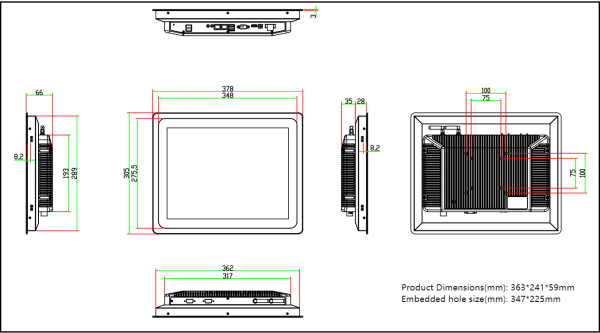

| CPU | Cortex-A53*4 @2.0GHz | Product Dimensions(mm) | 363*241*59mm | |
| GPU | Mali-G52 | NW(kg) | 3.75kg | |
| NPU | 1T | GW(kg) | 4.8kg | |
| DDR | 2G/4G | Opening size(mm) | 347*225mm | |
| EMMC | 16G/32G/64G | Installation | Embedded | |
| OS | Android 11.0 | Environment | ||
| LAN | 10/100/1000M | Operating temperature | -10℃~60℃ | |
| WiFi | 2.4G | Operating humidity | 10%～90% RH Non-Condensing | |
| B/T | 4.2 | Storage temperature | -20℃~70℃ | |
| System upgrade | TF card、USB | Storage humidity | 10%~90% RH Non-Condensing | |
| Port parameters | Accessories | |||
| External Connectors | RJ45*1, EARPHONE*1, HDMI*1, USB2.0*2 (OTG/HOST, RS232*2,DC *1, TF Card *1, RS422 /RS485 (Optional） | Power Cable | 1 (AC 100-240V 50/60Hz) | |
| Graph Supported Format | Power adapter | 1 (12V4A) | ||
| Video format | mp4, mkv, wmv, mov, flv3 | Fixed part | Recessed clip*4, PM4x30 screw*4 | |
| Picture format | BMP, JPEG, PNG, GIF | Warranty | 1 year warranty | |
