15 inch VESA Mount Industrial Monitor
Size:10.1”~21.5”
VESA Mount is made of aluminum alloy and provides flexible viewing angles. It has good earthquake resistance and impact resistance, and can adapt to harsh environments.We sincerely recommend it for artificial intelligence terminals, smart city, smart medical terminals,and smart industry use.
Quick Details: | |||
Panel size | 15″ | Active Area | 304.128(W) × 228.096(H)mm |
Resolution | 1024*768 | Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Touch Type | Capacitive(G+G) | Brightness | 350cd/m2 |
Material | Aluminum Alloy | IP Grade | Front IP65 |
Product Details
Features:
- 1.Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
- 2.Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, crrosion resistance, excellent performance of heat dissipation.
- 3.Industrial LCD panel, wide viewing angle, high nits, true color.
- 4.Adopt multi-points PCAP touch panel, high sensitive and fast-response.
- 5.High performance mainboard, 7×24 continuous operation.
- 6.Interfaces:HDMI, VGA, DVI-D, Audio-in,Earphone-out.
- 7.Wide temperature range: operating: -10 to 60°C, storage: -20 to 70°C.
- 8.Ultra-thin front bezel 3mm, ideal for embedded mounting.
Main parameters | Touch parameters | |||
Model | TS-150MCBK | Touch Types | Capacitive(G+G) | |
Product type | Industrial Monitor | Clicks | Capacitive>50 million times | |
Frame | Aluminum Die-Casting/Black | Surface hardness | 7H | |
Brand | TECHTION | Touch Point | 10 points | |
Display parameters | Type of glass | Chemically strengthened glass | ||
LCD Size | 15” | Transmittance | >85% | |
Active Area | 304.128(W) × 228.096(H)mm | AD Board | ||
Resolution | 1024*768 | External Connectors | DVI IN*1、VGA IN*1,HDMI IN*1,DC12V*1(DC24V Optional),PC Audio Input *1、Earphone Output *1,Touch USB*1 | |
Contrast Ratio | 1000:1 | Power consumption | ||
Picture Aatio | 4:3 | Standby power(w) | ≤0.5W | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Power consumption(w) | ≤15W | |
Response Time | 18 ms | Supply Voltage(v) | DC12V/DC9-36V(Optional) | |
Backlight Type | E-LED | Audio output power | 4Ω*2W | |
Brightness | 350cd/m2 | Dimensions | ||
Life span | 50000H | Packing Size (mm) | 549*473*190mm | |

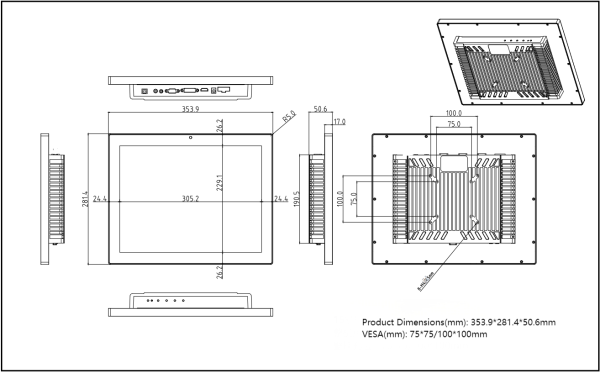

Protection | IP65 (front screen) | Product Dimensions(mm) | 353.9*281.4*50.6mm | |
Accessories | NW(kg) | 3.75kg | ||
Power Cable | 1 (AC 100-240V 50/60Hz) | GW(kg) | TBD | |
Power adapter | 1 (12V4A) | VESA(mm) | 75*75/100*100mm | |
HDMI Cable | 1 | Installation | Wall Mounted /Hanging/Desktop | |
Touch USB Cable | 1 | Environment | ||
VGA Cable(Optional) | 1 | Operating temperature | -10℃~60℃ | |
Wall Mount(Optional) | 1 | Operating humidity | 10%~80% RH Non-Condensing | |
Warranty | Storage temperature | -20℃~70℃ | ||
Warranty | 1 year | Storage humidity | 10%~90% RH Non-Condensing |
