21.5 inch Intelligent Android Panel PC
Size:10.1”~21.5”
Industrial Android tablet PC with 3mm thin front bezel excellent for embedding into cabinets and equipment. Built with industrial electronic components, effectively prevent external electromagnetic interference.
| Quick Details: | |||
| CPU | RK3568 | DDR | 2G/4G |
| EMMC | 16G/32G/64G | Panel size | 21.5″ |
| Touch Type | Capacitive(G+G) | Brightness | ≥300cd/m2 (typ) |
| Material | Aluminum Alloy | IP Grade | Front IP65 |
Features:
1.16:9 wide screen, equipped with high-speed intelligent Android system and thin /beautiful /heat dissipation/ corrosion resistance.
2.The whole machine is fully enclosed and fanless design with IP65 dustproof and waterproof standard .
3.Supports portrait and landscape display modes and can continuous operation 24 hours a day.
4.The whole machine is made of aluminum alloy and is die-cast in one piece.
5.It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
6.Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
7.Applications: artificial intelligence terminals, self-service terminals, smart medical terminals,smart industry etc.
| Display parameters | Touch parameters | |||
| LCD Size | 21.5” | Touch Types | Capacitive(G+G) | |
| Active Area | 476.064(W)×267.786(H) mm | Clicks | Capacitive＞50 million times | |
| Resolution | 1920*1080 | Surface hardness | 7H | |
| Contrast Ratio | 1000:1 | Touch Point | 10 points | |
| Picture Aatio | 16:9 | Type of glass | Chemically strengthened glass | |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Transmittance | ＞85% | |
| Response Time | 18 ms | Power consumption | ||
| Backlight Type | E-LED | Standby power（w） | ≤0.5W | |
| Brightness | ≥300cd/m2 (typ) | Power consumption（w） | ≤30W | |
| Life span | 50000H | Supply Voltage（v） | DC12V/DC9-36V(Optional） | |
| Protection | IP65 (front screen) | Audio output power | 4Ω*2W | |
| Android solution | Dimensions | |||
| Chip | RK3568 | Packing Size (mm) | 636*398*118mm | |

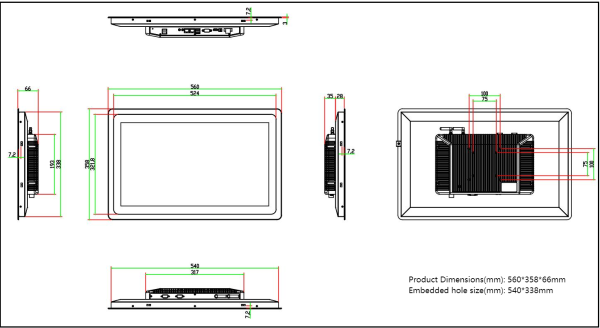

| CPU | Cortex-A53*4@2.0GHz | Product Dimensions(mm) | 560*358*66mm | |
| GPU | Mali-G52 | NW(kg) | 6.4kg | |
| NPU | 1T | GW(kg) | 7.75kg | |
| DDR | 2G/4G | Opening size(mm) | 540*338mm | |
| EMMC | 16G/32G/64G | Installation | Embedded | |
| OS | Android 11.0 | Environment | ||
| LAN | 10/100/1000M | Operating temperature | -10℃~60℃ | |
| WiFi | 2.4G | Operating humidity | 10%～90% RH Non-Condensing | |
| B/T | 4.2 | Storage temperature | -20℃~70℃ | |
| System upgrade | TF card、USB | Storage humidity | 10%~90% RH Non-Condensing | |
| Port parameters | Accessories | |||
| External Connectors | RJ45*1, EARPHONE*1, HDMI*1, USB2.0*2 (OTG/HOST, RS232*2,DC *1, TF Card *1, RS422 /RS485 (Optional） | Power Cable | 1 (AC 100-240V 50/60Hz) | |
| Graph Supported Format | Power adapter | 1 (12V4A) | ||
| Video format | mp4, mkv, wmv, mov, flv3 | Fixed part | Recessed clip*4, PM4x30 screw*4 | |
| Picture format | BMP, JPEG, PNG, GIF | Warranty | 1 year warranty | |
