7 inch 3mm Front Bezel Industrial Android Panel PC
Size:7″~8″
Industrial Android tablet PC with a 3mm thin front bezel excellent for embedding into cabinets and equipment. Built with industrial electronic components, effectively prevent external electromagnetic interference.
| Quick Details: | |||
| CPU | RK3568 | RAM | 2G/4G |
| EMMC | 16G/32G/64G | Panel size | 7″ |
| Touch Type | Capacitive/Resistive | Brightness | 350nits |
| Material | Aluminum Alloy | IP Grade | Front IP65 |
Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. The whole machine is made of aluminum alloy and sheet metal.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 3mm tempered glass for vandalproof.
5. High performance motherboard, 7×24 continuous operation.
6. Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.
| Display parameters | Touch parameters | |||||||
| LCD Size | 7” | Touch Types | PCAP(G+G) | |||||
| Active Area | 154.2144(H) x 85.92(V) | Clicks | Capacitive＞50 million times | |||||
| Resolution | 1024*600 | Surface hardness | 7H | |||||
| Contrast Ratio | 500:1 | Touch Point | 10 points | |||||
| Picture Aatio | 16:9 | Type of glass | Chemically strengthened glass | |||||
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Transmittance | ＞85% | |||||
| Response Time | 8.5ms(G to G) | Power consumption | ||||||
| Backlight Type | E-LED | Standby power（w） | ≤0.5W | |||||
| Brightness | 350cd/m2 | Power consumption（w） | ≤12W | |||||
| Life span | 50000H | Supply Voltage（v） | DC12V/DC9-36V(Optional） | |||||
| Protection Level | IP65 (front screen) | Audio output power | 4Ω*2W | |||||
| Android solution | Dimensions | |||||||
| Chip | RK3568（Optional RK3399 & RK3588) | Packing Size (mm) | 362*280.5*125mm | |||||

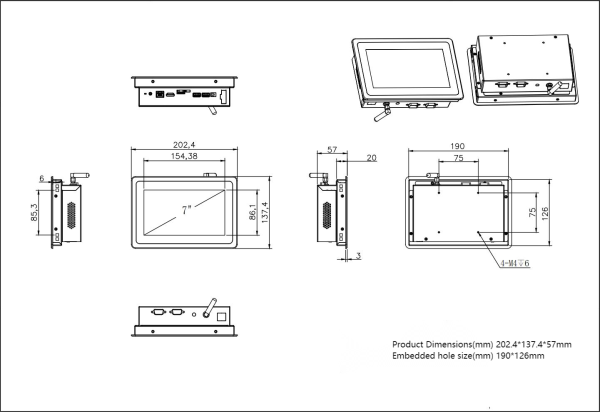

| CPU | Cortex-A53*4@2.0GHz | Product Dimensions(mm) | 202.4*137.4*57mm | |||||
| GPU | Mali-G52 | Embedded hole size(mm) | 190*126mm | |||||
| NPU | 1T | VESA mounting | 75*75mm | |||||
| DDR | 2G/4G | Environment | ||||||
| EMMC | 16G/32G/64G | Operating temperature | -10℃~60℃ | |||||
| OS | Android 11.0 | Operating humidity | 10%～80% RH Non-Condensing | |||||
| LAN | 10/100/1000M | Storage temperature | -20℃~70℃ | |||||
| WiFi | 2.4G | Storage humidity | 10%~90% RH Non-Condensing | |||||
| B/T | 4.2 | Other | ||||||
| System upgrade | TF card, USB | Installation | embedded mounting screws（Standard） | |||||
| Port parameters | wall mounting brackets, desk stand holder（optional) | |||||||
| External Connectors | RJ45*1, EARPHONE*1, HDMI*1, USB2.0*2(OTG/HOST), RS232*2, DC *1, TF Card *1, RS422 /RS485 (Optional） |
Accessories | Power adapter*1 (12V4A), Recessed clip*4, Power Cable*1 (AC 100-240V50/60Hz), warranty card*1 |
|||||
| Graph Supported Format | Customization (optional) | 3G, 4G, Webcam, RFID reader etc. | ||||||
| Video format | MP4, MKV, WMV, MOV, FLV3 | Warranty | 1 year warranty | |||||
| Picture format | BMP, JPEG, PNG, GIF | Certificate | CE, FCC, RoHS | |||||
