7 inch 3mm Front Bezel Industrial Monitor with Multi-touch

Size:7”~8”
Industrial Monitor built with an ultra-thin 3mm front bezel, perfect for the embedded mount in the industrial automation application, and its IP65 dust/water-proof protection, wide temperature operation, anti-shock, and anti-electromagnetic interference offer a reliable guarantee for heavy-duty applications.



Quick Details:
Panel Size 7″ Brightness 500nits
Touch Type Capacitive Interface DVI,HDMI,VGA
Viewing Angle 85/85/85/85(Typ.)(CR>10) IP Rating Front IP65
Material Aluminum Alloy Power Supply DC12V,AC100-240V
Product Details

Features:
1.Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2.Industrial LCD panel, wide viewing angle, high nits, true color.
3.Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4.High performance mainboard, 7×24 continuous operation.
5.Interfaces:HDMI, VGA, DVI-D, Audio-in,Earphone-out.
6.Wide temperature range: operating: -10 to 60°C, storage: -20 to 70°C.
7.Ultra-thin front bezel 3mm, ideal for embedded mounting.



Main parameters Touch parameters
Model TS-070MCWK Touch Types Capacitive(G+G)
Product type Industrial Monitor Clicks Capacitive>50 million times
Frame Aluminum frame +Sheet metal back shell /Black Surface hardness 7H
Brand TECHTION Touch Point 10 points
Display parameters Type of glass Chemically strengthened glass
LCD Size 7” Transmittance >85%
Active Area 154.2144(H)x85.92(V) Power consumption
Resolution 1024*600 Standby power(w) ≤0.5W
Contrast Ratio 500:1 Power consumption(w) ≤10W
Picture Aatio 16:9 Supply Voltage(v) DC12V/DC9-36V(Optional)
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Audio output power 4Ω*2W
Response Time 8.5ms(G to G) Dimensions
Backlight Type E-LED Packing Size (mm) TBD

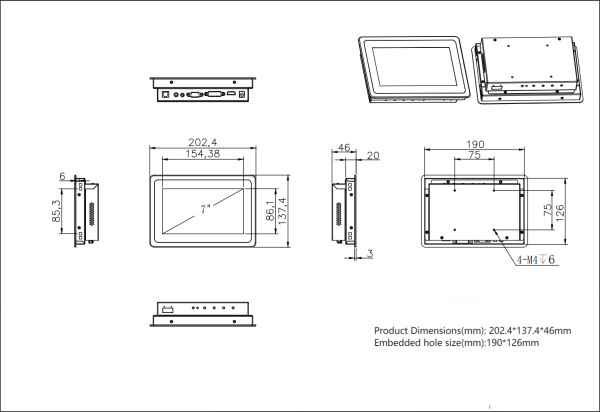

Brightness 350cd/m2 Product Dimensions(mm) 202.4*137.4*46mm
Life span 50000H NW(kg) TBD
Protection IP65 (front screen) GW(kg) TBD
AD Board Opening size(mm) 190*126mm
External Connectors DVI IN*1、VGA IN*1,HDMI IN*1,DC12V*1(DC24V Optional),PC Audio Input *1、Earphone Output *1,Touch USB*1 Installation Embedded
Environment Accessories
Operating temperature -10℃~60℃ Power Cable 1 (AC 100-240V  50/60Hz)
Operating humidity 10%~80% RH Non-Condensing Power adapter 1  (12V4A)
Storage temperature -20℃~70℃ HDMI Cable 1
Storage humidity 10%~90% RH Non-Condensing Touch USB Cable 1
Warranty VGA Cable Optional
Warranty 1 year Fixed part Recessed clip*4,PM4x30 screw*4
