TS-080PCBX Stainless Steel X86 Panel PC ,Rugged Industrial-Grade Solution

We would like to introduce our TS-080PCBX Stainless Steel X86 Panel PC, a rugged industrial-grade solution specifically designed for harsh and hygiene-critical environments such as food processing, pharmaceutical production, marine applications, water treatment, and chemical plants.

Key Highlights:

Industrial Stainless Steel Design

Constructed with SUS304 stainless steel, the unit offers excellent resistance to corrosion, salt spray, impact, and wear, while remaining easy to clean—ideal for environments with strict hygiene requirements.

IP67 Fully Sealed & Fanless Architecture

The fully enclosed, fanless design ensures IP67 dustproof and waterproof protection, enabling reliable 24/7 continuous operation with silent, energy-efficient performance.

High-Performance X86 Platform

Powered by an Intel® Celeron J6412 quad-core processor and running Windows 10 (Windows 11 / Linux optional), the system delivers stable and responsive performance for industrial HMI and control applications.

8” 4:3 Industrial Display with Capacitive Touch

Featuring a 1024×768 resolution, chemically strengthened glass, and 10-point capacitive touch, the panel supports both portrait and landscape modes for flexible installation.

Wide Operating Conditions

Designed for extreme environments with an operating temperature range of -20°C to +70°C and high vibration and shock resistance.

Industrial Interfaces & Expansion

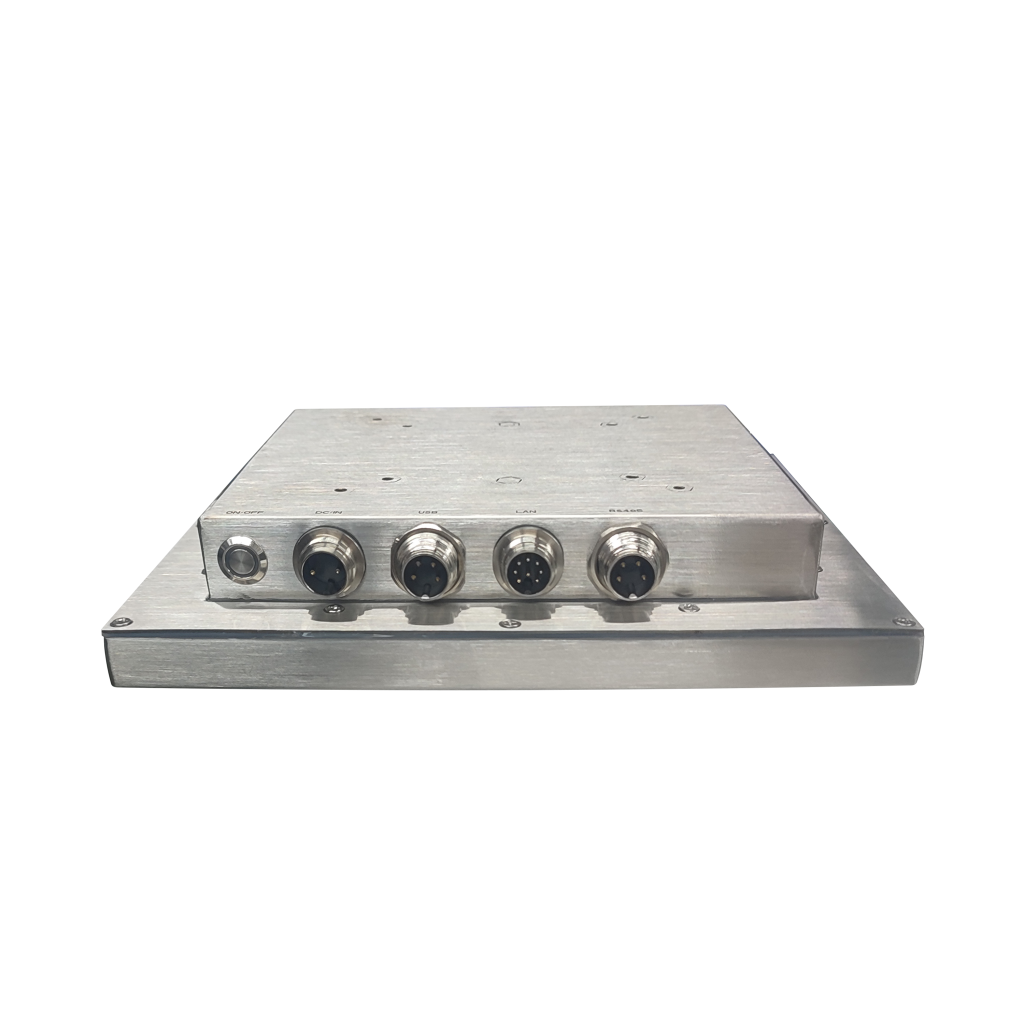

Standard interfaces include USB, Gigabit LAN, RS485, with optional RS232, HDMI, VGA, WiFi / WiFi 6, and Bluetooth, using aviation-grade connectors to ensure secure and reliable connections.

Flexible Installation Options

Supports wall-mounted, embedded, desktop, and hanging installations, with VESA compatibility.

Basic Parameters：

Model : TS-080PCBX
Product Type : Stainless Steel X86 Panel PC
LCD Size : 8”
Response Time : 25 ms
Backlight Type : E-LED
LCD Brightness : ≤300 cd/m2 (Typ)
Life Span : 50000H
IP Rating : IP67
Touch Types : Capacitive(G+G) EETI IC
Transmittance : ＞87%
Interface : USB*1，LAN*1，DC IN*1，RS485*1
Other Interfaces（Optional) : VGA/HDMI/RS232
OS : Windows 10（Windows11/Linux optional）
Power Consumption（w） : ≤25W
Installation : Wall Mounted /Hanging/Desktop
Operating Temperature : -20℃~70℃

If you would like a datasheet, quotation, customization options, or sample evaluation, please feel free to contact us. We would be happy to support your project requirements.
