CHLCD Reshaping Outdoor and Commercial Display: From Energy-Intensive Competition to Efficiency-Driven Innovation

The global commercial display and outdoor advertising industry is undergoing a significant transformation.

While conventional high-brightness LCD and LED technologies continue to compete by increasing luminance to overcome ambient light, a new reflective display technology—CHLCD (Cholesteric Liquid Crystal Display)—is quietly redefining the rules.

Rather than relying on higher energy consumption to improve visibility, CHLCD leverages its optical structure to utilize ambient light directly, achieving a fundamental leap in display efficiency. This shift is elevating CHLCD from being perceived as “a form of e-paper” to becoming a next-generation solution for outdoor display applications.

From “Emitting Light” to “Using Light”: A Fundamental Shift

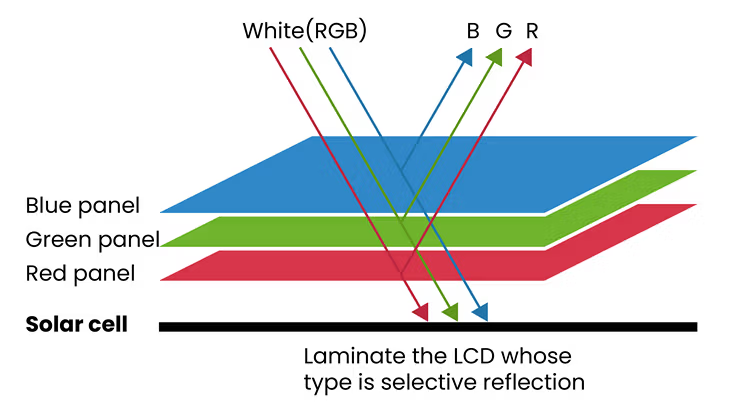

CHLCD is a reflective full-color display technology that uses the helical structure of cholesteric liquid crystals to selectively reflect specific wavelengths of ambient light, eliminating the need for a backlight.

This mechanism brings two key advantages:

No backlight required → ultra-low power consumption
Ambient light dependent → better visibility under strong sunlight

In addition, CHLCD features bistability, meaning:

The displayed image can be maintained even without power, with energy consumed only during content updates.

This makes CHLCD not just a display technology, but a new energy paradigm for visual communication.

Redefining Outdoor Visibility: Not Brighter, but Smarter

Traditional outdoor displays follow a long-standing formula:

Visibility = Higher brightness = Higher energy consumption

However, this model is reaching its limits:

Increased brightness leads to higher power consumption and thermal challenges
Strong sunlight still reduces perceived contrast
Light pollution becomes an issue at night
Maintenance and operational costs continue to rise

CHLCD offers a fundamentally different approach:

(1) Sunlight Becomes an Advantage, Not a Limitation

Under strong ambient light:

LCD/LED: Images appear washed out
CHLCD: Reflected light increases → higher contrast

👉 Delivering a unique advantage:

the brighter the environment, the clearer the display

(2) From Continuous Power Consumption to On-Demand Energy Use

Conventional displays: Require constant power, even for static images
CHLCD: Consumes power only when updating content

👉 Power consumption can be reduced by up to 80–90%

This makes CHLCD highly suitable for large-scale deployments such as smart cities and retail networks.

(3) From Display Device to Infrastructure-Level Solution

CHLCD offers:

Wide operating temperature range (-30°C to 80°C)
Low thermal load due to no backlight
High reliability for long-term operation

These characteristics position it closer to a long-life infrastructure component, rather than a conventional display device.

Beyond E-Paper: A New Generation of Reflective Displays

Although often categorized as e-paper, CHLCD overcomes several of its key limitations:

(1) Full-Color Capability

With RGB multi-layer liquid crystal structures:

Capable of displaying up to 16.7 million colors
Color performance comparable to LCD/LED

👉 Breaking the traditional limitations of e-paper color rendering

(2) Optimized Information Readability for Public Transportation

High color accuracy improves clarity of transit information

Paper-like display ensures comfortable, glare-free viewing

👉 Enabling clearer communication and better passenger experience

Application Scenarios Across Smart City Ecosystems

CHLCD is rapidly being adopted across various real-world applications:

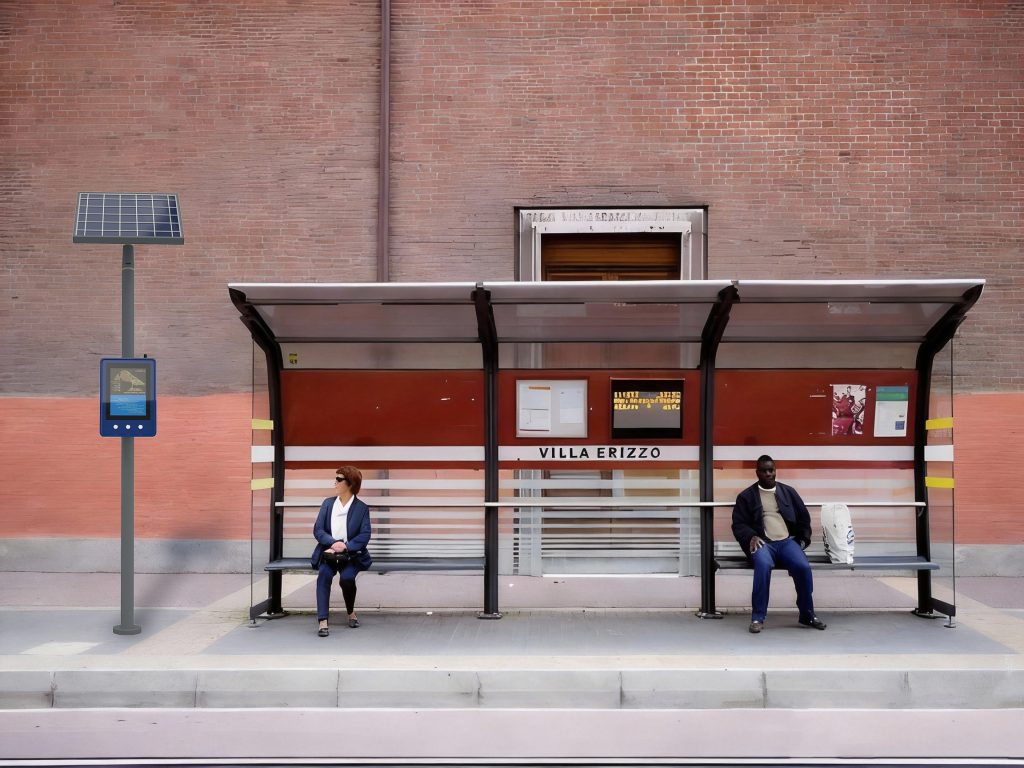

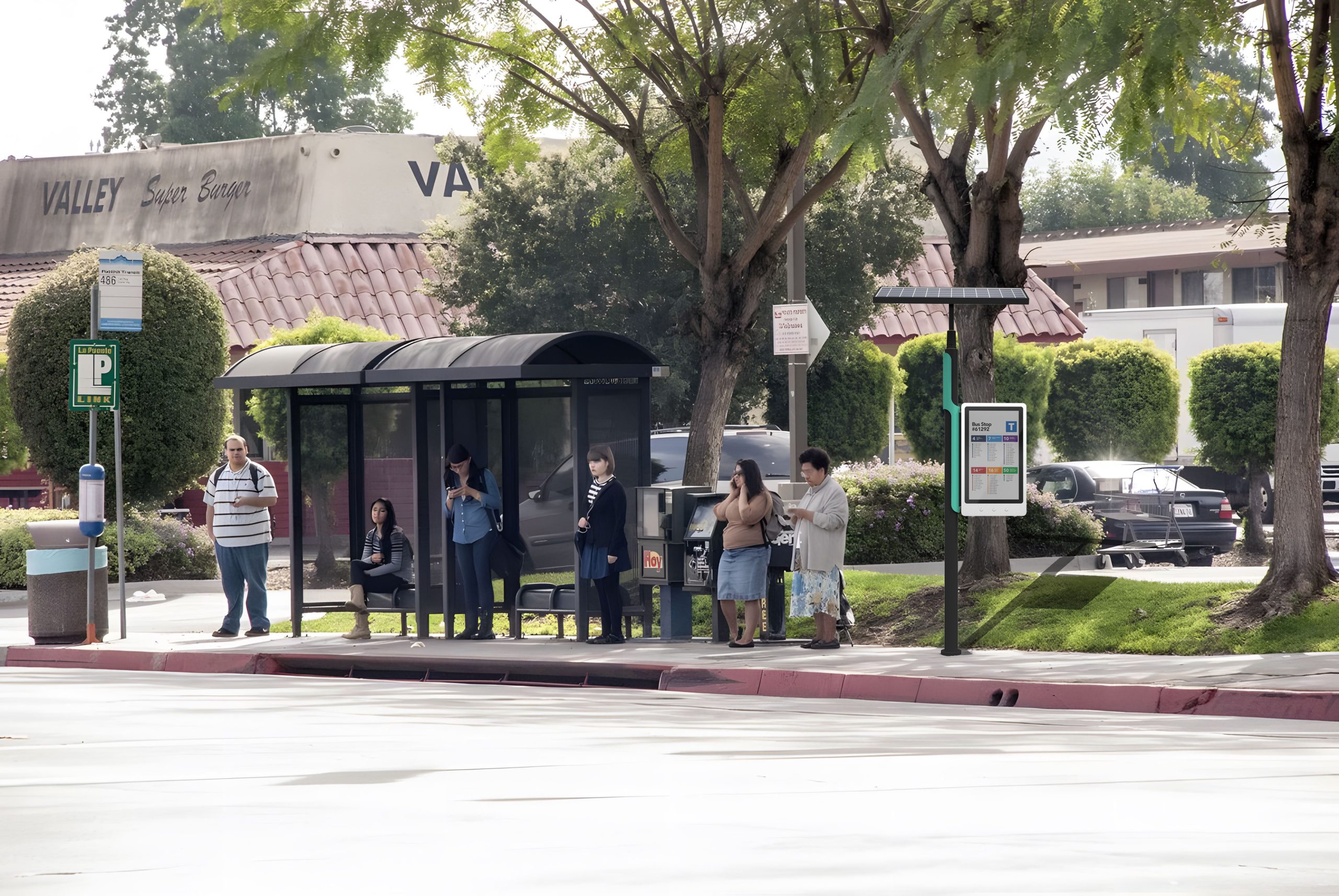

Outdoor Advertising & Public Information
Bus stops and transit signage
Outdoor advertising displays
Smart city information terminals

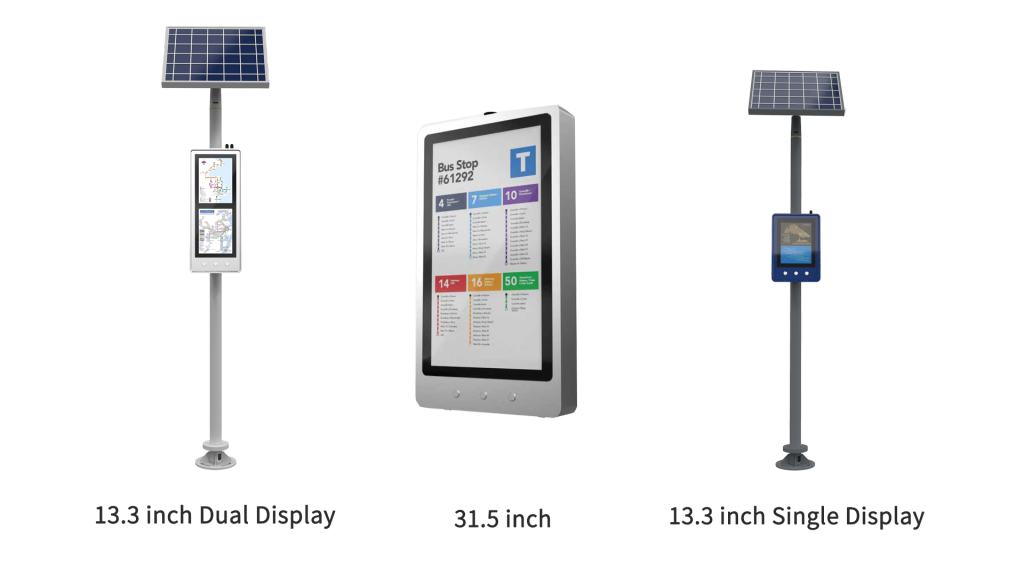

Combined with solar power, CHLCD enables:Cable-free, low-energy, self-sustaining display systems

FIDS（Flight Information Display System）
TIDS（Train Information Display System）
PIDS（Passenger Information Display）

👉 Ideal for low-maintenance, widely distributed deployments

CHLCD as a Representative of Efficiency-Driven Displays

The rise of CHLCD is not accidental—it is driven by multiple converging trends:

Increasing energy costs
ESG and sustainability initiatives
Growth of smart cities and digital signage
Transition from advertising displays to information infrastructure

As a result, the industry is shifting its focus:

From “who is brighter” to “who is more efficient.”

CHLCD represents this new direction:

Not reliant on excessive energy consumption
Not dependent on extreme brightness
But optimized through optical efficiency and structural innovation

In the future of outdoor and commercial displays, competitiveness will no longer be defined by brightness alone, but by how well a technology adapts to its environment—efficiently, sustainably, and intelligently.

CHLCD stands at the forefront of this transformation.

If you looking for a reliable outdoor display solution for public transportation or industrial & embedded applications, CHLCD offers a compelling alternative to traditional high-brightness displays.

With ultra-low power consumption, excellent sunlight readability, and long-term operational stability, our CHLCD-based solutions are designed for mission-critical and large-scale deployment environments.
