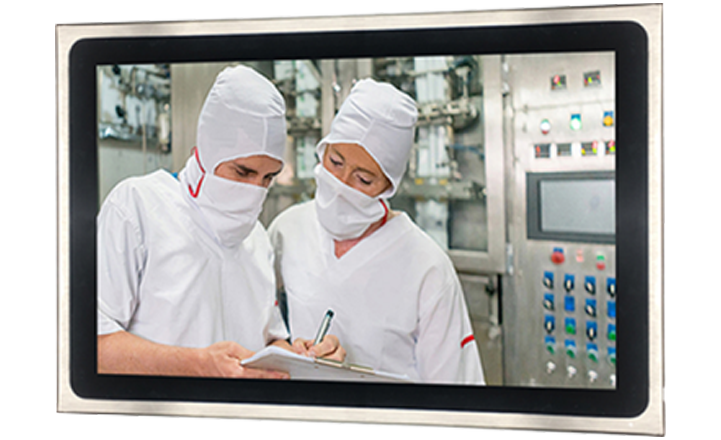

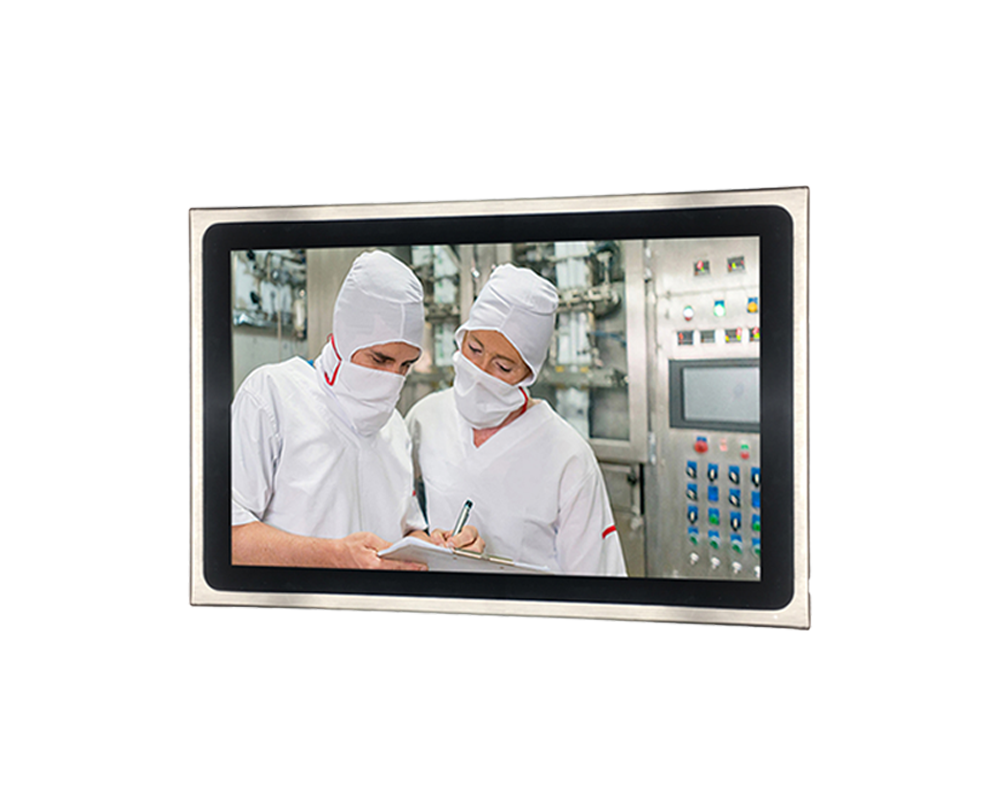

Designed for demanding outdoor environments, our Outdoor High-Brightness Full-Lamination Touch Display offers exceptional visibility, durability, and responsiveness. Featuring ultra-bright screens of up to 2,500 nits and advanced full lamination technology, these all-in-one displays ensure excellent readability under direct sunlight while minimizing glare and reflection. With an industrial-grade touch panel, rugged construction, and wide temperature adaptability, they are ideal for smart transportation systems, public kiosks, charging stations, and other outdoor intelligent terminals.

Product Finder

Submit Reset

Size Model Part Number Resolution Contrast Ratio Brightness(nits) Touch Type Mainboard Solution Power Consumption(Max) IP/IK Rating Operating Temp DataSheet
10.1" TS-101PCBX TBD 1280*800 800:1 500 CTP J4125 ≤45W IP67 -30℃~80℃
12.1" TS-121PCBX 2.01.001210032 1024*768 1000:1 ≤1000 CTP I5-6Gen ≤30W IP67 -20℃~70℃
12.1" TS-121PRBX 2.01.001210033 1024*768 1000:1 ≤1000 RTP J6412 ≤35W IP67 -20℃~70℃
13.3" TS-133PCBX 2.01.001330019 1920*1080 1000:1 ≤1000 CTP I5-6200U ≤40W IP67 -20℃~70℃
15" TS-150PCBX 2.01.001500021 1024*768 600:1 ≤1000 CTP J6412 ≤45W IP67 -20℃~70℃
15" TS-150PRBX 2.01.001500034 1024*768 600:1 ≤1000 RTP I3-7100U ≤50W IP67 -20℃~70℃
15" TS-150PRBX 2.01.001500020 1024*768 800:1 ≤1000 RTP I3-5005U ≤50W IP67 -20℃~70℃
15.6" TS-156PCBX 2.01.001560022 1920*1080 800:1 ≤1000 CTP J6412 ≤40W IP67 -20℃~70℃
17.3" TS-173MRBX 2.01.001730027 1920*1080 16:9 ≤1000 RTP NT68676UFG ≤50W IP67 0℃~70℃
18.5" TS-185MCBX 2.01.001850028 1920*1080 1000:1 ≤1500 CTP NA ≤25W IP67 -20℃~70℃
19" TS-190MRNX 2.01.001900031 1280*1024 1000:1 ≤1000 RTP NA ≤45W IP65(Front Panel) 0℃~60℃
19" TS-190MCBX 2.01.001900029 1280*1024 1000:1 ≤1000 CTP NT68676UFG ≤50W IP67 -20℃~70℃
19" TS-190PRBX 2.01.001900023 1280*1024 1000:1 ≤1000 RTP J1900 ≤50W IP67 -20℃~70℃
21.5" TS-215ARBX 2.01.002150026 1920*1080 3000:1 ≤1000 RTP RK3288 ≤45W IP67 -20℃~70℃
21.5" TS-215MRBX 2.01.002150030 1920*1080 16:9 ≤1000 RTP NA ≤50W IP67 -20℃~70℃
21.5" TS-215PCBX 2.01.002150025 1920*1080 1000:1 ≤1000 CTP J6412 ≤55W IP67 -20℃~70℃
No.1/2 Page,Total 23 Results
