17.3 inch Stainless Steel Industrial Monitor
SUS304 Stainless Steel / Corrosion Resistance / Resistive ( EETI IC) / Aviation Connector / IP67
Quick Details:
| Panel Size | 17.3″ | Brightness | 350 cd/m2 |
| Resolution | 1920*1080 | Touch Type | Resistive (air bonded) |
| Material | SUS304 Stainless steel | IP Rating | IP67 |
| Viewing Angle | 80/80/80/60(Typ.)(CR≥10) | Interface | VGA IN*1，HDMI IN *1，TOUCH USB*1，DC IN*1 |
Product Details
| Main parameters | Touch parameters | |||
| Model | TS-173MRBX | Touch Types | Resistive Touch (EETI IC) | |
| Product Type | Stainless Steel Industrial Monitor | Clicks | ≤500000 times | |
| Frame+Structure | SUS304 Stainless steel | Surface Hardness | ≥3H | |
| Display parameters | Touch Point | Single Point | ||
| LCD Size | 17.3” | Material | IOT | |
| Active Area | 381.888 (H) x 214.812 (V)mm | Transmittance | ＞87% | |
| Resolution | 1920*1080 | AD Board solution | ||
| Contrast Ratio | 600:1 | CHIP | NT68676UFG | |
| Picture Aatio | 16:9 | Interfaces | VGA IN*1，HDMI IN *1，TOUCH USB*1，DC IN*1 | |
| Viewing Angle | 80/80/80/60(Typ.)(CR≥10) | Video Input | HDMI (480i, 480p, 720p, 1080i, 1080p) | |
| Response Time | 40ms | PC-RGB (Up to 1920×1080@60Hz) | ||
| Backlight Type | E-LED | Power consumption | ||
| Life Span | 50000H | Standby Power（w） | ≤0.5W | |
| Accessories | Power Consumption（w） | ≤25W | ||
| AC Power Cable | *1 | Supply Voltage（v） | DC12V | |
| Power Adapter | *1 12V/3A (AC 100-240V 50/60Hz) | Dimensions | ||

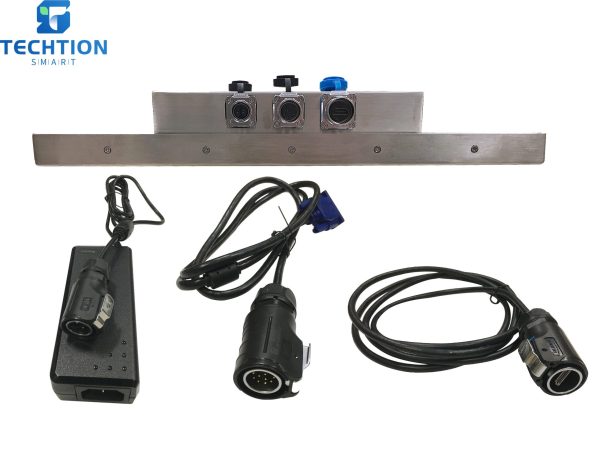

| Others | Desktop Stand*1, VGA Cable*1, HDMI Cable(optional)*1, Writing Pen*1 | Packing Size (mm) | TBD | |

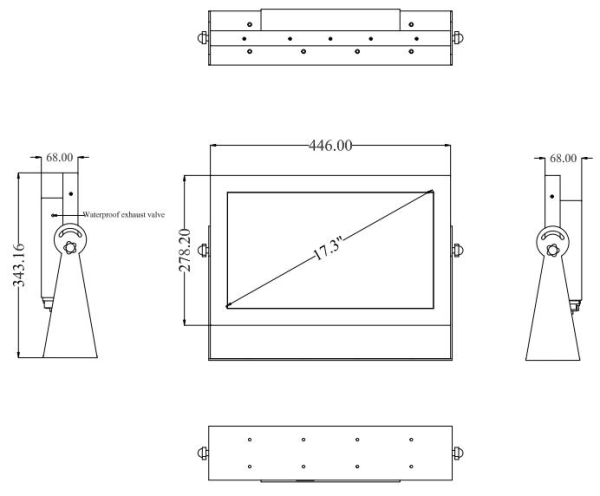

| Environment | Product Dimensions(mm) | 446.0*278.2*68mm | ||
| Operating Temperature | 0℃~70℃ | NW(kg) | 5.8kg | |
| Operating Humidity | 10%～90% RH Non-Condensing | GW(kg) | 9.8kg | |
| Storage Temperature | -20℃~70℃ | VESA(mm) | 100*100mm | |
| Storage Humidity | 10%~90% RH Non-Condensing | Installation | Wall Mounted /Hanging/Desktop | |
