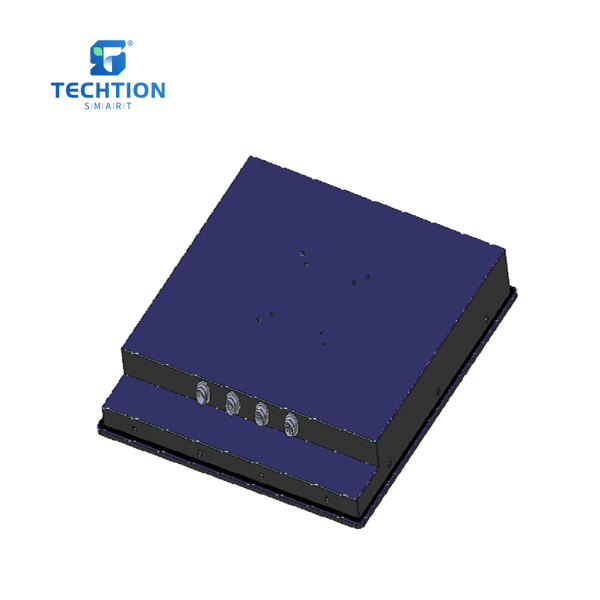

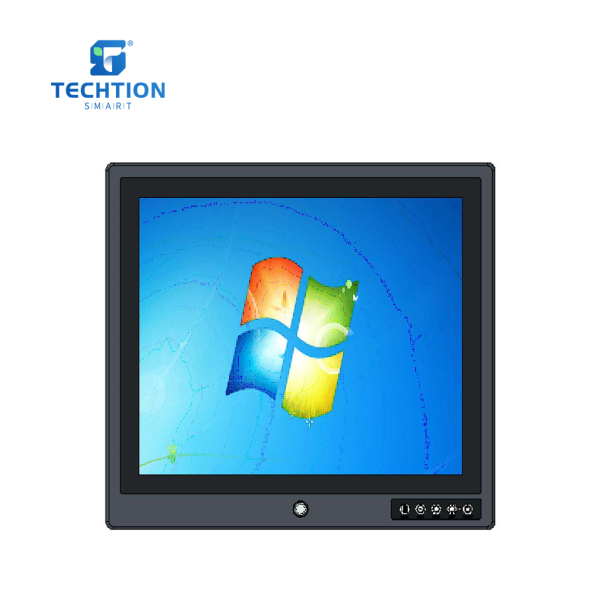

17 inch Industrial Monitor

• 4:3 Square screen, high brightness: 1500nits, resolution 1280*1024, FHD picture display.
• The whole machine is fully enclosed and fanless design, strong heat dissipation, energy saving and quiet.
• Aluminum frame and sheet metal material, IP67 dustproof and waterproof standard, all interfaces and sockets are aviation sockets.
• Continuous operation 24 hours a day.
• It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
• Applications: Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details
Main Parameters
Power consumption
Model TS-170MCBX Standby Power（w） ≤0.5W
Product Type Industrial Monitor Power Consumption（w） ≤35W
Frame+Structure Aluminum Frame + Sheet Metal Chassis Supply Voltage（v） DC12V/DC9-36V (Optional)
Brand TECHTION
Dimensions
Display Parameters
 Packing Size (mm) TBD

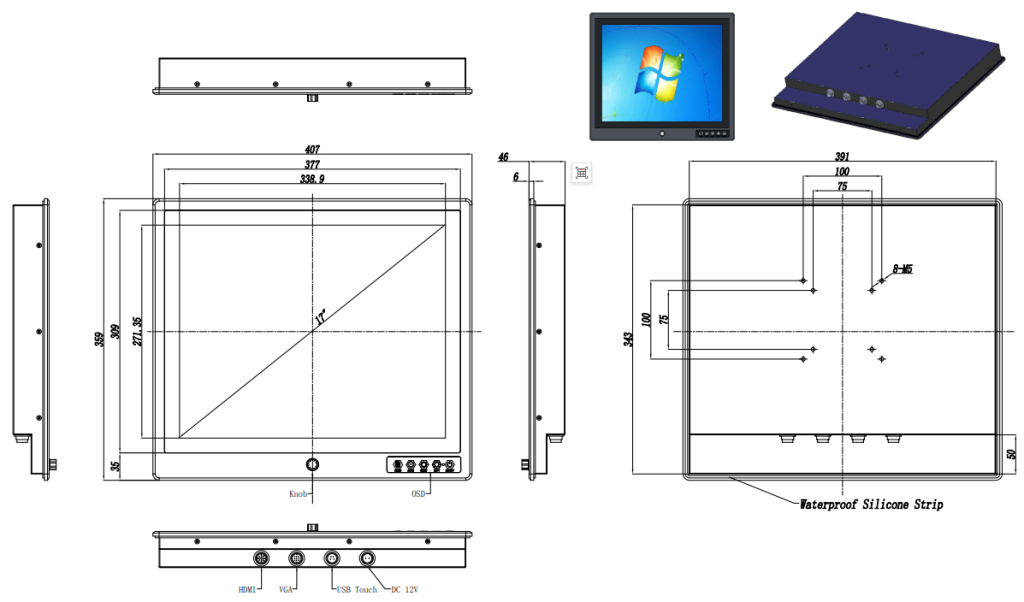

LCD Size 17” Product Dimensions(mm) 407*359*46mm
Active Area 338.9(W)×271.35(H) mm NW(kg) TBD
Resolution 1280*1024 GW(kg) TBD
Contrast Ratio 1000:1 VESA(mm) 100*100mm/75*75mm
Picture Aatio 4:3 Installation Wall Mounted /Hanging/Desktop
Viewing Angle 85/85/85/85(Typ.)(CR≥10)
Accessories
Response Time 8 ms AC Power Cable *1
Backlight Type E-LED Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
LCM Brightness ≤1500 cd/m2 (Typ) HDMI Cable *1
Life Span 50000H VGA Cable *1
IP Rating IP67 TOUCH-USB Cable *1
AD Board
Touch parameters
Interfaces VGA*1，HDMI IN *1，TOUCH USB*1，DC IN*1 Touch Types Capacitive(G+G)  EETI IC
Front Buttons MENU，AUTO，RIGH，LEFT，ON/OFF Clicks ≥50 million times
Video Input HDMI  (480i, 480p, 720p, 1080i, 1080p) PC-RGB  (Up to 1280×1024@60Hz) Surface Hardness 6H
Environment
 Touch Point 10 points
Operating Temperature -20℃~70℃ Type of Glass Chemically strengthened glass
Operating Humidity 10%～90% RH Non-Condensing Transmittance ＞87%
Storage Temperature -20℃~70℃
Storage Humidity 10%~90% RH Non-Condensing
