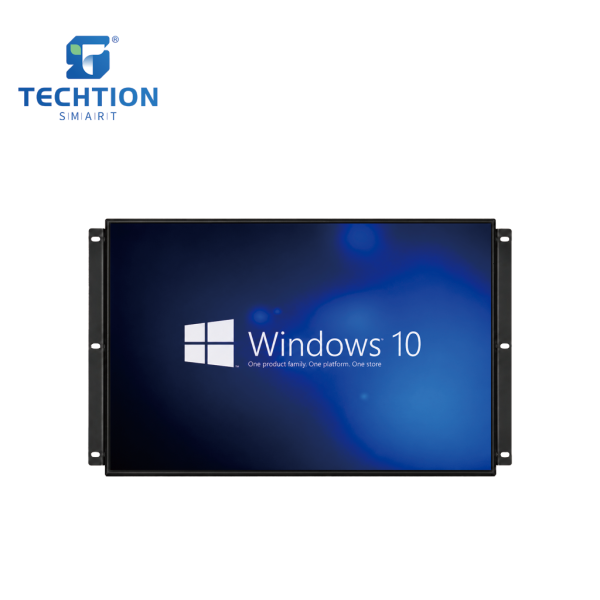

15.6″ Industrial Touch Monitor

• 16:9 Widescreen / 1920×1080 FHD / 1500nits Outdoor Readable.
• Slim and elegant design with excellent heat dissipation; 1.5mm step ensures perfect flush mounting.

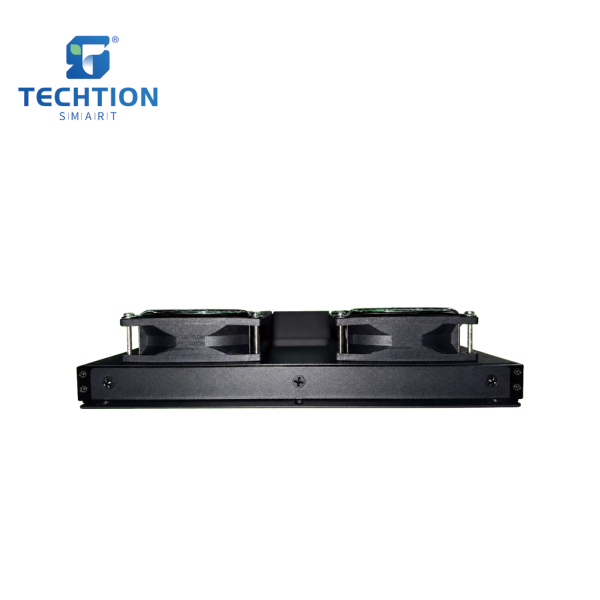

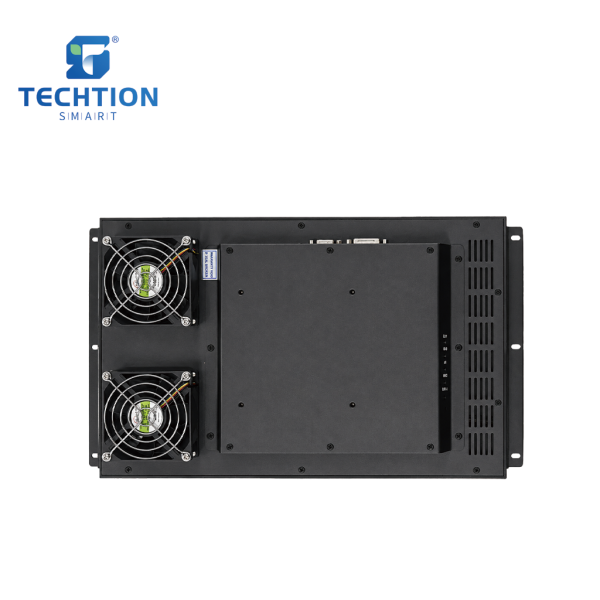

• The display unit adopts a semi-enclosed design with silent cooling fans.
• Front Panel IP65 dustproof and waterproof standard.
• Supports portrait and landscape display modes (input source).
• Continuous operation 24 hours a day.
• The unit is constructed with an aluminum frame and sheet metal housing.
• Excellent shock and vibration resistance, suitable for wide temperature ranges and harsh environments.
• Applications: artificial intelligence terminals, self-service terminals, smart medical terminals, smart industry etc.

Back PreviousNext
Product Details

Main Parameters Android solution

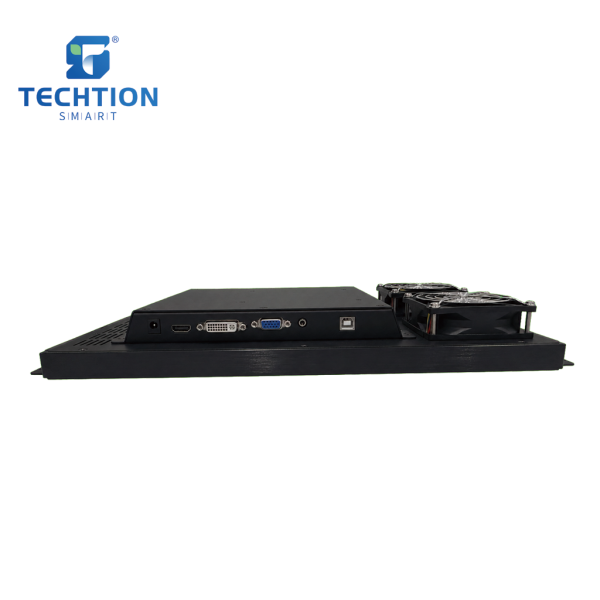

Model TS-156MCNJ I/O Ports Touch-USB/HDMI/VGA/DVI/DC IN

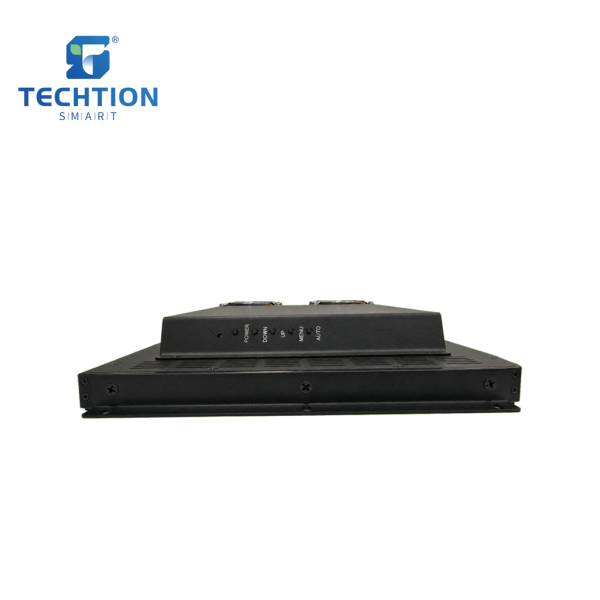

Product type Industrial Monitor OSD Buttons POWER/DOWN/UP/MENU/AUTO
Structure Aluminum frame+sheet metal housing/Black (Open Frame) Power consumption
Brand TECHTION Standby power（w） ≤0.5W
Display Parameters Power consumption（w） ≤35W
LCD Size 15.6″ Supply Voltage（v） DC12V
Active Area 344.16(H)x193.59(V)mm Audio output power 4Ω*2W (Optional)

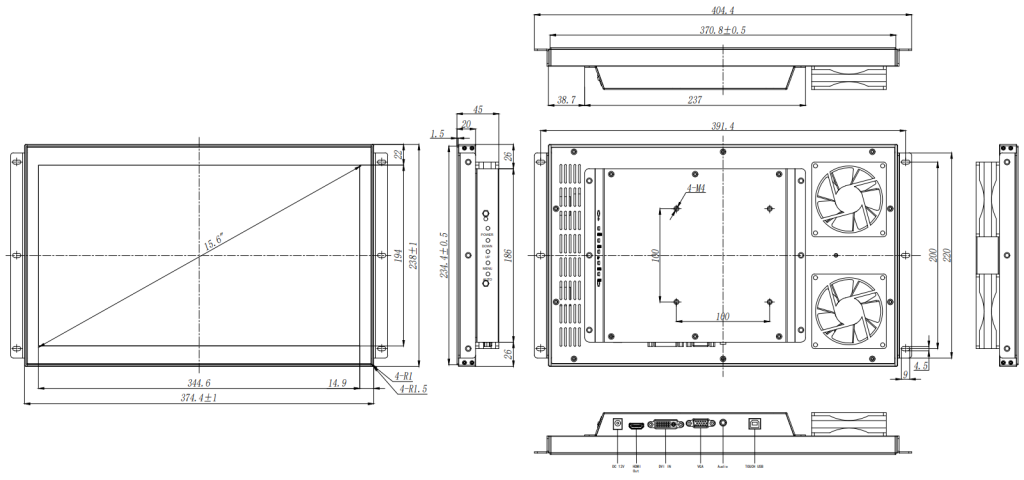

Resolution 1920*1080 Dimensions
Contrast Ratio 1200:1 Packing Size (mm) 525*355*160mm
Picture Aatio 16:9 Product Dimensions(mm) 374.4*238*45mm（without bracket included）
Viewing Angle 89/89/89/89(Typ.)(CR>10) NW(kg) 4.15kg
Response Time 30 ms GW(kg) 6.10kg
Backlight Type E-LED Embedded size(mm) 370.8*234.4mm
Brightness 1500 nits Installation Panel-mounted/VESA (100*100mm)
Life span 50000H Accessories
Protection IP65 (front panel) Power Cable *1
Touch parameters Power adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Touch Types Capacitive(G+G) –Optical Bonding Fixed part Recessed clip*2， screw*6
Clicks Capacitive＞50 million times Environment
Surface hardness 7H Operating temperature -20℃~70℃
Touch Point 2 points Operating humidity 10%~85% RH Non-Condensing
Thickness of glass 3mm+2mm Laminated glass with AG/AR/Anti-UV/IR-Blocking Storage temperature -30℃~80℃
Type of glass Chemically strengthened glass Storage humidity 10%~85% RH Non-Condensing
Transmittance ＞80%
