12.1 inch Stainless Steel X86 Panel PC



● Beautiful appearance/salt spray corrosion resistance/wide temperature/wear resistance/easy to clean.

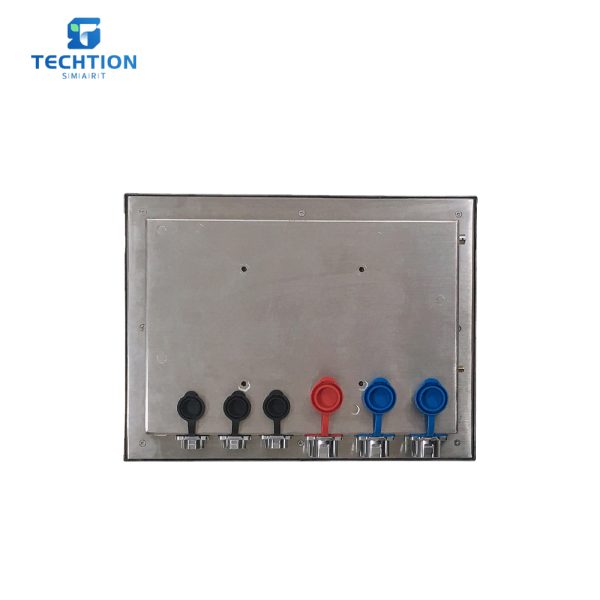

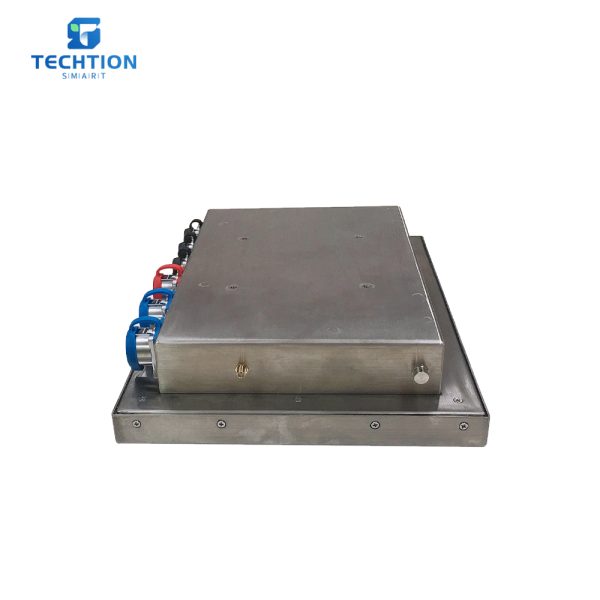

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation plug.

● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS485 serial port .

● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details



Main Parameters Touch Parameters
Model TS-121PCBX Touch Types Capacitive(G+G)  EETI IC
Product Type Stainless Steel X86 Panel PC Clicks ≥50 million times
Frame+Structure SUS304  Stainless Steel Surface Hardness 6H
Brand TECHTION Touch Point 10 points
Display Parameters Type of Glass Chemically strengthened glass
LCD Size 12.1” Transmittance ＞87%
Active Area 245.76(H) x 184.32(V) mm Mainboard Solution
Resolution 1024*768 CHIP Intel Core I5-6 generation
Contrast Ratio 1000:1 CPU Intel I5-6 generation @2.3GHz
Picture Aatio 4:3 GPU Intel HD Graphics 520
Viewing Angle 89/89/89/89(Typ.)(CR≥10) DDR DDR4 4G  /2400MHz（Max 32GB）
Response Time 13/12ms (Typ.)(Tr/Td) EMMC 128G SSD
Backlight Type E-LED OS Windows 10（Windows11/Linux optional）
LCD Brightness ≤ 1000 cd/m2(Typ) LAN 1000M
Life Span 50000H WiFi WIFI 2.4&5G / WIFI6 (optional）
IP Rating IP67 B/T (optional）

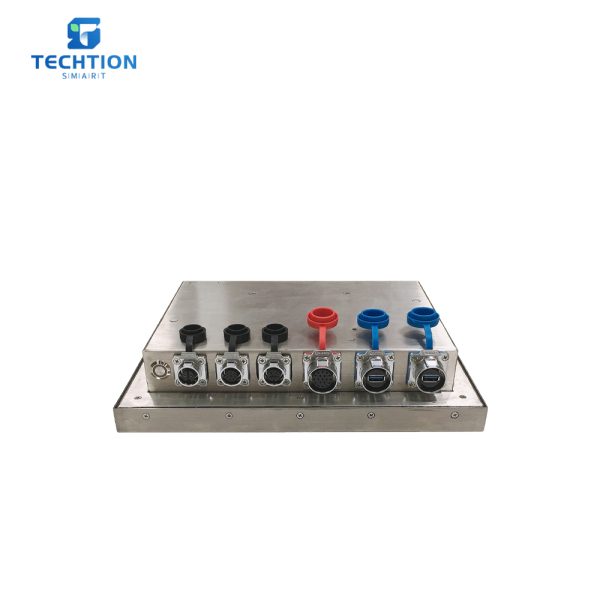

Dimensions Interface USB3.0*2，USB2.0*1，LAN*1，DC IN*1，RS232*1
Packing Size (mm) TBD Other Interfaces（Optional) VGA/HDMI/RS485

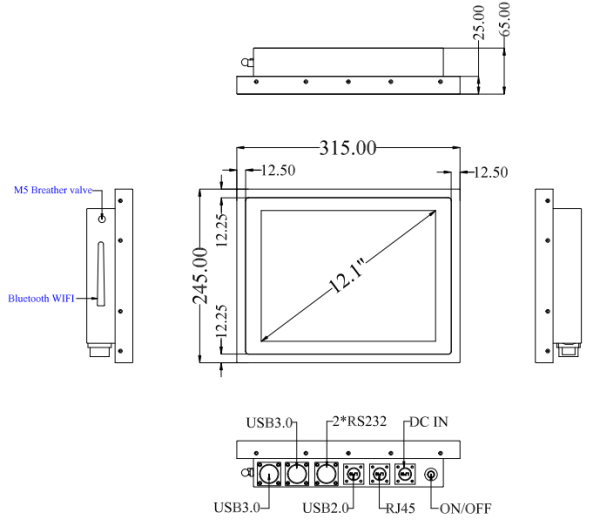

Product Dimensions(mm) 315*245*65mm Power Consumption
NW(kg) TBD Standby Power（w） ≤0.5W
GW(kg) TBD Power Consumption（w） ≤30W
VESA(mm) 100*100mm Supply Voltage（v） DC12V / (Optional :DC24V/DC 9-36V)
Installation Wall Mounted /Hanging/Desktop Accessories
Environment AC Power Cable *1
Operating Temperature -20℃~70℃ Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Humidity 10%～90% RH Non-Condensing USB Cable *3
Storage Temperature -30℃~80℃ LAN Cable *1
Storage Humidity 10%~90% RH Non-Condensing RS232 Cable *1
Wifi Antenna *1
