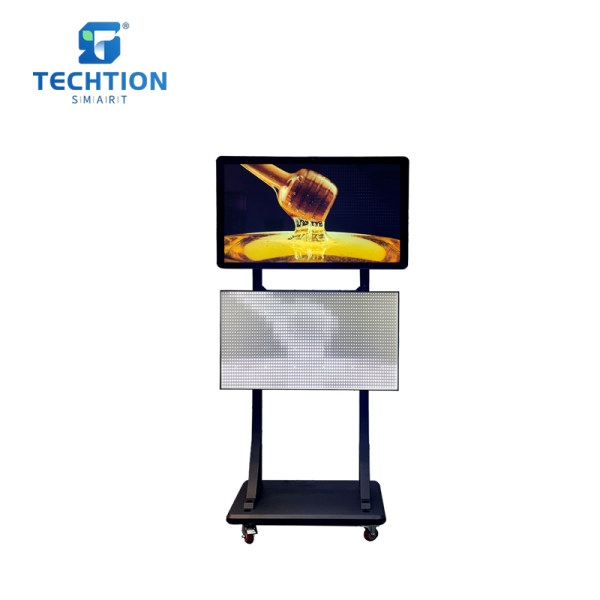

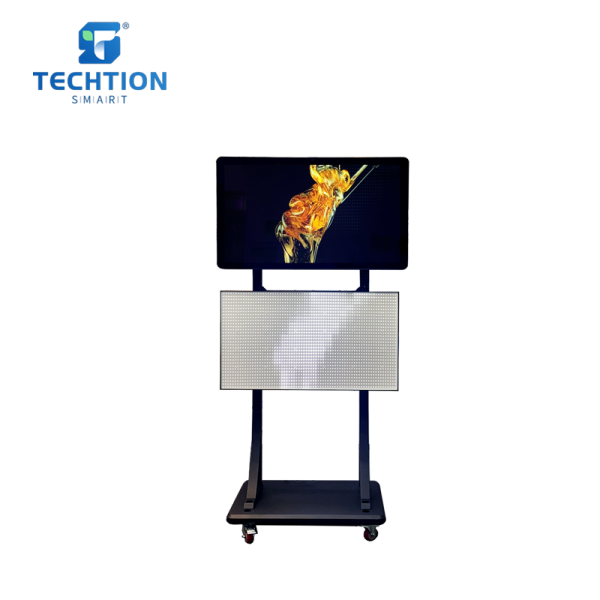

43 inch Outdoor Local Dimming Display Terminal





  • IP66 fully enclosed design, dustproof & waterproof
  • Galvanized steel shell, anti-corrosion, sunproof, explosion-proof, 10-year durability
  • 24/7 operation, portrait & landscape modes
  • Full HD high-brightness display, 16.7M colors, vivid & natural visuals
  • Adjustable brightness with local dimming, 30% energy saving
  • Applications: Shopping malls, streets, hotels, schools, parks, enterprises, bus stops, etc.
Back
Product Details

Main Parameters



X86 solution

Model

TS-430THDL

CHIP

I5 4200U

Product Type

Outdoor Display Terminal

CPU

Integrated Intel®Celeron @1.6GHz

Frame

Aluminum Die-Casting/Black (Closed Sealed )

GPU

Intel HD Graphics 4400

Brand

TECHTION

DDR

DDR4-4G

Display Parameters



EMMC

LCD Size

43”

OS

Windows 10 Pro（Windows 11/Linux optional）

Active Area

941.184(W)×529.416(H) mm

LAN

1000M

Resolution

1920*1080

WiFi

2.4G/5G

Panel Type

Transflective

B/T

4.0

Contrast Ratio

100000:1

Port Parameters

Picture Aatio

16:09

Interface

USB3.0*2,USB2.0,RJ45*1,VGA*1,HDMI *1,Wifi antenna*1

Orientation

Landscape

Graph Supported Format

Viewing Angle

178(H)*178(V)

Video Format

mp4、mkv、wmv、mov、flv3

Response Time

8ms（ G to G BW）

Picture Format

BMP、JPEG、PNG、GIF

Brightness

2500nits

Power Consumption

Life Span

50000H

Power Consumption（w）

298W(Max)

IP/IK Rating

IP66/IK10

Supply Voltage（v）

   AC110-240V，60 Hz

Cover Glass parameters

Audio Output Power

8Ω*5W*2

Panel Type

IPS

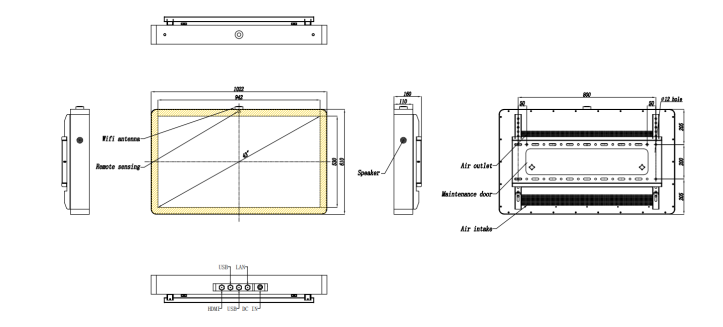

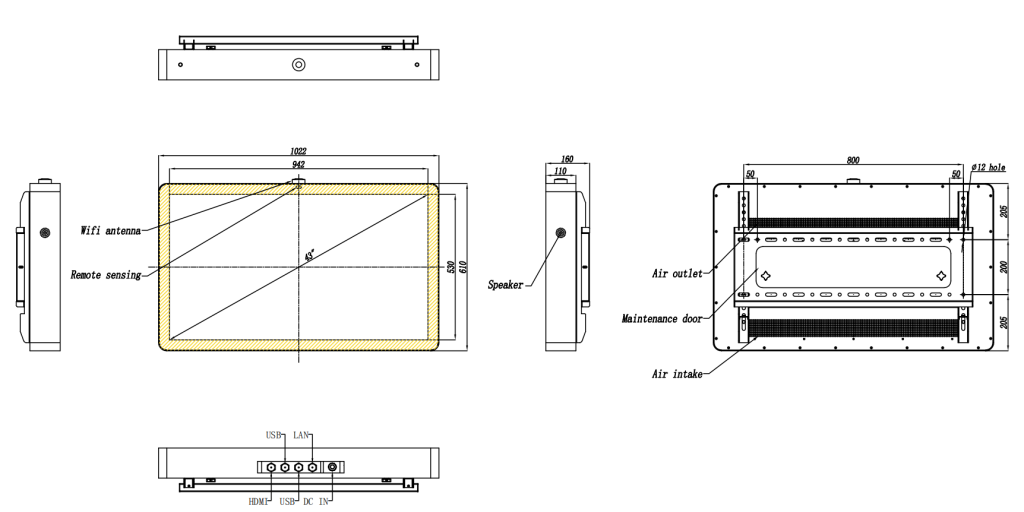

Dimensions

Cover Lens Thickness

5mm

Packing Size (mm)

430*365*153mm

Surface Technology

Anti-reflective

Product Dimensions(mm)

1022*610*160mm (with wall bracket)

Type of Glass

Tempered Glass

NW(kg)

TBD

Transmittance

＞90%

GW(kg)

TBD

Environment

Wall Mounting Holes(mm)

800*200mm

Operating Temperature

-20℃~70℃

Installation

Wall Mount

Operating Humidity

5%~95% RH Non-Condensing

Accessories

Storage Temperature

-20℃~70℃

Accessories

Power Cable*1(AC 110-240V  50/60Hz)/HDMI Cable*1/LAN Cable*1/USB Cable*1/Wifi antenna*1

Storage Humidity

5%~95% RH Non-Condensing





Operating Temperature

-20℃~70℃
