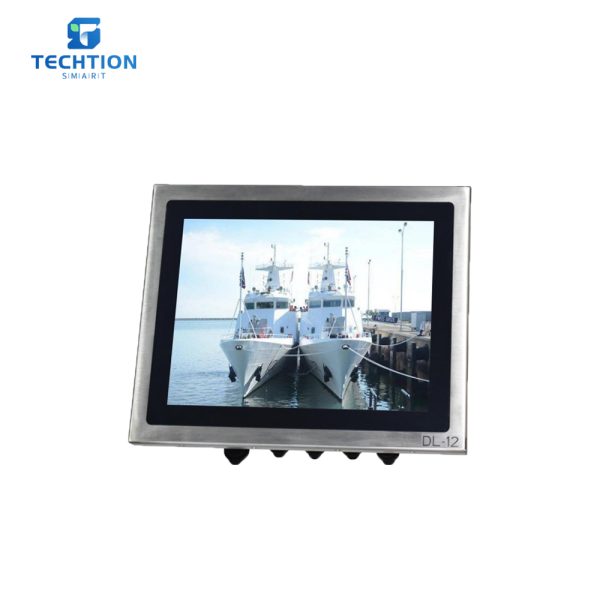

12.1 inch Stainless Steel X86 Panel PC





● 4:3 square screen, equipped with high-speed Windows system.

● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation plug.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS485 serial port .

● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details



Main Parameters Mainboard Solution
Model TS-121PRBX CHIP J6412
Product Type Stainless Steel X86 Panel PC CPU Integrated Intel®Celeron J6412 @2.0GHz  Quad-Core
Frame+Structure SUS304  Stainless Steel GPU Integrated Intel®UHD Graphics 600
Brand TECHTION DDR DDR4-4G (Max 8G)
Display Parameters EMMC 64G SSD
LCD Size 12.1” OS Windows 10（Windows 7/Windows8/Linux optional）
Active Area 245.76(H) x 184.32(V) mm LAN 1000M
Resolution 1024*768 WiFi WIFI 2.4&5G / WIFI6 (optional）
Contrast Ratio 1000:1 B/T (optional）
Picture Aatio 4:3 Interface USB*2，LAN*1，RS485*1，RS232*2，DC IN*1
Viewing Angle 89/89/89/89(Typ.)(CR≥10) Other Interfaces（Optional) VGA/HDMI/RS485
Response Time 13/12ms (Typ.)(Tr/Td) Power Consumption
Backlight Type E-LED Standby Power（w） ≤0.5W
LCD Brightness ≤1000 cd/m2 (Typ) Power Consumption（w） ≤35W
Life Span 50000H Supply Voltage（v） DC12V / (Optional :DC24V/DC 9-36V)
IP Rating IP67 Dimensions
Touch Parameters Packing Size (mm) TBD

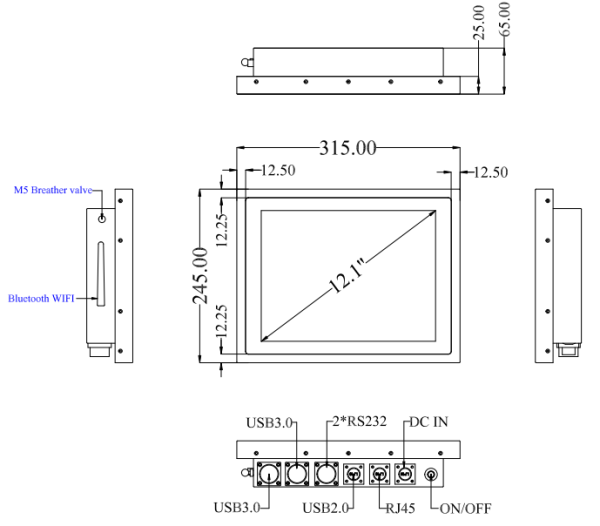

Touch Types Capacitive(G+G)  EETI IC Product Dimensions(mm) 315*245*65mm
Clicks ≥50 million times NW(kg) TBD
Surface Hardness 6H GW(kg) TBD
Touch Point 10 points VESA(mm) 100*100mm

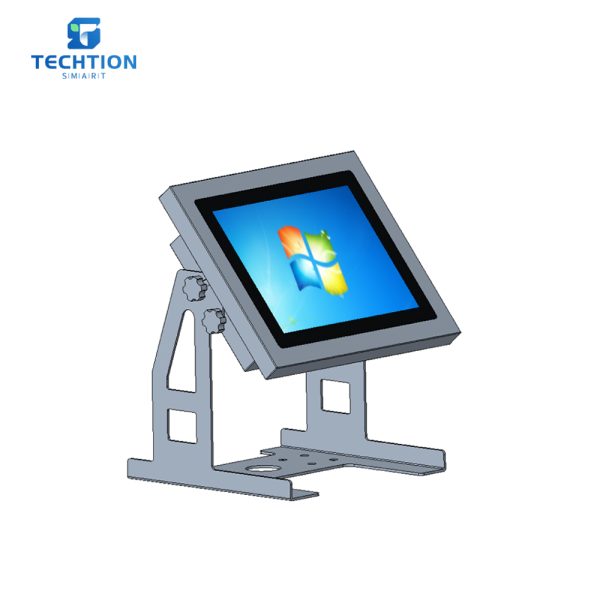

Type of Glass Chemically strengthened glass Installation Wall Mounted /Hanging/Desktop
Transmittance ＞87% Accessories
Environment AC Power Cable *1
Operating Temperature -20℃~70℃ Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Humidity 10%～90% RH Non-Condensing USB Cable *2
Storage Temperature -30℃~80℃ LAN Cable *1
Storage Humidity 10%~90% RH Non-Condensing RS232 Cable *2
RS485 Cable *1
Wifi Antenna *1
