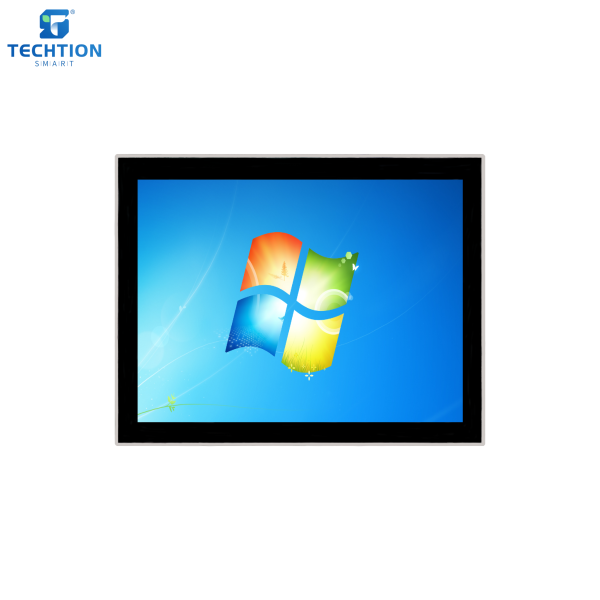

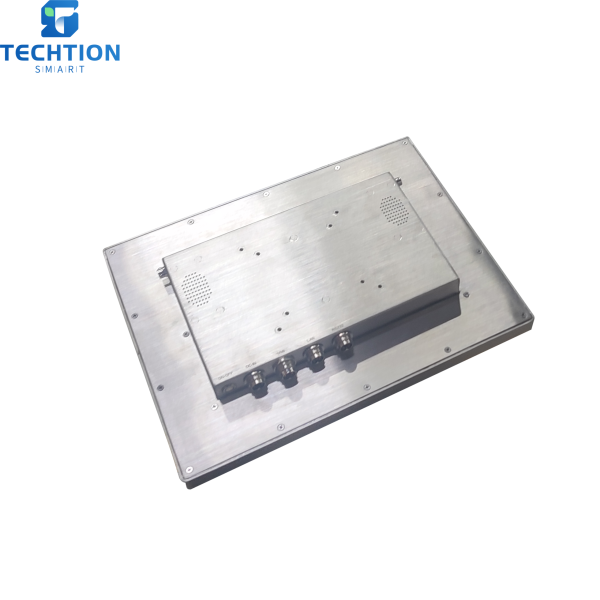

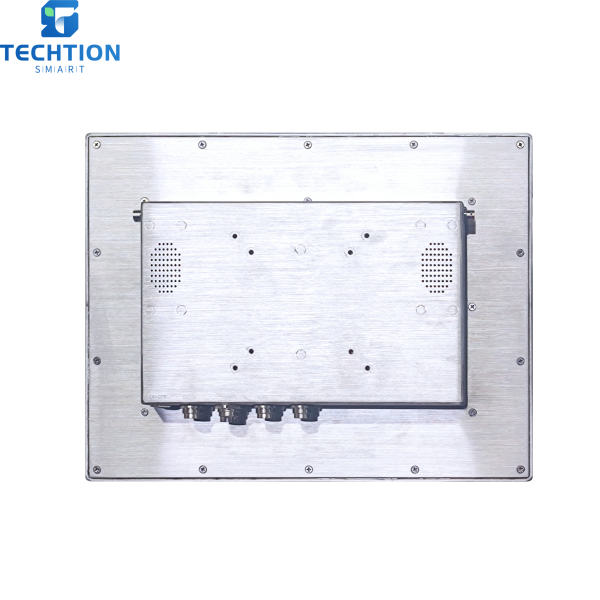

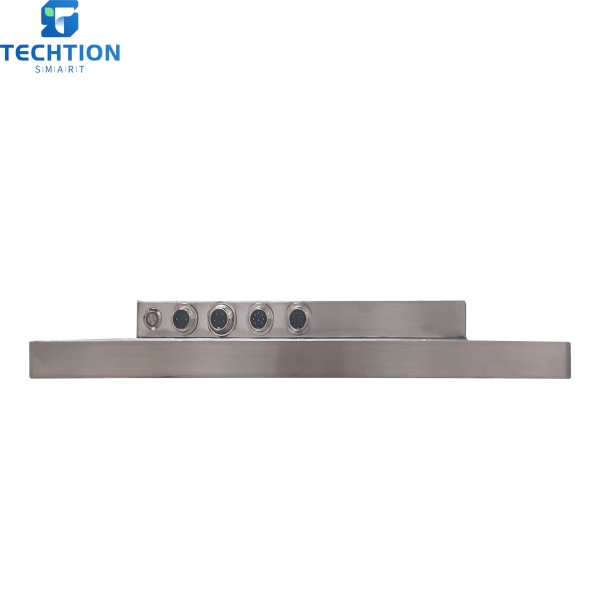

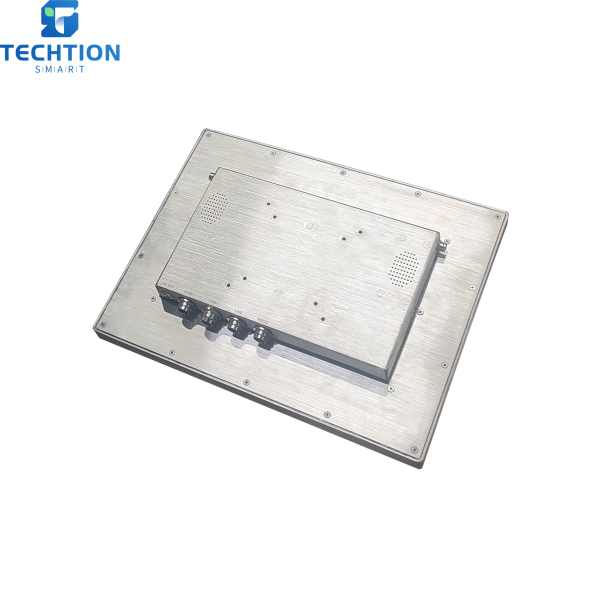

15 inch Stainless Steel X86 Panel PC(Capacitive)





● Beautiful appearance/salt spray corrosion resistance/wide temperature/wear resistance/easy to clean.

● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.

● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.

● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details



Main Parameters Power Consumption
Model TS-150PCBX Standby Power（w） ≤0.5W
Product Type Stainless Steel X86 Panel PC Power Consumption（w） ≤45W
Frame+Structure SUS304 Stainless Steel Supply Voltage（v） DC12V(Optional:DC24V/DC9-36V)
Brand TECHTION Speaker 8Ω5W*2(Optional)
Display Parameters Dimensions
LCD Size 15” Packing Size(mm) TBD

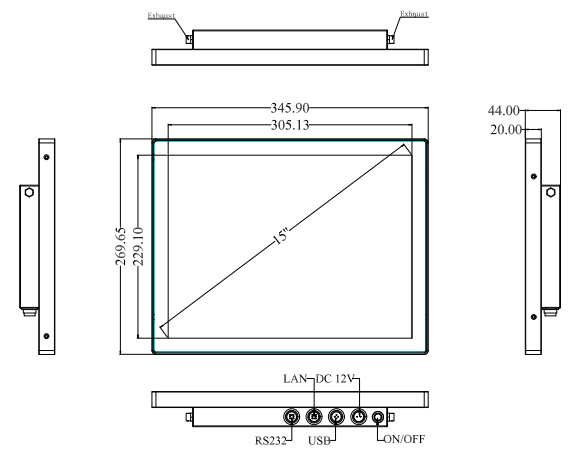

Active Area 304.128(W)x228.096(V)mm Product Dimensions(mm) 345.9*269.7*44mm
Resolution 1024*768 NW(kg) 6.85kg
Contrast Ratio 600:1 GW(kg) TBD
Picture Ratio 4:3 VESA(mm) 100*100mm/75*75mm
Viewing Angle 80/80/80/80(Typ.)(CR≥10) Installation Wall Mounted/Hanging/Desktop
Response Time 8ms Accessories
Backlight Type E-LED AC Power Cable *1
Brightness 1000cd/m2 Power Adapter *112V/5A(AC100-240V50/60Hz)
Life Span 50000H Others USB Cable*1，Network Cable*1，RS232 Cable*1，Wifi antenna*2
IP Rating IP67 Environment
Mainboard Solution Operating Temperature -20℃~70℃
CHIP J6412 Operating Humidity 10%～90%RHNon-Condensing
CPU Integrated Intel®CeleronJ6412@2.0GHzQuad-Core Storage Temperature -30℃~80℃
GPU Integrated Intel®UHDGraphics600 Storage Humidity 10%~90%RHNon-Condensing
DDR DDR4-8G Touch Parameters
EMMC 128G SSD TouchTypes Capacitive(G+G)EETI IC
OS Windows10（Windows7/Windows8/Linux optional） Clicks ≥50million times
LAN 1000M Surface Hardness 6H
WiFi WIFI6 (optional） Touch Point 10 points
B/T 5.3 (optional） Type of Glass Chemically strengthened glass
Interface USB*1，LAN*1，DCIN*1，RS232*1 Transmittance ＞87%
