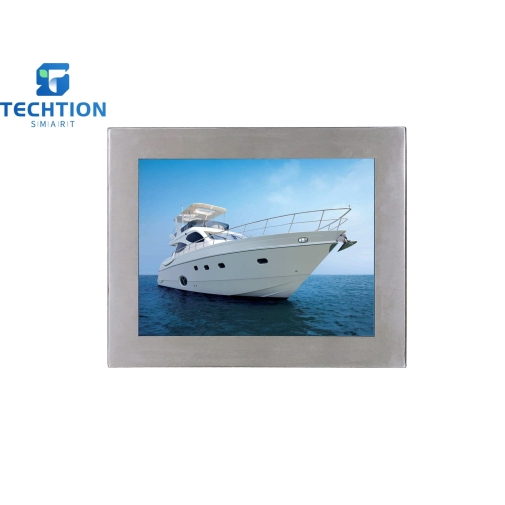

15 inch X86 AIO Panel PC

  • 4:3 square screen, equipped with high-speed Windows system.
  • Beautiful appearance/salt spray corrosion resistance/wide temperature/wear resistance/easy to clean.

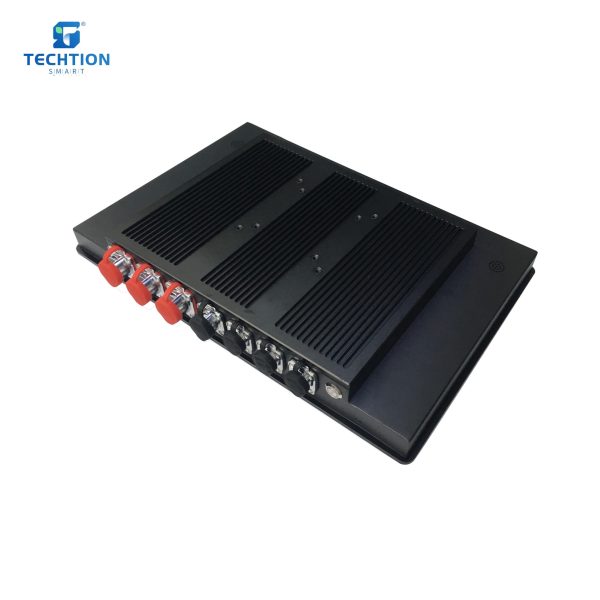

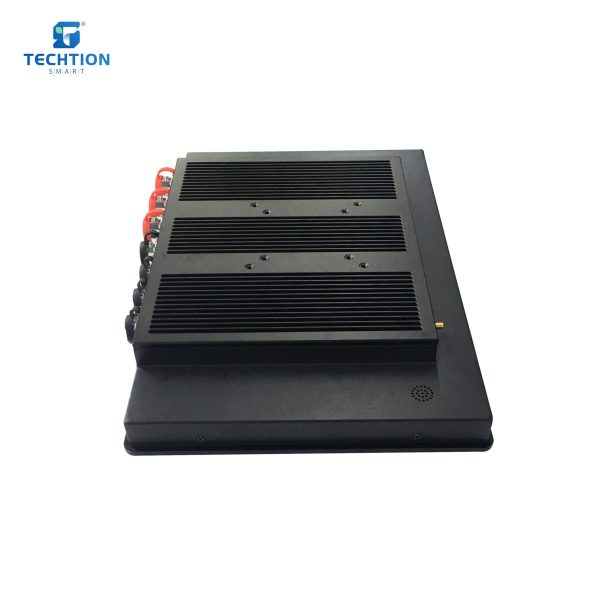

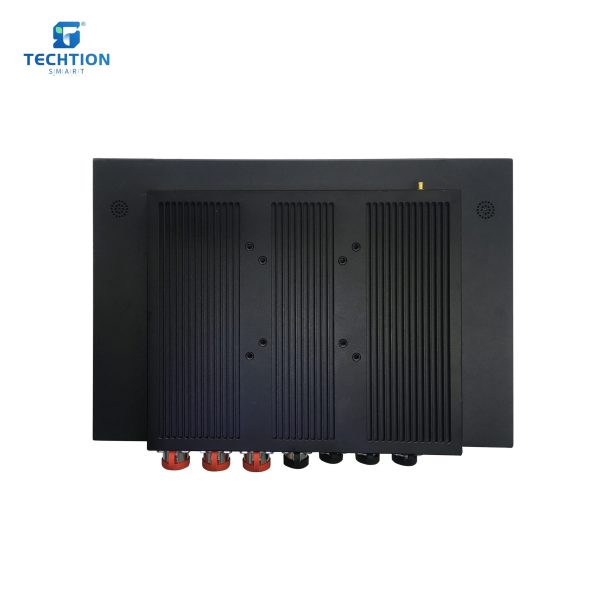

  • The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

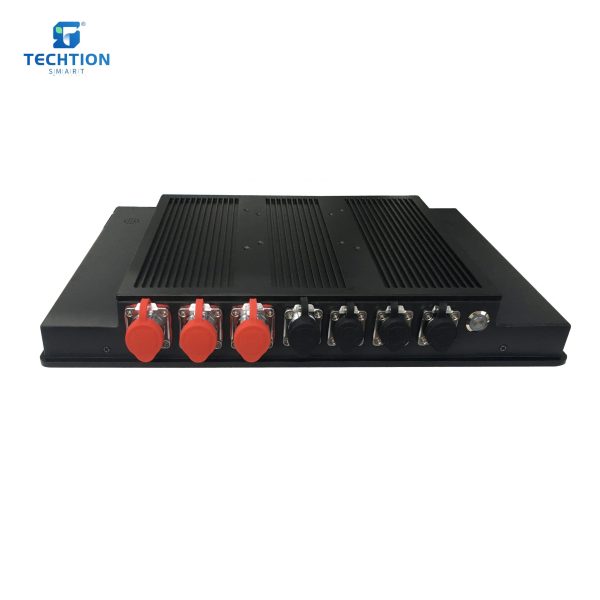

  • Sandblasted aluminum front frame/sheet metal structure/aluminum rear cover material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.
  • Taiwan EETI waterproof control solution, supports normal use in water flow environment.

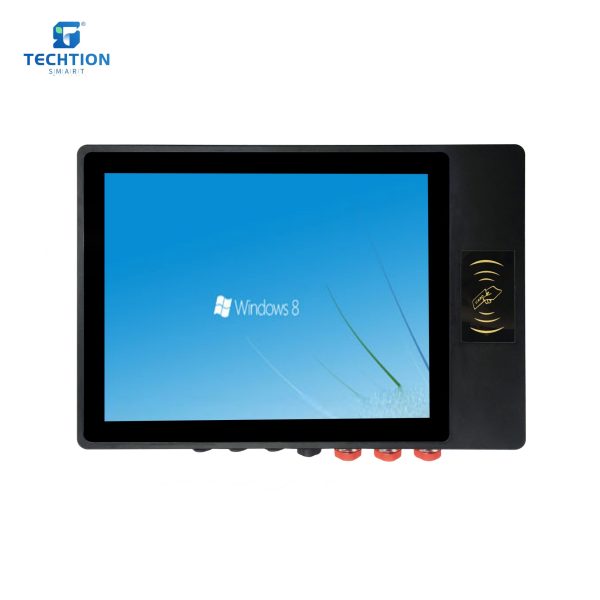

  • Support IC/ID card swiping function.
  • Continuous operation 24 hours a day.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.



Back PreviousNext
Product Details

Main Parameters Mainboard Solution
Model TS-150PRBX CHIP I3-5005U
Product Type X86 AIO Panel PC CPU Intel Core I3-5005U@2.0GHz
Frame+Structure Aluminum +Sheet Metal Structure GPU Intel® HD Graphics 5500
Brand TECHTION DDR DDR3L  4GB 1333/1600MHz（Max:16GB)
Display Parameters EMMC 64G SSD
LCD Size 15” OS Windows 10(Windows 7/Windows8/Linux optional)
Active Area 304.128(W) x 228.096 (V) mm LAN 1000M
Resolution 1024*768 WiFi Support
Contrast Ratio 800:1 B/T Support
Picture Aatio 4:3 Interfaces RS232*4、USB*4、LAN*2、VGA*1 、DC IN*1
Viewing Angle 80/80/60/80(Typ.)(CR≥10) Interface(optional) RS485/RS422/HDMI/GPIO
Response Time 8ms Power Consumption
Backlight Type E-LED Standby Power（w） ≤1W
Brightness 350cd/m2 Power Consumption（w） ≤50W
Life Span 50000H Supply Voltage（v） DC12V/ (Optional :DC24V/DC 9-36V)
IP Rating IP67 Speaker 8Ω5W*2
Touch parameters Dimensions
Touch Types Resistive touch (EETI IC) Packing Size (mm) TBD

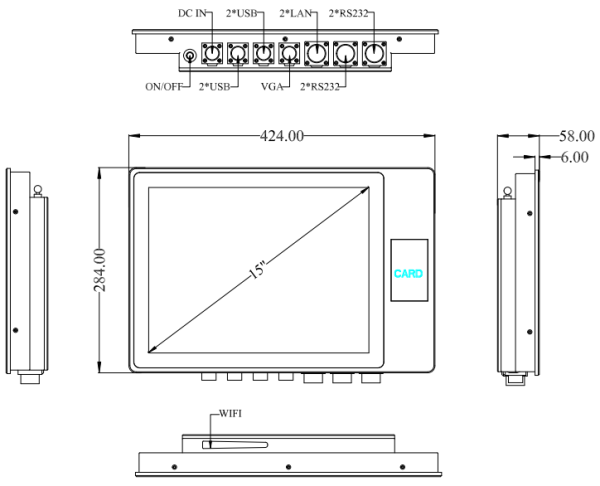

Clicks ≤500000 times Product Dimensions(mm) 424*284*58mm
Surface Hardness 3H NW(kg) 5.0kg
Touch Point Single Point GW(kg) 7.5kg
Material ITO VESA(mm) 75*75mm/100*100mm
Transmittance ＞78% Installation Desktop/Wall Mount/Hanging
Environment Accessories
Operating Temperature -20℃~70℃ Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Humidity 10%～90% RH Non-Condensing USB Cable *2
Storage Temperature -30℃~70℃ Network Cable *1
Storage Humidity 10%~90% RH Non-Condensing Others AC Power Cable*1，RS232 Cable*2，VGA Cable*1，Wifi antenna*1
