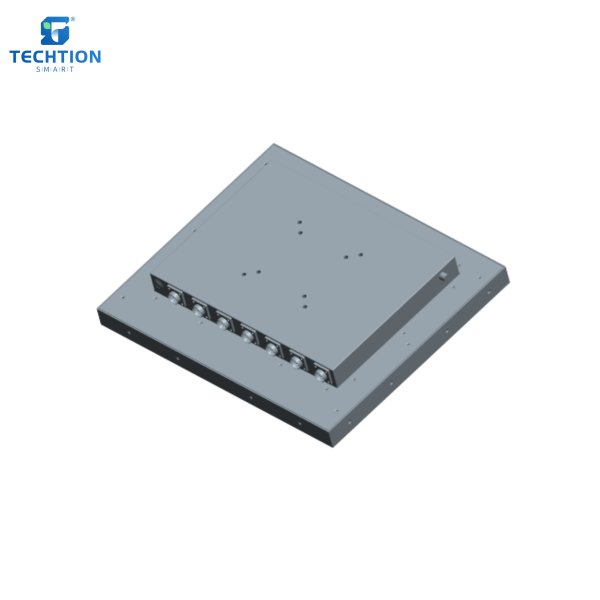

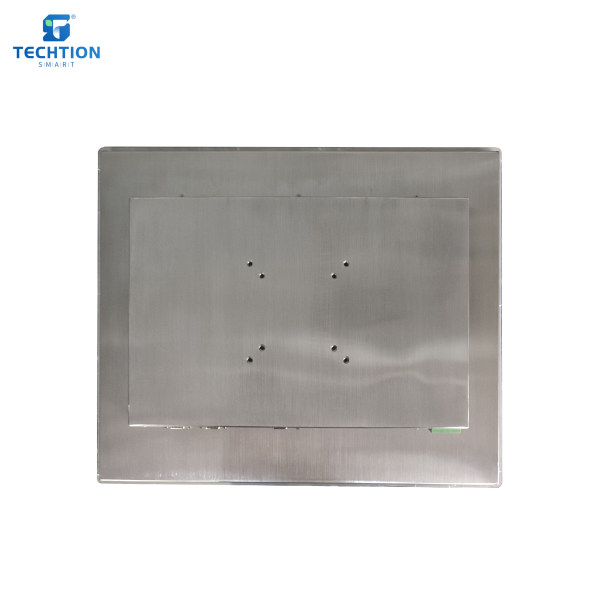

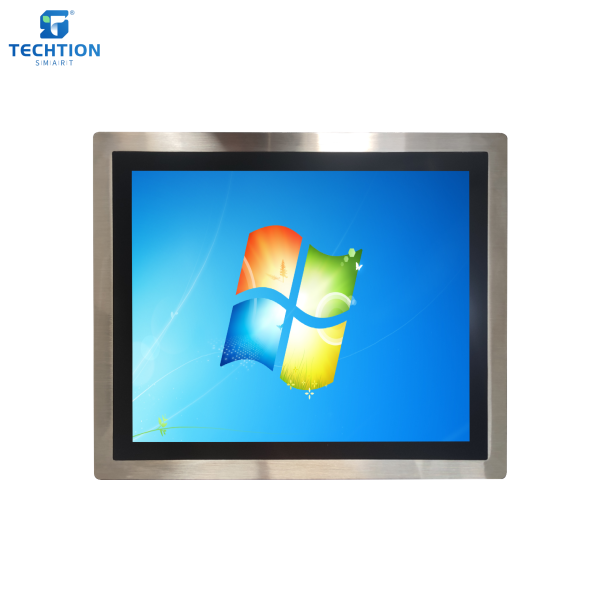

19 inch Stainless Steel X86 Panel PC



● 5:4 square screen, equipped with high-speed Windows system.

● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.

● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.

● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details



Main Parameters Mainboard Solution
Model TS-190PRBX CPU Intel Celeron J1900@ 2.0GHz
Product Type Stainless Steel X86 Panel PC GPU Intel HD Graphics
Frame+Structure SUS304  Stainless Steel DDR DDR3-4G  1333MHz
Brand TECHTION EMMC 64G SSD
Display Parameters OS Windows 10（Windows 7/Windows8/Linux optional）
LCD Size 19” LAN 1000M(Realtek RT8111E)
Active Area 376.32 (H) * 301.06 (V)mm WiFi Wifi2.4/5G （optional）
Resolution 1280*1024 B/T 4.0 （optional）
Contrast Ratio 1000:1 Interface USB*2，LAN*2，DC IN*1，COM*2(RS232)
Picture Aatio 5:4 Power Consumption
Viewing Angle 85/85/80/80(Typ.)(CR≥10) Standby Power（w） ≤0.5W
Response Time 20 ms Power Consumption（w） ≤45W
Backlight Type E-LED Supply Voltage（v） DC12V  (Optional :DC24V/DC 9-36V)
Brightness ≤1000cd/m2 (Typ) Speaker 8Ω5W*2 (Optional)
Life Span 50000H Dimensions
IP Rating IP67 Packing Size (mm) TBD

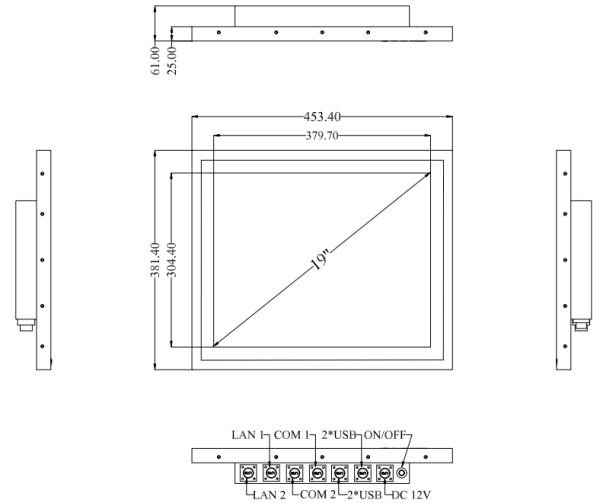

Touch Parameters Product Dimensions(mm) 453.4*381.4*61mm
Touch Types Resistive touch ( EETI IC) NW(kg) TBD
Clicks ≤500000 times GW(kg) TBD
Surface Hardness 3H VESA(mm) 100*100mm/200*100mm
Touch Point Single Point Installation Wall Mounted /Hanging/Desktop
Material ITO Accessories
Transmittance ＞78% AC Power Cable *1
Environment Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Temperature -20℃~70℃ USB Cable *2
Operating Humidity 10%～90% RH Non-Condensing Network Cable *2
Storage Temperature -30℃~85℃ RS232 Cable *2
Storage Humidity 10%~90% RH Non-Condensing Wifi Antenna *2
