21.5 inch Stainless Steel ARM Panel PC (Resistive)



  • Beautiful appearance/salt spray corrosion resistance/wide temperature/wear resistance/easy to clean.
  • The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.
  • SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
  • Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.
Back PreviousNext
Product Details



Main Parameters Touch Parameters
Model TS-215ARBX Touch Types Resistive touch ( EETI IC)
Product Type Stainless Steel Android Panel PC Clicks ≤500000 times
Frame+Structure SUS304  Stainless Steel Surface Hardness 3H
Display Parameters Touch Point Single Point
LCD Size 21.5″ Material IOT
Active Area 476.64(H) * 268.11(V)mm Transmittance ＞78%
Resolution 1920*1080 Mainboard Solution
Contrast Ratio 3000:1 CHIP RK3288
Picture Aatio 16:9 CPU ARM Cortex-A17*4 @1.8GHz
Viewing Angle 89/89/89/89(Typ.)(CR≥10) GPU ARM Mali-T764
Response Time 18ms DDR DDR3 2GB
Backlight Type E-LED EMMC 8GB
Brightness 250 cd/m2 OS Android 5.1/8.1
Life Span 50000H LAN 10M/100M
IP Rating IP67 WiFi 2.4G/5G
Accessories B/T 4.2
AC Power Cable *1 Interface USB*1，LAN*1，HDMI *1，DC IN*1，RS232*1
Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz) Power Consumption
Others Network Cable*1，RS232 Cable*1，USB Cable*1，HDMI Cable*1 Standby Power（w） ≤0.5W
Dimensions Power Consumption（w） ≤45W
Packing Size (mm) TBD Supply Voltage（v） DC12V  /(Optional :DC24V/DC 9-36V)

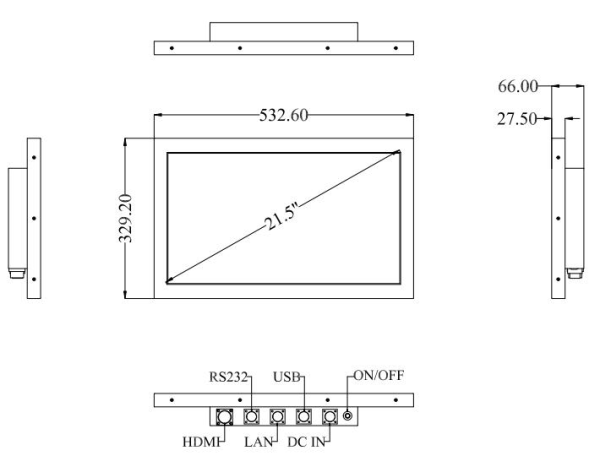

Product Dimensions(mm) 532.6*329.2*66mm Environment
NW(kg) TBD Operating Temperature -20℃~70℃
GW(kg) TBD Operating Humidity 10%～90% RH Non-Condensing
VESA(mm) 100*100mm/200*100mm Storage Temperature -30℃~80℃
Installation Wall Mounted /Hanging/Desktop Storage Humidity 10%~90% RH Non-Condensing
