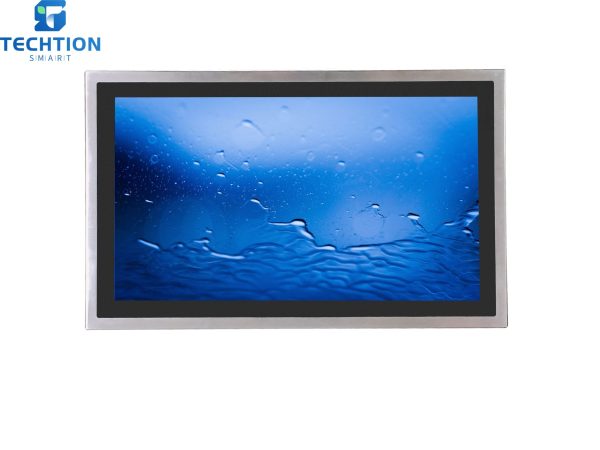

21.5 inch Stainless Steel X86 Panel PC(Capacitive)





● 16：9 wide screen, equipped with high-speed Windows system.

● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

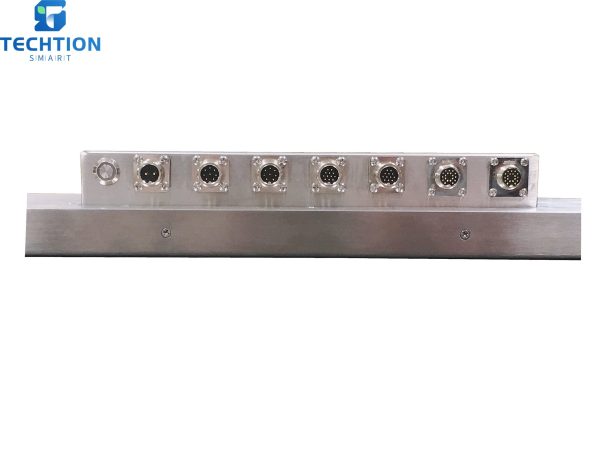

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation sockets.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.

● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details



Main Parameters Mainboard Solution
Model TS-215PCBX CPU Integrated Intel®Celeron J6412 @2.0GHz  Quad-Core
Product Type Stainless Steel X86 Panel PC GPU Integrated Intel®UHD Graphics 600
Frame+Structure SUS304  Stainless Steel DDR DDR4-8G
Brand TECHTION EMMC 128G SSD
Display Parameters OS Windows 10（Windows 11/Linux optional）
LCD Size 21.5” LAN 1000M
Active Area 476.64(H) * 268.11(V)mm WiFi WIFI6 (Optional)
Resolution 1920*1080 B/T 5.3 (Optional)
Contrast Ratio 1000:1 Interface USB*2，LAN*2，HDMI OUT *1，DC IN*1，RS232*2,VGA*1
Picture Aatio 16:9 Power Consumption
Viewing Angle 85/85/80/80(Typ.)(CR≥10) Standby Power（w） ≤0.5W
Response Time 18ms Power Consumption（w） ≤50W
Backlight Type E-LED Supply Voltage（v） DC12V
Brightness ≤1000 cd/m2 (Typ) Dimensions
Life Span 50000H Packing Size (mm) TBD

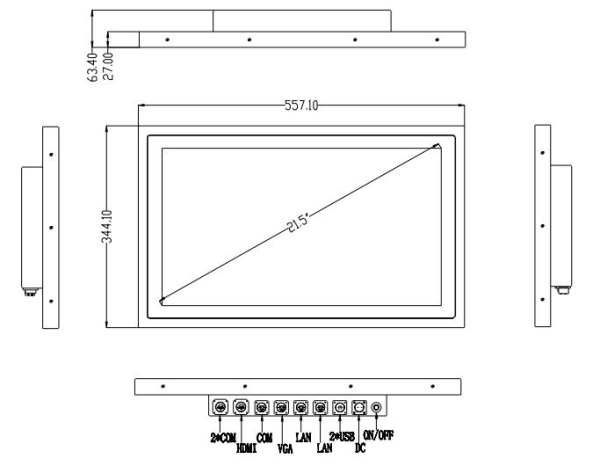

IP Rating IP67 Product Dimensions(mm) 557.1*344.1*63.4mm
Touch Parameters NW(kg) TBD
Touch Types Capacitive(G+G)   EETI IC GW(kg) TBD
Clicks ≥50 million times VESA(mm) 100*100mm/200*100mm
Surface Hardness 6H Installation Wall Mounted /Hanging/Desktop
Touch Point 10 points Accessories
Type of Glass Chemically Strengthened Glass AC Power Cable *1
Transmittance ＞87% Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Environment VGA Cable *1
Operating Temperature -20℃~70℃ HDMI Cable *1
Operating Humidity 10%～90% RH Non-Condensing Network Cable *2
Storage Temperature -30℃~80℃ USB Cable *1
Storage Humidity 10%~90% RH Non-Condensing RS232 Cable *2
