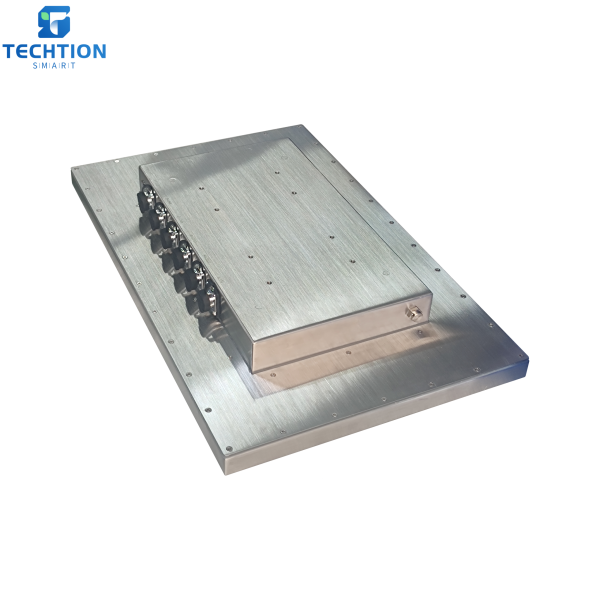

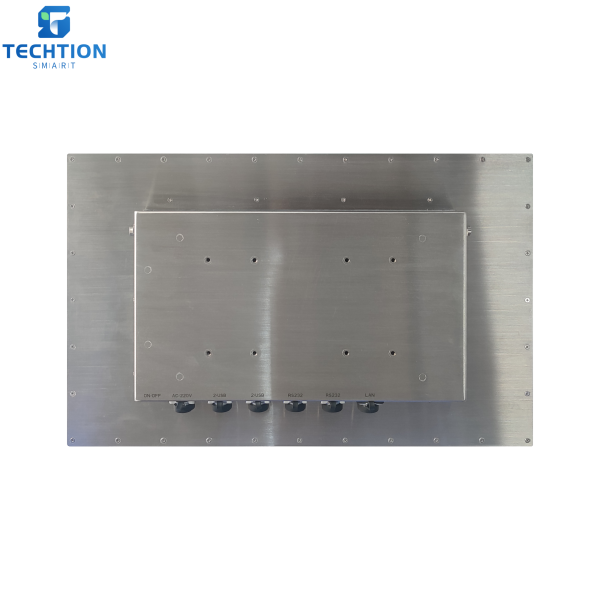

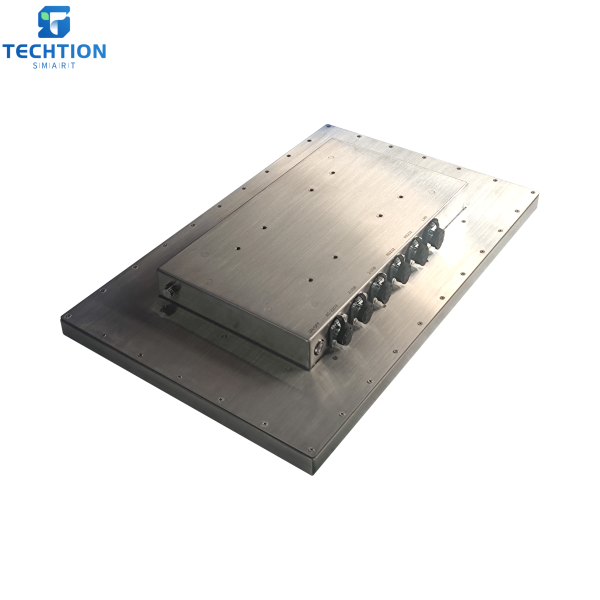

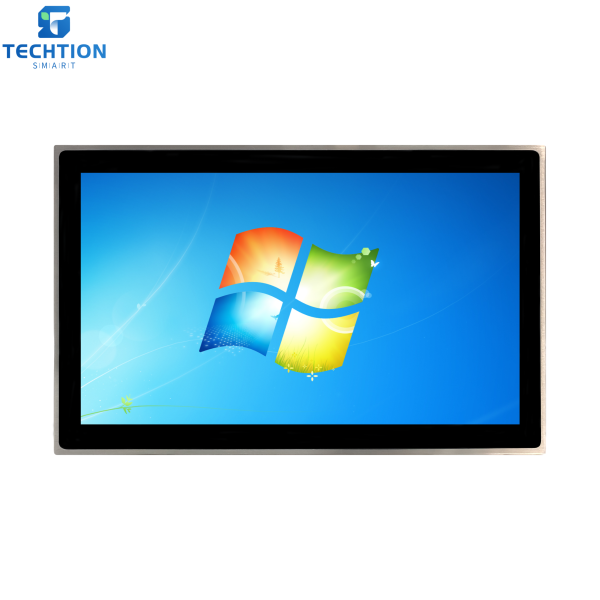

21.5 inch Stainless Steel X86 Panel PC(Resistive)





● The whole machine is fully enclosed and fanless design,strong heat dissipation, energy saving and quiet.

● Supports portrait and landscape display modes.

● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.

● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.

Back PreviousNext
Product Details



Main Parameters Mainboard Solution
Model TS-215PRBX CHIP J6412
Product Type Stainless Steel X86 Panel PC CPU Integrated Intel®Celeron J6412 @2.0GHz  Quad-Core
Frame+Structure SUS304  Stainless Steel GPU Integrated Intel®UHD Graphics 600
Display Parameters DDR DDR4-8G
LCD Size 21.5” EMMC 128G SSD
Active Area 476.64(H) * 268.11(V)mm OS Windows 10（Windows 11/Linux optional）
Resolution 1920*1080 LAN 1000M
Contrast Ratio 3000:1 WiFi Wifi2.4&5G ,WIFI6 (Optional)
Picture Aatio 16:9 B/T 4.0/4.2/5.3(Optional)

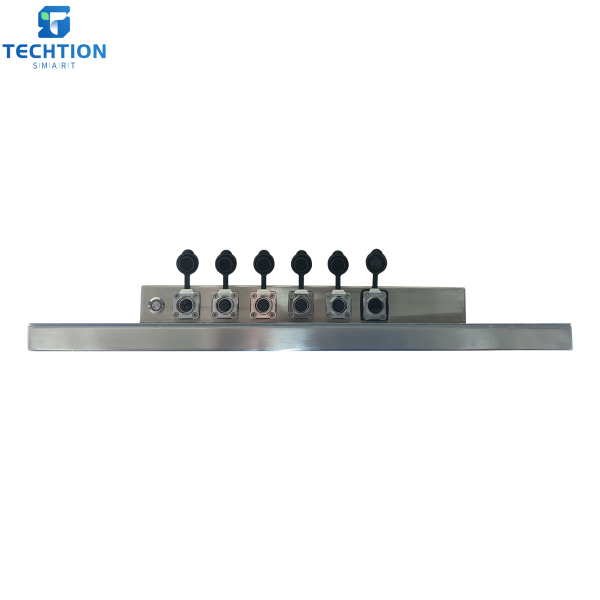

Viewing Angle 89/89/89/89(Typ.)(CR≥10) Interface USB*2 ,LAN*1 ,RS232*2, DC IN*1
Response Time 18ms Power Consumption
Backlight Type E-LED Standby Power（w） ≤0.5W
Brightness 1000 cd/m2 Power Consumption（w） ≤50W
Life Span 50000H Supply Voltage（v） DC12V /(Optional :DC24V/DC 9-36V)
IP Rating IP67 Dimensions
Touch Parameters Packing Size (mm) TBD

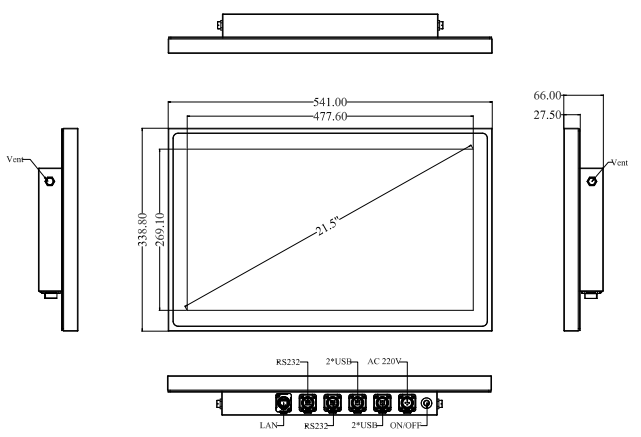

Touch Types Resistive touch ( EETI IC) Product Dimensions(mm) 541*338.8*66mm
Clicks ≤500000 times NW(kg) TBD
Surface Hardness 3H GW(kg)  TBD
Touch Point Single Point VESA(mm) 100*100mm/200*100mm
Material Film to Glass Installation Wall Mounted /Hanging/Desktop
Transmittance ＞78% Accessories
Environment AC Power Cable *1
Operating Temperature -20℃~70℃ Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Humidity 10%～90% RH Non-Condensing Network Cable *1
Storage Temperature -30℃~80℃ USB Cable *2
Storage Humidity 10%~90% RH Non-Condensing RS232 Cable *2
