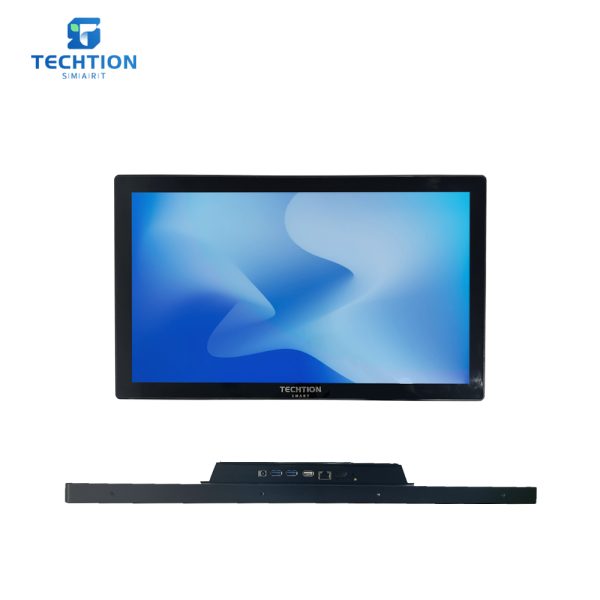

21.5″ Intelligent Android Panel PC



  • 16:9 wide screen, readable under sunlight,ultra low power fearure,equipped with high-speed intelligent Android system
  • The whole machine is semi-closed and fanless design
  • IP65 dustproof and waterproof standard（front screen)
  • Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
  • Applications : Outdoor self-service vending terminal, Outdoor transportation (charging pile、Scenic guide board 、Electronic bus stop sign etc）.
Back Previous
Product Details



Main Parameters Android Solution
Model TS-215PHD CHIP RK3399
Product Type Intelligent Android Panel PC CPU Cortex-A72*2+A53*4@1.8GHz
Frame Aluminum frame +Sheet metal back shell /Black GPU Mali-T860
Brand TECHTION NPU /
Display Parameters DDR DDR3-4G
LCD Size 21.5” EMMC 32G
Active Area 476.64(H) × 268.11(V)mm OS Default Android9.0（Android 7.1 /10.0 optional )
Resolution 1920*1080 LAN 10/100/1000M
Panel Type Transflective WiFi 2.4G
Contrast Ratio 8:01 B/T 4.1
Picture Aatio 16:09 System Upgrade USB
Display Colors 16.7M Port Parameters

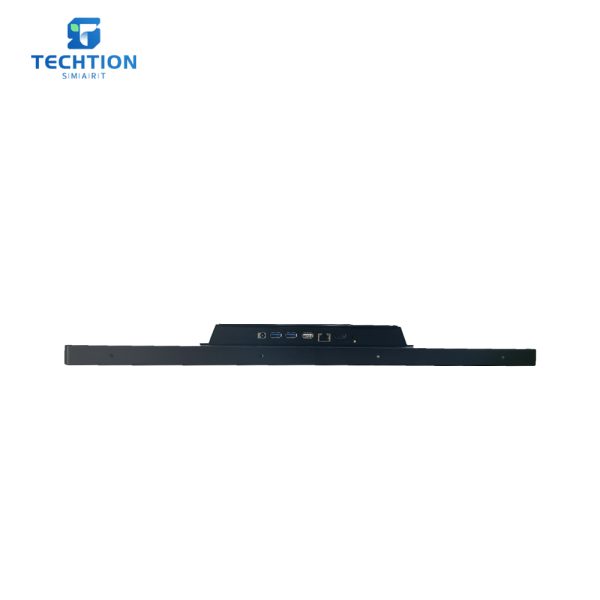

Viewing Angle 60/60/50/50 (Typ.) (CR>2) External Connectors EARPHONE*1，RJ45*1，USB3.0*1(OTG)，USB3.0*1，DC12*1，COM*1，Wifi antenna*1，HDMI OUT*1
Response Time 15ms Graph Supported Format
Brightness TBD Video Format mp4、mkv、wmv、mov、flv3
Life Span 30000H Picture Format BMP、JPEG、PNG、GIF
Protection IP65 (front screen) Power Consumption
Touch Parameters Standby Power（w） ≤0.5W
Touch Types Capacitive(G+G) Power Consumption（w） ≤20W
Clicks Capacitive＞50 million times Supply Voltage（v）     DC12V
Surface Hardness 6H Audio Output Power 8Ω*2W
Touch Point 10 points Dimensions
Type of Glass Chemically strengthened glass Packing Size (mm) 615*424*125mm

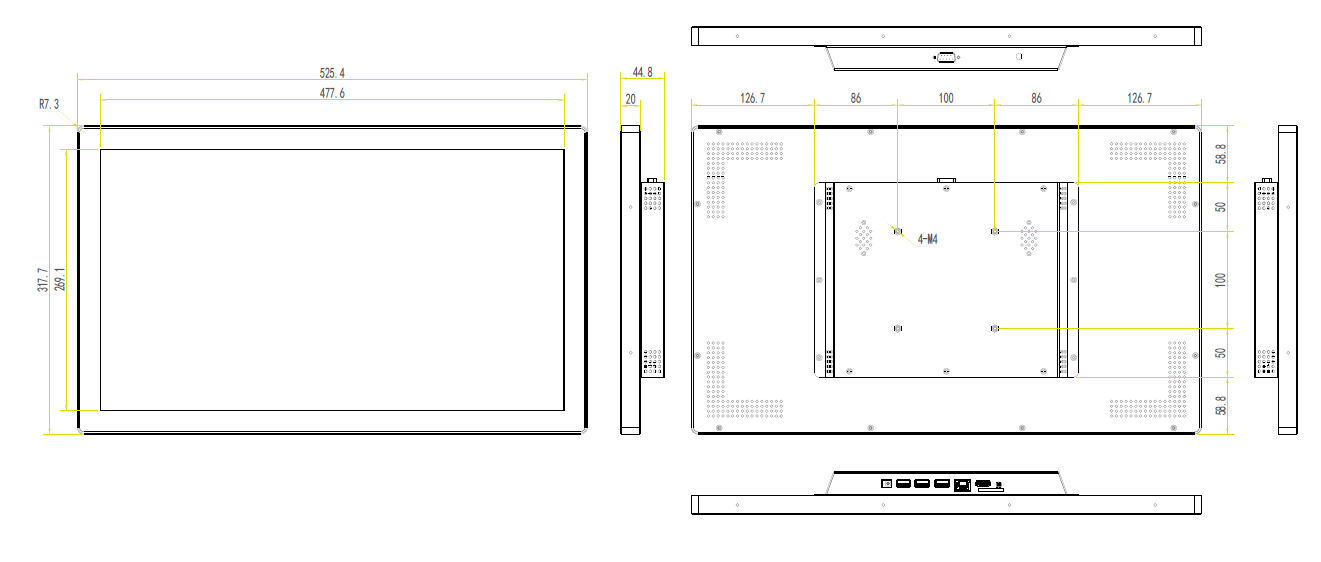

Transmittance ＞85% Product Dimensions(mm) 525.4*317.7*44.8mm
Environment NW(kg) 3.5kg
Operating Temperature -20℃~70℃ GW(kg) 4.7kg
Operating Humidity -20℃~70℃ Wall Mounting Holes(mm) 100*100 （M4*6mm*4pcs）
Storage Temperature -20℃~70℃ Installation Embedded/wall-mounted/table-top/hanging
Storage Humidity 10%~80% Accessories
Accessories Power Cable*1/  Power adapter*1(12V/5A  (AC 100-240V  50/60Hz))/Wifi antenna*1
