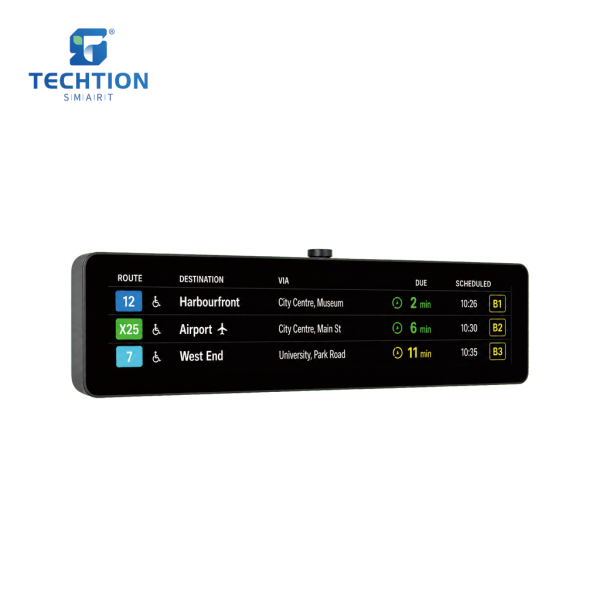

36.6″ Local Dimming Display

  • 36.6″ high-brightness wide-temp LCD, optical bonding, 5mm tempered glass, 2500 nits.
  • High physical resolution of 1920*290, the vision is more delicate.
  • Viewing angle up to 178°, close to horizontal.

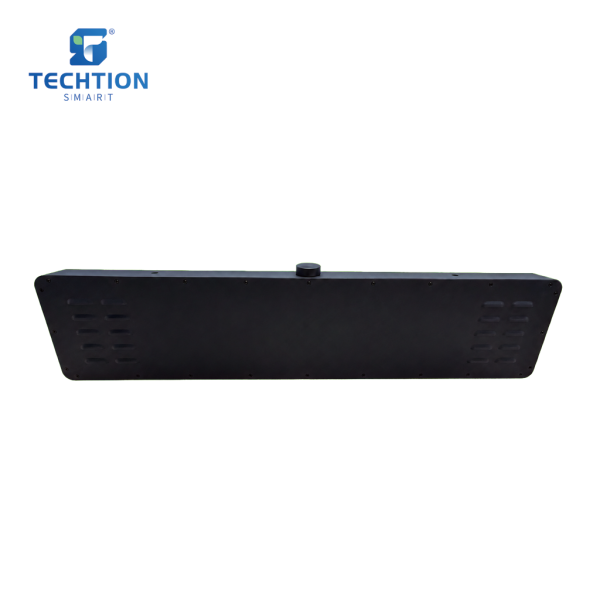

  • The whole machine has an all-metal structure, preventing radiation, magnetic fields, and strong electric interference, built-in fan cooling.
  • Continuous operation 24 hours a day.
  • Industrial-grade design, high reliability, high stability, low power consumption.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • Supports RTC real-time clock, scheduled power on and off, network wake-up.
  • Local Dimming: 366 zones, dynamic local dimming enhances contrast and image depth, 30–40% energy saving.
  • Applications: Bus stops, malls, squares, schools, parks, 24/7 operation.
Back Previous
Product Details
Main Parameters Android solution
ModelTS-366THDChipRK3566
Product typeSTRETCHED BAR DISPLAYCPUCortex-A55*4@1.8GHz
StructureSheet metal Frame/BlackGPUMali-G52
BrandTECHTIONDDR2GB
Display ParametersEMMC32GB
LCD Size36.6”OSAndroid11.0
Panel TypeIPSLAN10/100M
Active Area919.296(W)×138.852(H) mmWiFi2.4G (Wi-Fi 802.11b/g/n)
Resolution1920*290B/T4.2
Contrast Ratio100000:1System upgradeUSB\TF Card
Viewing Angle178(H)*178(V)4G moduleOptional
OrientationLandscapeExternal ConnectorsUSB3.0*1/USB(OTG)*1/TF *1/Audio*1/LAN*1/HDMI-OUT*1/RS232*1/RS485*1/Speaker*1/DC*1
Response Time8ms（ G to G BW）Power consumption
Backlight TypeD-LED (Local Dimming)Power consumption（w）120W(Max)
Brightness2500nitsSupply Voltage（v）DC24-5A
Life span50000HAudio output power8Ω*5W(Optional)
IP RatingIP65 (Front Panel)Dimensions
Cover GlassPacking Size (mm)TBD

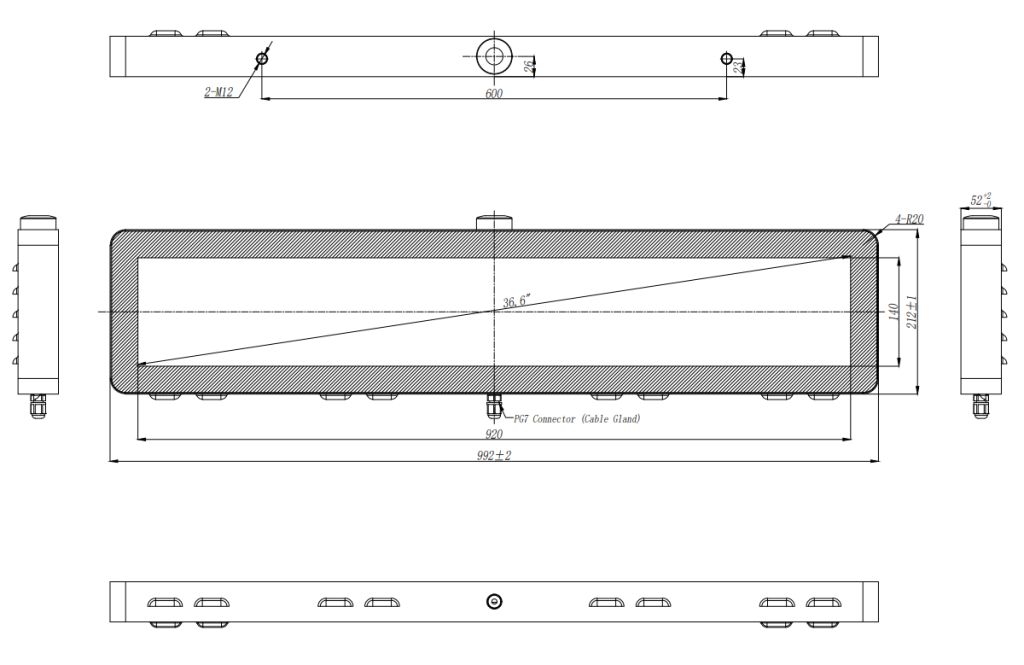

Type of glassTempered GlassProduct Dimensions(mm)992*212*52mm (with wall bracket)
Cover Lens Thickness4mmNW(kg)11kg
Surface TechnologyAnti-reflective/AGGW(kg)TBD
Transmittance＞85%VESA Hole Size(mm)500*100mm
AccessoriesInstallationWall Mount/Hanging installation
Power Cable*1Environment
Power adapter*1  24V/5A  (AC 100-240V  50/60Hz)Operating temperature-20℃~70℃
Wall mounting BracketTBDOperating humidity5%~95% RH Non-Condensing
Allen StudTBDStorage temperature-20℃~70℃
Wifi antennaTBDStorage humidity5%~95% RH Non-Condensing
