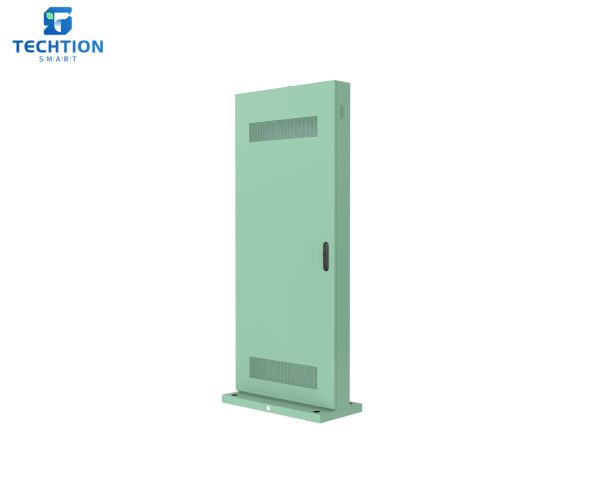

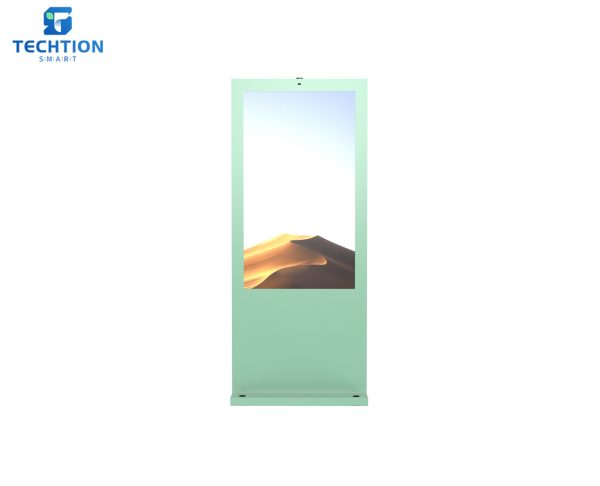

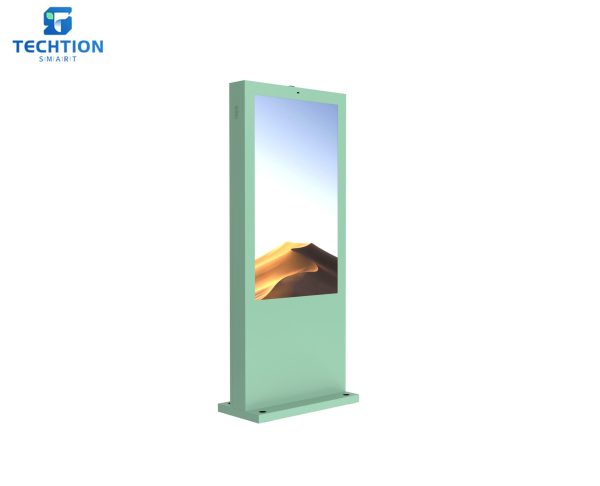

43 inch Outdoor Floor Standing Display





● Adopting LG\BOE\AUO brand LCD screen with brightness of 2000-2500cd/m2,high resolution, high contrast, high brightness, greatly enhance the sense of picture hierarchy, and better display picture details.

● It has an automatic ghosting elimination function, UV protection, heat insulation, automatic light-sensing green energy saving, and long-term protection for LCD screens.

● Long life span, 7*24H continuous operation, with a life span of up to 50,000 hours

● Electrical protection: surge protection, leakage, overload, overvoltage protection, high temperature protection, etc.

● Application: Stores, pedestrian streets, shopping malls, hotels, squares, schools, parks, enterprises and institutions, communities, bus stops, etc.

Back PreviousNext
Product Details



Main Parameters Mainboard
Model TS-430FHD Chip RK3288 (Optional:X86/Monitor)
Product Type OUTDOOR FLOOR STANDING DISPLAY CPU Cortex-A17*4 @1.8GHz
Frame Galvanized steel plate/color customized GPU ARM Mali-T764
Display Parameters DDR 2G
LCD Size 43” EMMC 16G
Active Area 940.896(H) × 529.254(V)mm OS Android7.1
Resolution 1920*1080 LAN 10/100M
Contrast Ratio 1200:1 WiFi 2.4G/5G
Pixel Pitch 0.16335 mm x 0.49005mm B/T 5
Viewing Angle 89/89/89/89 （typ)  CR>10 Internal Connectors USB2.0 *2,RJ45*1,HDMI*1, AC*1/Wifi *1(Extenal)
Orientation Portrait Video Format MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV
Response Time 13 ms Video Format GIF, JPEG, PNG, BMP
Tempered Glass 5mm Other Format MP3, 24bit linear PCM7.1 PDF/ RSS News/Weather
Backlight Type D-LED Networking Methods LAN wired network, WiFi wireless network
Brightness 2000-2500cd/m2 (typ) Update Methods Network remote update, USB flash drive update
Life Span 50000H Timer on/off Support to set any time period
IP Level IP65 Power Consumption
Working Environment Power Consumption（w） 300W(Max)
Operating Temperature -20℃~60℃ Supply Voltage（v） AC110-220V，50/60 Hz
Operating Humidity 10%～90% RH Non-Condensing Audio Output power 8Ω10W*2
Storage Temperature -20℃~70℃ Dimensions
Storage Humidity 5%~95% RH Non-Condensing Packing Size (mm) 1950*920*470mm

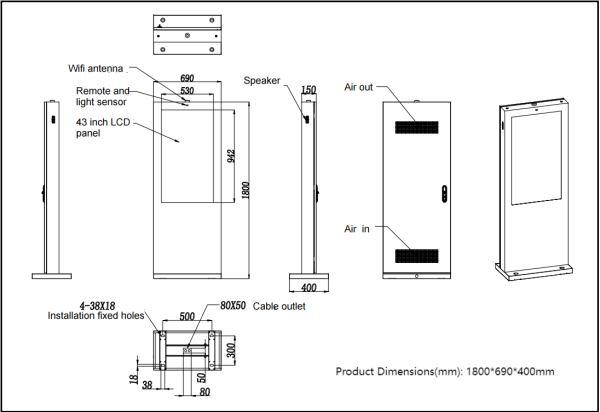

Noise <65dB Product Dimensions(mm) 1800*690*400mm
Optional NW(kg) 80kg
Networking Methods 4G Module/4G Router Wireless Networking GW(kg) 115kg
G+F Nano Touch Film/G+G Capacitive Touch Screen Installation Floor Standing
