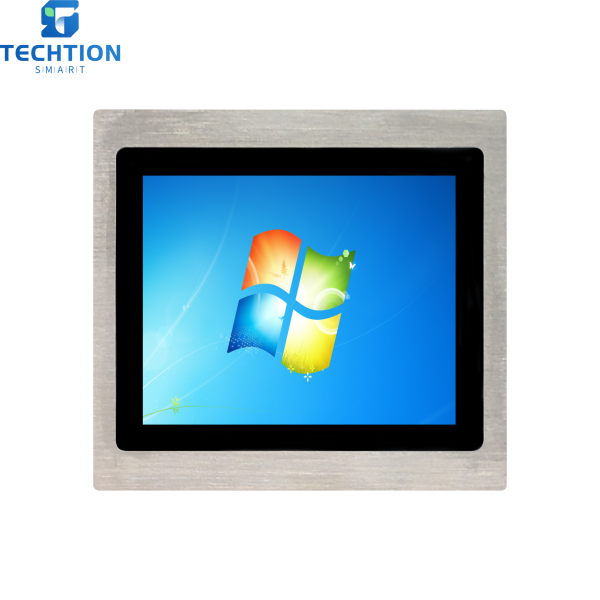

8 inch Stainless Steel X86 Panel PC
● 4:3 square screen, equipped with high-speed Windows system.

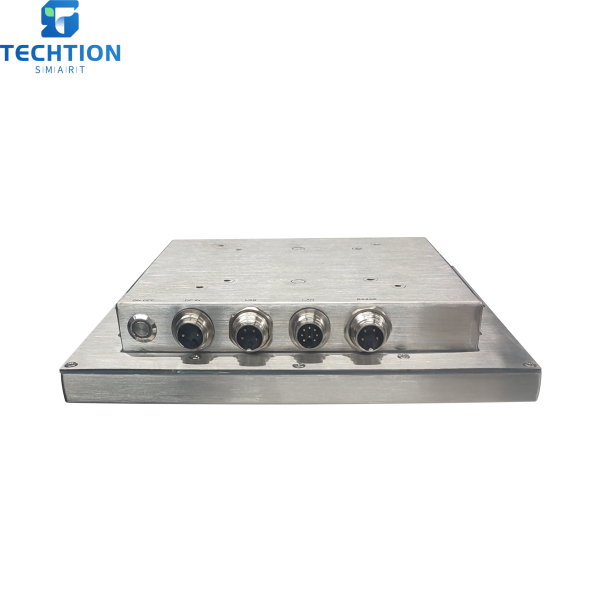

● SUS304 material, IP67 dustproof and waterproof standard,all interfaces and sockets are aviation plug.
● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
● Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS485 serial port .
● Applications : Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.
Main Parameters | Mainboard Solution | |||
Model | TS-080PCBX | CHIP | J4125 | |
Product Type | Stainless Steel X86 Panel PC | CPU | Integrated Intel®CeleronJ4125@2.0GHzQuad-Core | |
Frame+Structure | SUS304 Stainless steel | GPU | Integrated Intel®UHD Graphics600 | |
Brand | TECHTION | DDR | DDR44G2400MHz(Max8GB) | |
Display Parameters | EMMC | 64GSSD | ||
LCDSize | 8” | OS | Windows10(Windows11/Linux optional) | |
Active Area | 162.048(W)×121.536(H)mm | LAN | 1000M | |
Resolution | 1024*768 | WiFi | WIFI2.4&5G/WIFI6(optional) | |
Contrast Ratio | 800:1 | B/T | (optional) | |
Picture Ratio | 4:3 | Interface | USB*1,LAN*1,DCIN*1,RS485*1 | |
Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Other Interfaces(Optional) | VGA/HDMI/RS232 | |
Response Time | 25ms | Power Consumption | ||
Backlight Type | E-LED | Standby Power(w) | ≤0.5W | |
Brightness | 300cd/m2 | Power Consumption(w) | ≤25W | |
LifeSpan | 50000H | SupplyVoltage(v) | DC12V/(Optional:DC24V/DC9-36V) | |
IPRating | IP67 | Dimensions | ||
Touch Parameters | Packing Size(mm) | TBD | ||

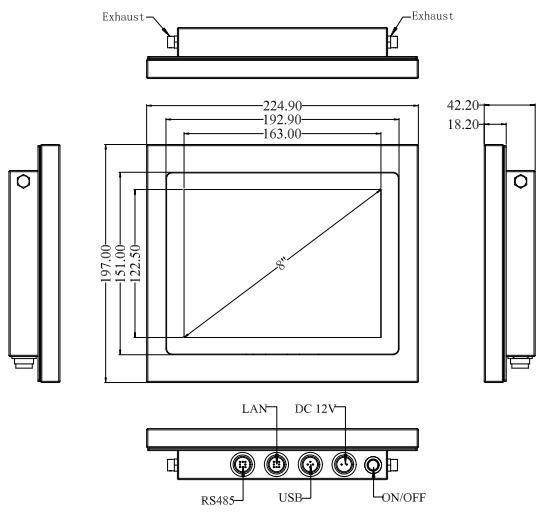

Touch Types | Capacitive(G+G)EETI IC | Product Dimensions(mm) | 224.9*197*42.2mm | |
Clicks | ≥50milliontimes | NW(kg) | TBD | |
Surface Hardness | 6H | GW(kg) | TBD | |
Touch Point | 10points | VESA(mm) | 75*75mm/100*100mm | |
Type of Glass | Chemically strengthened glass | Installation | Wall Mounted/Hanging/Desktop | |
Transmittance | >87% | Accessories | ||
Environment | AC Power Cable | *1 | ||
Operating Temperature | -20℃~70℃ | Power Adapter | *112V/5A(AC100-240V50/60Hz) | |
Operating Humidity | 10%~90%RHNon-Condensing | USB Cable | *1 | |
Storage Temperature | -30℃~80℃ | Network Cable | *1 | |
Storage Humidity | 10%~90%RHNon-Condensing | RS485Cable | *1 | |
Wifi Antenna | *2 |
