TS-215THD: 21.5” Full HD IPS Digital Signage for Transit Information Display

We are pleased to introduce the TECHTIONSMART TS-215THD — a 21.5-inch Full HD IPS digital signage solution purpose-built for transit information display applications, including buses, metro systems, and public transportation terminals.

Powered by a stable Android platform, a high-quality IPS panel, and flexible system integration capabilities, the TS-215THD delivers clear visual performance and reliable operation for real-time passenger information and public communication systems.

Product Parameters

• Model: TS-215THD
• Product Type: Digital Signage
• Frame: Sheet metal structure (white finish)
• Brand: TECHTION
• Screen Size: 21.5” IPS panel
• Resolution: 1920 × 1080 (Full HD)
• Contrast Ratio: 3000:1
• Backlight: E-LED for uniform brightness
• Brightness: <400 cd/m² (typ.)
• Lifetime: ≥30,000 hours
• Surface hardness: 7H
• Light transmittance: >85%
• Front panel protection: IP65
• Front Glass: Chemically / thermally tempered 2 mm AG glass
• OS: Android 9.0
• Operating power: ≤25W
• Operating temperature: 0°C ~ 60°C
• Operating humidity: 15% ~ 85% RH (non-condensing)

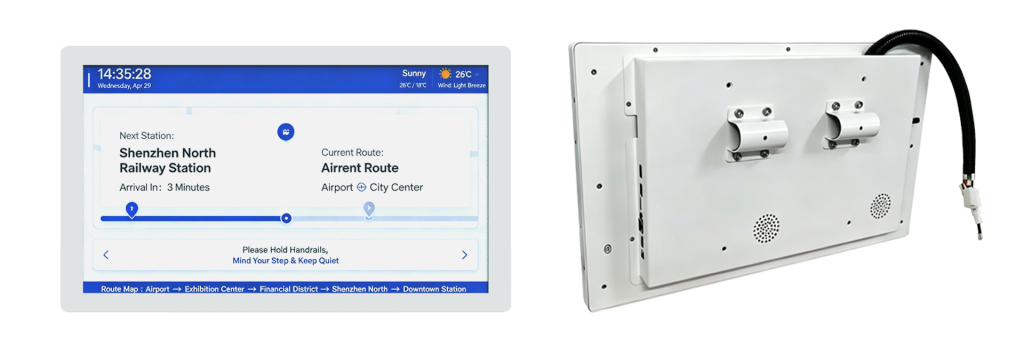

• Installation: VESA mount / pole clamp

Key Features

• All-metal structure throughout the unit, providing protection against radiation, magnetic fields, and strong electrical interference
• Professional IPS screen technology offering a large viewing angle, fast response speed, and high color reproduction
• E-LED backlight mode for more uniform brightness distribution
• High physical resolution of 1920 × 1080 for finer, more delicate image quality
• Viewing angle up to 178°, near-horizontal for broad visibility
• Supports 24/7 continuous non-stop operation
• Industrial-grade design ensuring high reliability, high stability, and low power consumption
• Excellent vibration resistance and shock resistance, suitable for harsh operating environments
• Supports RTC real-time clock, scheduled power on/off, and network wake-up

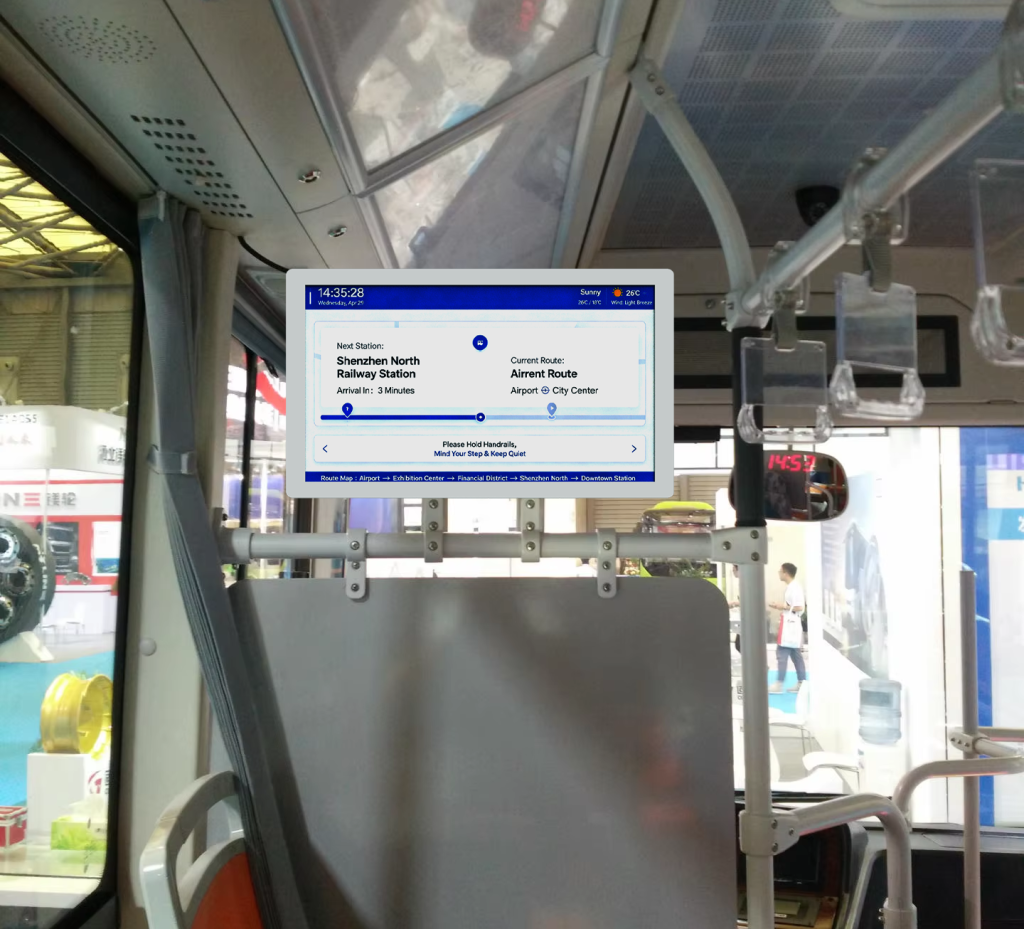

• Applications: smart transportation (buses, metro, etc.)
