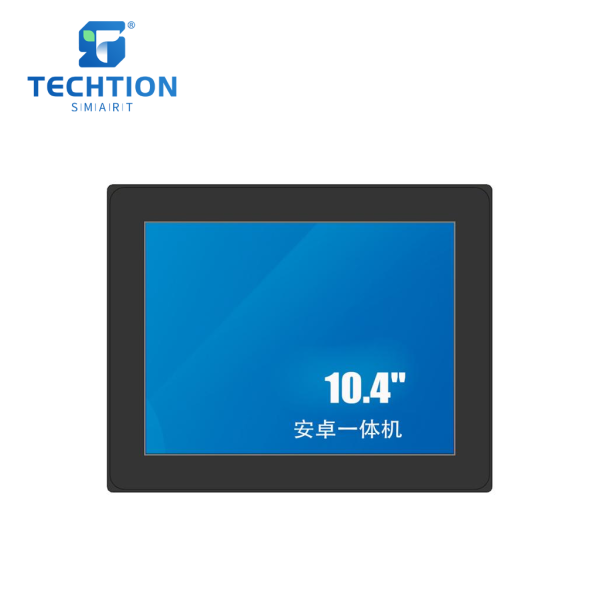

10.4 inch Android AIO Panel PC

• 4:3 wide screen, equipped with a high-speed intelligent Android system

• Thin, aesthetically pleasing, and strong heat dissipation

• Semi-enclosed, fanless design for the entire unit

• IP65 dustproof and waterproof rating (front panel)

• Supports both portrait and landscape display modes

• Capable of continuous 24-hour non-stop operation

• Constructed from aluminum alloy and sheet metal

• Excellent resistance to vibration and impact, suitable for harsh environments

• Supports RTC real-time clock, scheduled power on/off, network wake-up, and RS232 serial port centralized control

• Applications: artificial intelligence devices, self-service equipment, smart medical terminals, smart industrial control, etc.

Back PreviousNext
Product Details
Main Parameters
Android solution
Model TS-104ACBJ CHIP RK3399
Product type Android AIO Panel PC CPU Cortex-A72*2+A53*4@1.8GHz
Strcuture Aluminum frame +Sheet metal back shell /Black GPU Mali-T860
Brand TECHTION NPU /
Display Parameters
 DDR DDR3-4G
LCD Size 10.4” EMMC 32G
Active Area 210.432(H) *157.824(V)mm OS Default Android9.0（Android 7.1 /10.0 optional )
Resolution 1024*768 LAN 10/100/1000M
Contrast Ratio ####### WiFi 2.4G
Picture Aatio 4:03 B/T 4.1
Viewing Angle 80/80/80/80(Typ.)(CR≥10) System upgrade USB
Response Time 18 ms
Power consumption
Backlight Type E-LED Standby power（w） ≤0.5W
Brightness 250cd/m2 Power consumption（w） ≤16W
Life span 50000H Supply Voltage（v）     DC12V
Protection IP65 (front panel) Audio output power 8Ω*2W
Touch parameters

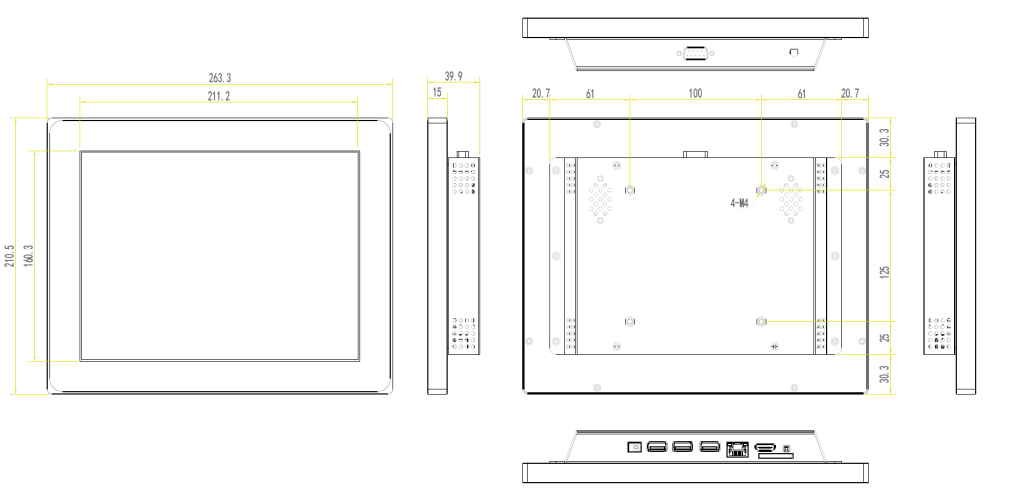

Dimensions
Touch Types Capacitive(G+G) –Optical Bonding CN Packing (mm) 334*287*156mm
Clicks Capacitive＞50 million times Product Dimensions(mm) 263.3×201.5x 39.9mm
Surface hardness 6H NW(kg) 2.0kg
Touch Point 10 points GW(kg) 2.8kg
Type of glass Chemically strengthened glass Wall mounting holes(mm) 100*100 (M4*8mm*4pcs）
Transmittance ＞85% Installation wall-mounted/table-top/hanging
 Graph Supported Format
Accessories
Video format mp4、mkv、wmv、mov、flv3 Power Cable *1
Picture format BMP、JPEG、PNG、GIF Power adapter *1    12V/5A  (AC 100-240V  50/60Hz)
Environment
 Wifi antenna *1
Operating temperature -10℃~60℃
Port parameters
Operating humidity 10%~80% RH Non-Condensing External Connectors EARPHONE*1，RJ45*1，USB3.0*1(OTG)，USB3.0*1，DC12*1，COM*1，Wifi antenna*1，HDMI OUT*1
Storage temperature -20℃~70℃
Storage humidity 10%~80% RH Non-Condensing
