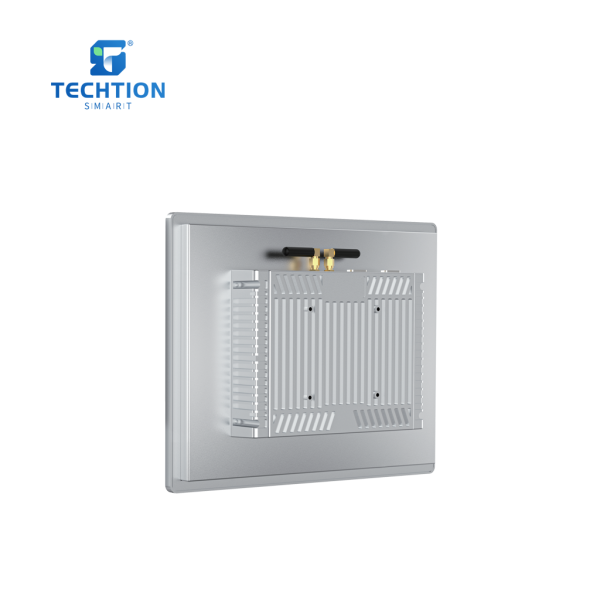

11.6 inch X86 Panel PC

• 16:9 wide screen, equipped with high-speed Windows system.
• Beautiful appearance/wide temperature/wear resistance.
• The whole machine is fully enclosed and fanless design, strong heat dissipation, energy saving and quiet.
• Integrated barcode scanning function, supports scanning internationally used 1D Barcode and 2D Barcode.
• Continuous operation 24 hours a day.
• It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
• Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
• Applications: Smart factories, smart warehousing and logistics, etc.

Back PreviousNext
Product Details
Main Parameters
Mainboard solution
Model TS-116PCNK CHIP J4125
Product Type X86 Panel PC CPU Intel Celeron J4125 @ 2.0GHz
Frame+Structure Aluminum Die-Casting GPU Intel® UHD Graphics 600
Brand TECHTION DDR4 4G (Max 8G)
Display Parameters
 EMMC 128G SSD (Optional:256G/512G)
LCD Size 11.6” OS Windows 10 Trial Version（Windows 11/Linux optional）
Active Area 256.32(W)×144.18(H) mm LAN 10/100/1000M(8111H*2)
Resolution 1920*1080 WiFi 2.4G/5G
Contrast Ratio 1000:1 B/T Support
Picture Aatio 16:9 I/O Ports USB*4,VGA*1,HDMI*1,RS232*2,LAN*1,Audio Out*1,DC IN*1
Viewing Angle 89/89/89/89(Typ.)(CR≥10)
Power consumption
Response Time 30 ms （Tr+Td） Standby Power（w） ≤0.5W
Backlight Type E-LED Power Consumption（w） ≤40W
Brightness 280 cd/m2 Supply Voltage（v） DC12V
Life Span 50000H
Dimensions
IP Rating IP65 (Front Panel) Packing Size (mm) 450*340*210mm
Touch parameters
 Product Dimensions(mm) 297.5*235.4*56.05mm
Touch Types Capacitive(G+G) NW(kg) About 2.85kg
Clicks Capacitive＞50 million times GW(kg) 3.65kg
Surface Hardness 6H VESA(mm) 75*75mm
Touch Point 10 points Installation Wall Mounted /Hanging/Desktop
Type of Glass Chemically strengthened glass
Accessories
Transmittance ＞87% AC Power Cable *1
Environment
 Power Adapter *1  12V/5A  (AC 100-240V  50/60Hz)
Operating Temperature -10℃~60℃ RS232 Cable *1
Operating Humidity 5%～95% RH Non-Condensing Network Cable *1
Storage Temperature -20℃~70℃ Antenna *2
Storage Humidity 5%~95% RH Non-Condensing
Other functional modules
Shake-proof 5-19Hz/10mm;19-200Hz/1.0g Camera 200W
Impact resistance 10g acceleration, 11ms duration RFID Module 125KHz LF /13.56MHz HF
Barcode Scanner 1D/2D (Distance: 0~10cm)
