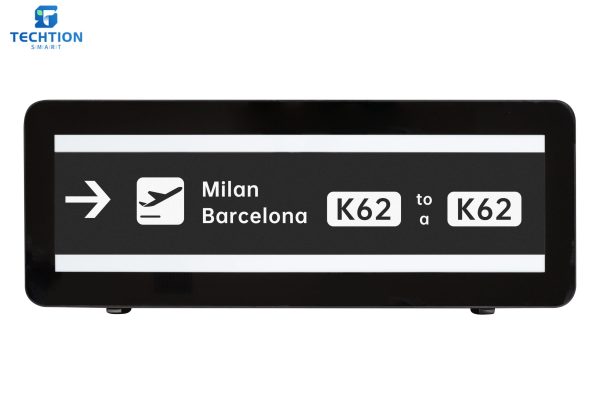

28 inch E-Paper Display Terminal
Size:28″
The whole machine is made of metal, resistant to high temperature, strong electrical interference, IP65 waterproof and dustproof. Besides,it adopt optical bonding front light mode, ultra-low power consumption, energy saving and emission reduction.
| Quick Details: | |||
| CPU | Cortex-A7*4@1.2GHz | DDR | 1G |
| EMMC | 8G | Panel size | 28″ |
| Touch Type | No Touch | Resolution | 3840*1080 |
| Material | Sheet Metal Frame/Black | IP Grade | IP65 |
Features:
- 1. The whole machine is made of metal, resistant to high temperature, strong electrical interference, IP65 waterproof and dustproof.
2. Using professional Eink technology, the viewing angle can reach 178°, close to horizontal.
3. Adopt optical bonding front light mode, ultra-low power consumption, energy saving, and emission reduction.
4. Readable in sunlight, the stronger the sunlight, the better the display effect, and the screen has no blue light and screen flicker, comfortable and eye-protecting.
5. High physical resolution of 3840*1080, the vision is more delicate
6. Supports 24-hour continuous operation (built-in lithium battery for energy storage), and uses front light to fill in the light at night.
7. The product adopts an industrial-grade design, has good shock resistance and impact resistance, and is suitable for harsh outdoor environments.
8. Applications: Outdoor smart buses, subways, airports, and other outdoor public areas information display screen.
| Main Parameters | Android Solution | |||
| Model | TS-280EPD | Chip | A40i | |
| Product Type | E-PAPER DISPLAY TERMINAL | CPU | Cortex-A7*4@1.2GHz | |
| Frame | Sheet Metal Frame/Black | GPU | ARM Mali-400 MP2 | |
| Display Parameters | DDR | 1G | ||
| LCD Size | 28” | EMMC | 8G | |
| Active Area | 638.52(H)×192.24(V) mm | OS | Android7.1 | |
| Resolution | 3840*1080 | LAN | 10/100M | |
| Contrast Ratio | 10:1 | WiFi | 2.4G | |
| Pixel Pitch | 0.166×0.166mm | B/T | 4 | |
| Viewing Angle | 178°(H)×178°(V) | Brushing Method | USB and APP | |
| Color | Black and white,16 grayscale | Optional | 4G Module, Solar panels | |
| Refresh Time | 2 ms | I/O Ports | RJ45*1,,HDMI OUT*1,USB2.0 *2(OTG*1),TF Card*1,SIM Card*1, DC *1 | |
| Frontlight Type | E-LED | Button | POWER, UP, DOWM, RESET | |
| Glass | 3mm/ optical bonding/Anti-UV | Dimensions | ||
| Frontlight Power | 1.26W (typ), 6V/0.21A | Packing Size (mm) | TBD | |

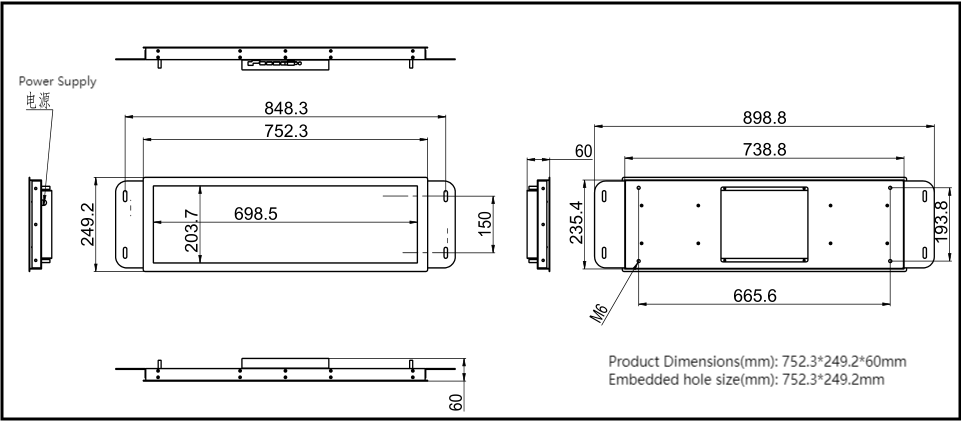

| IP Level | IP65 | Product Dimensions(mm) | 770*290*68.5mm | |
| IK Level | IK08 | NW(kg) | 11.25kg | |
| Life Span | 30000H | GW(kg) | TBD | |

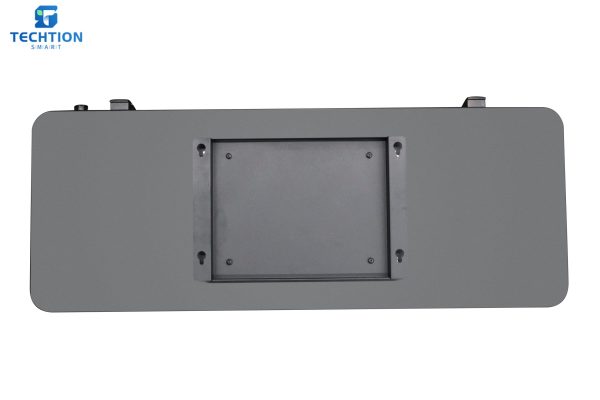

| Power Consumption | VESA Holes(mm) | 275*150mm | ||
| Standby Power（w） | ≤0.001W | Installation | Hanging and Wall mounting (Default Wall Mounting) | |
| Power Consumption（w） | ≤6W（Max） | Environment | ||
| Supply Voltage（v） | DC20V | Operating Temperature | -15℃~65℃ | |
| Accessories | Operating Humidity | 20%～90% RH Non-Condensing | ||
| Power Cable | 1 (AC 100-240V 50/60Hz) | Storage Temperature | -25℃~70℃ | |
| Adapter | 20V/4.5A or Solar Powered（Optional) | Storage Humidity | 20%~90% RH Non-Condensing | |
| Wall Mount Bracket | 1 (with screws) | Warranty Card | 1 | |
