31.2 inch E-Paper Display Terminal
Size:31.2″
The whole machine is made of metal, resistant to high temperature, strong electrical interference, IP65 waterproof and dustproof. Besides, it adopts optical bonding front light mode, ultra-low power consumption, energy saving and emission reduction.
| Quick Details: | |||
| CPU | Cortex-A7*4@1.2GHz | DDR | 1G |
| EMMC | 8G | Panel size | 31.2″ |
| Touch Type | No Touch | Resolution | 3840*1080 |
| Material | Sheet Metal Frame/Black | IP Grade | IP65 |
Features:
- 1. The whole machine is made of metal, resistant to high temperature, strong electrical interference, IP65 waterproof and dustproof.
2. Using professional Eink technology, the viewing angle can reach 178°, close to horizontal.
3. Adopt optical bonding front light mode, ultra-low power consumption, energy saving, and emission reduction.
4. Readable in sunlight, the stronger the sunlight, the better the display effect, and the screen has no blue light and screen flicker, comfortable and eye-protecting.
5. High physical resolution of 3840*1080, the vision is more delicate
6. Supports 24-hour continuous operation (built-in lithium battery for energy storage), and uses front light to fill in the light at night.
7. The product adopts an industrial-grade design, has good shock resistance and impact resistance, and is suitable for harsh outdoor environments.
8. Applications: Outdoor smart buses, subways, airports, and other outdoor public areas information display screen.
| Main Parameters | Android Solution | |||
| Model | TS-312EPD | Chip | A40i | |
| Product Type | E-PAPER DISPLAY TERMINAL | CPU | Cortex-A7*4@1.2GHz | |
| Frame | Sheet Metal Frame/Black | GPU | ARM Mali-400 MP2 | |
| Display Parameters | DDR | 1G | ||
| LCD Size | 31.2” | EMMC | 8G | |
| Active Area | 691.2(H)×388.8V) mm | OS | Android7.1 | |
| Resolution | 2560*1440 | LAN | 10/100M | |
| Contrast Ratio | 12:1 | WiFi | 2.4G | |
| Aspect Ratio | 16:9 | B/T | 4 | |
| Pixel Pitch | 0.27×0.27mm | Brushing Method | USB and APP | |
| Viewing Angle | 178°(H)×178°(V) | Optional | 4G Module, Solar panels | |
| Color | Black and White,16 grayscale | I/O Ports | RJ45*1,,HDMI OUT*1,USB2.0 *2(OTG*1),TF Card*1,SIM Card*1, DC *1 | |
| Refresh Rate | 50HZ (Max) | Button | POWER, UP, DOWM, RESET | |
| Frontlight Type | E-LED | Dimensions | ||
| Glass | 3mm/ Optical Bonding/Anti-UV/AG | Packing Size (mm) | 950*200*750mm (Wood Case) | |

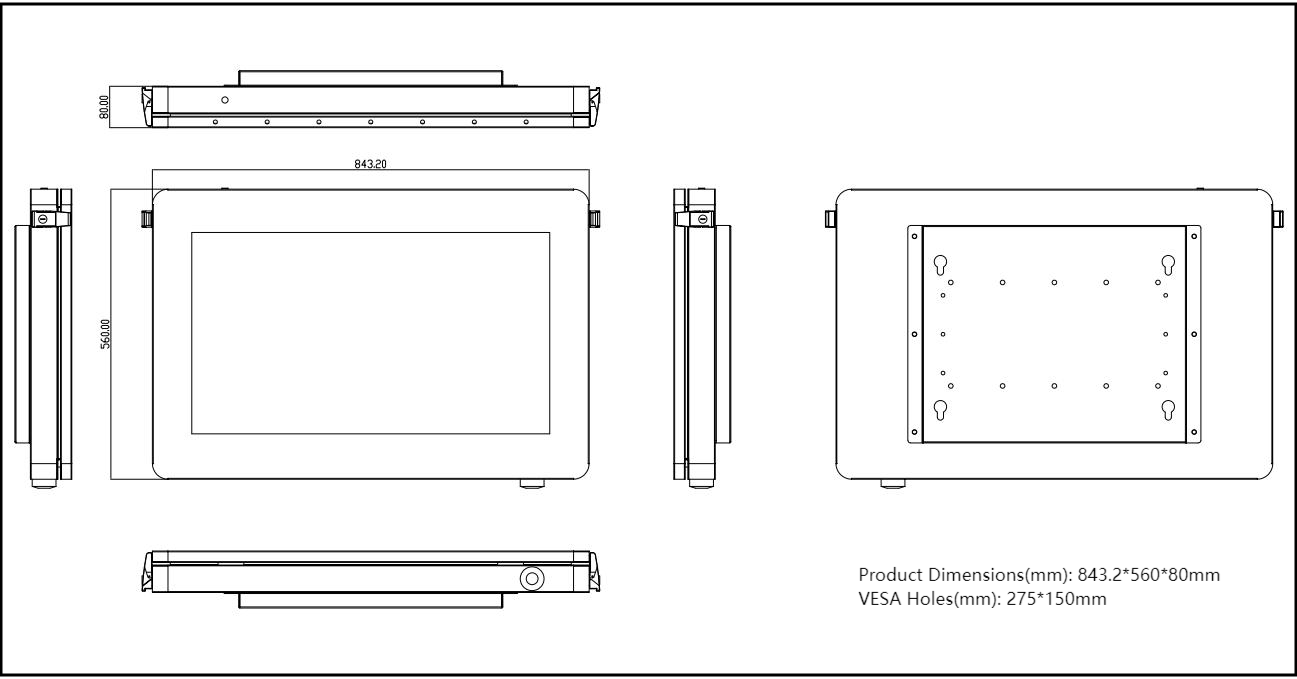

| Frontlight Power | 7.8W (Max) | Product Dimensions(mm) | 843.2*560*80mm | |
| IP Level | IP65 | NW(kg) | 28kg | |
| IK Level | IK08 | GW(kg) | 38.5TBD | |
| Life Span | 30000H | VESA Holes(mm) | 275*150mm | |
| Power Consumption | Installation | Hanging and Wall mounting (Default Wall Mounting) | ||
| Standby Power（w） | ≤0.001W | Environment | ||
| Power Consumption（w） | ≤15.36W（Max） | Operating Temperature | -15℃~65℃ | |
| Supply Voltage（v） | DC20V | Operating Humidity | 20%～90% RH Non-Condensing | |
| Accessories | Storage Temperature | -25℃~70℃ | ||
| Power Cable | 1 (AC 100-240V 50/60Hz) | Storage Humidity | 20%~90% RH Non-Condensing | |
| Adapter | DC5V-20V or Solar Powered（Optional) | Warranty Card | 1 | |
| Wall Mount Bracket | 1 (with screws) | |||
