21.5″ Digital Signage



  • The whole machine has an all-metal structure, preventing radiation, magnetic fields, and strong electric interference.
  • Adopting professional IPS screen technology, large viewing angle, fast response speed and high color reproduction.
  • Adopting E-LED backlight mode, the brightness is more uniform.
  • High physical resolution of 1920*1080, the vision is more delicate.
  • Viewing angle up to 178°, close to horizontal.
  • Continuous operation 24 hours a day.
  • Industrial-grade design, high reliability, high stability, low power consumption.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • Supports RTC real-time clock, scheduled power on and off, network wake-up.
  • Applications: smart transportation (bus, metro etc).
Back
Product Details
Main Parameters
Android solution
Model TS-215THD Chip T972
Product type Digital Signage CPU Cortex-A55*4@1.9GHz
Frame Sheet metal Frame / White GPU Mali-G31
Brand TECHTION DDR 2GB
Display Parameters
 EMMC 32GB
LCD Size 21.5” OS Android9.0
LCD Type IPS LAN 10/100M
Active Area 476.064 (H) x 267.786 (V) mm WiFi 2.4G (Wi-Fi 802.11b/g/n)
Resolution 1920*1080 B/T 4.2
Contrast Ratio 3000:1 System upgrade USB\TF Card
Viewing Angle 89/89/89/89(Typ.)(CR≥10) 4G module Optional
Response Time 18 ms (Typ., on/off) I/O Ports USB*1/USB(OTG)*1/TF *1/Audio*1/LAN*1/HDMI-IN*1/DC*1
Backlight Type E-LED External interface DC*1/Speaker*1/RS485*1
LCM Brightness <400cd/m2 (typ)
Power Consumption
Life span <30000H Standby power（w） ≤1W
Cover Glass Parameters
 Power consumption（w） ≤25W
Type of glass Chemically/Thermally Tempered glass Supply Voltage（v） DC9-36V (Rated: DC 24V）
Thickness of glass 2mm Tempered Glass with AG Audio output power 8Ω*5W(Optional)
Surface hardness 7H
Accessories
Transmittance ＞85% Fixed part Pole clamp *2PCS
IP Rating IP65 (Front Panel) Wifi antenna *1PCS

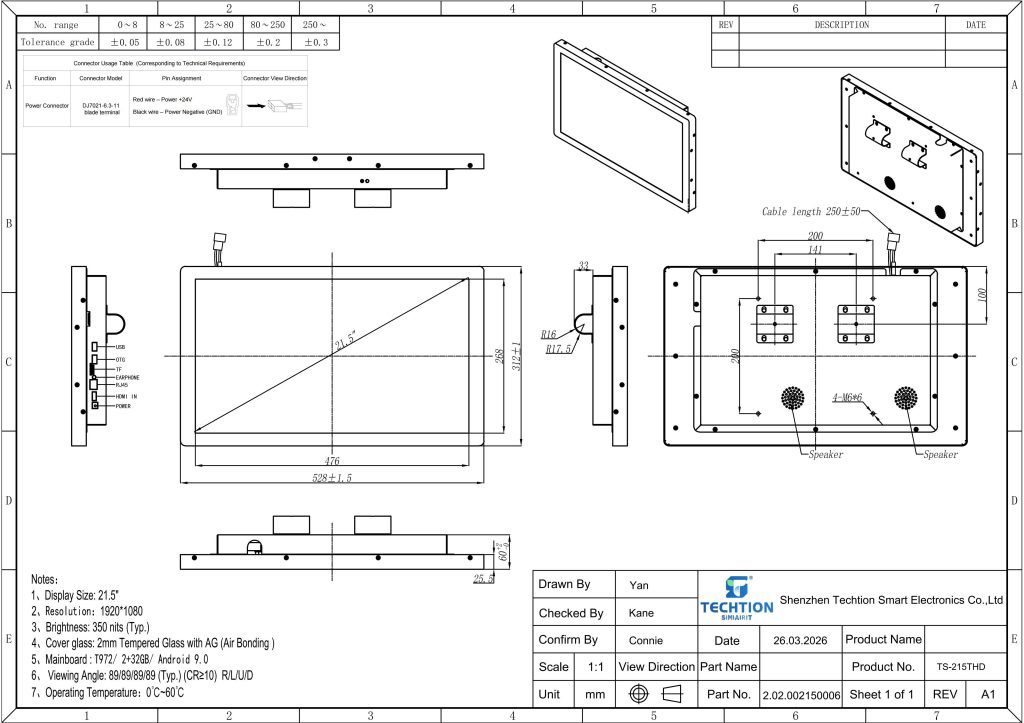

Dimensions
 USB Cable *1PCS
Packing Size (mm) 600*230*390mm ( 2 units) VESA Screws M6*6*4PCS
Product Dimensions(mm) 528*312*60 mm (without pole clamp)
Environment
NW(kg) About 5.7kg/Unit Operating temperature 0℃~60℃
GW(kg) About 12.7kg (2units built-in) Operating humidity 15%～85% RH Non-Condensing
VESA Holes 200*200mm Storage temperature -10℃~70℃
Installation VESA/Pole clamp mounting Storage humidity 10%~90% RH Non-Condensing
