31.5″ Chlcd(indoor)

  • 31.5″ full colors TFT Ch-LCD (Cholesteric LCD), optical bonding, 3mm tempered glass.
  • High physical resolution of 1920*1080, the vision is more delicate.
  • Featuring bistable technology, the display retains the image even when powered off and consumes extremely little power.
  • Reflective LCD requires no backlight module, enabling a thinner profile.
  • The whole machine has an all-metal structure, preventing radiation, magnetic fields, and strong electric interference.
  • Continuous operation 24 hours a day.
  • Industrial-grade design, high reliability, high stability, low power consumption.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

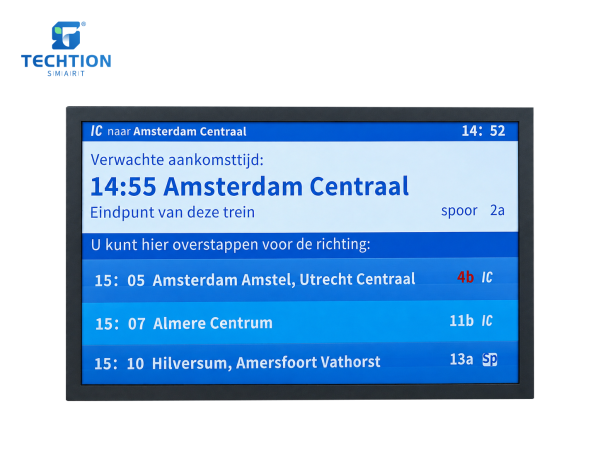

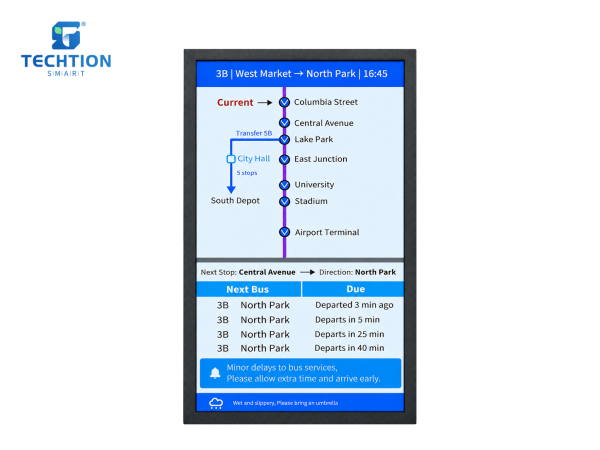

  • Applications: Indoor Public Transportation Hubs, Airports, Railway & Metro Stations, Bus Transit Hubs, Waiting Areas, and Other Smart Transportation Applications.
Back Previous
Product Details
Main Parameters Mainboard Solution
Model TS-315PHDC Chip RK3566P
Product type Digital signage（Cholesteric LCD） CPU Cortex-A55*4@1.8GHz
Structure Sheet metal Frame GPU Mali-G52
Brand TECHTION DDR 2GB
Display Parameters EMMC 32GB
LCD Size 31.5” OS Android14.0
Panel Type Cholesteric LCD LAN 10/100M
Active Area 392.445(W)×697.68(H) mm WiFi 2.4G (Wi-Fi 802.11b/g/n)
Resolution 1920*1080 B/T 4.2
Contrast Ratio 5.5:1 System upgrade USB\TF Card
Orientation Landscape 4G module Optional
Update time 1s External Connectors USB3.0*1/USB(OTG)*1/TF *1/Audio*1/LAN*1/HDMI-OUT*1/SPI*1/RS232*1/RS485*1/Speaker*1/DC*1
Reflectance 19.5% Power consumption
IP Rating IP65 (front screen) Turn Off Front Light Standby Power(Not Refresh Image)：4W
Cover Glass Work Power(Continuous Image Updating)：6W
Type of glass Tempered Glass Average Power(Once updating per minute)：4.1W
Cover Lens Thickness 3mm Single Updating Time 1s~3s,typ 2.5s
Surface Technology AG Supply Voltage（v） DC12
Transmittance ＞90% Audio output power 8Ω*5W(Optional)
Accessories Dimensions
Wall mounting Bracket TBD Packing Size (mm) TBD

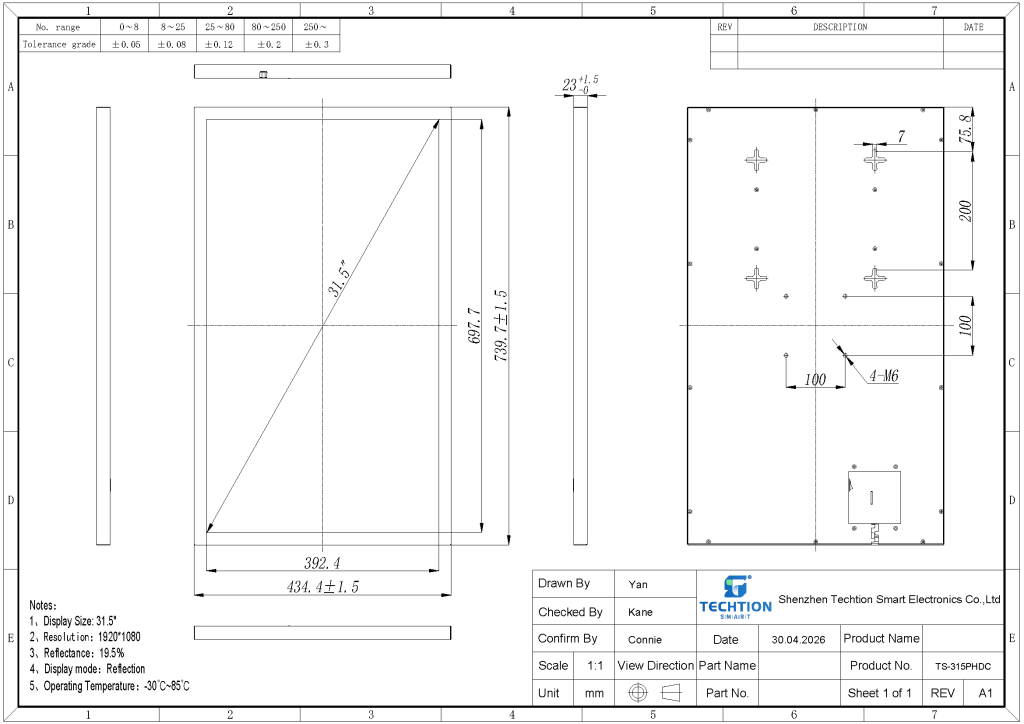

Allen Stud TBD Product Dimensions(mm) 742*437*30mm (without wall bracket)
Wifi antenna TBD NW(kg) TBD
Environment GW(kg) TBD

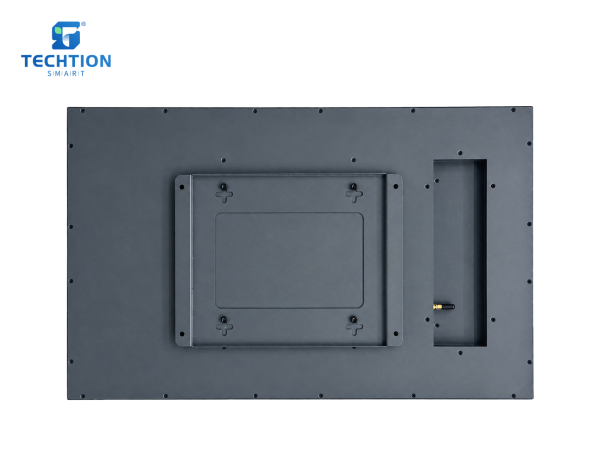

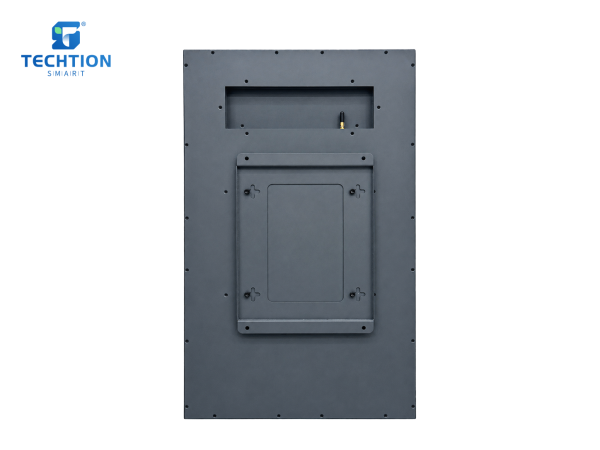

Operating temperature -30℃~85℃ Installation Wall Mount Bracket
Operating humidity 5%~95% RH Non-Condensing
Storage temperature -30℃~85℃
Storage humidity 5%~95% RH Non-Condensing
