55” Outdoor Display Terminal



  • 55″ LG wide-temperature and high-brightness LCD screen, optical bonding; brightness can be adjusted through the mainboard menu.
  • Brightness 3000cd/㎡, with 5mm tempered explosion-proof glass, Anti-reflective, Anti-glare, UV resistant, IR Block, Sun Protection.
  • Modular internal structure, reinforced with ribs, neat wiring; aluminum profile shell, double-layer spray outdoor powder; continuous operation 24 hours a day, supports portrait and landscape display modes.
  • Galvanized steel plate + outdoor powder spray paint; IP66, rainproof, dustproof, sunproof, maintenance-free; fanless aluminum plate for heat dissipation.
  • Intelligent Android mainboard, supports Wifi, RJ45, full HD 1920×1080 decoding.
  • Applications: Stores, pedestrian streets, shopping malls, hotels, squares, schools, parks, enterprises and institutions, communities, bus stops, etc.
Back PreviousNext
Product Details
Main Parameters Board Solution
Model TS-550THD Chip RK3568
Product type OUTDOOR DISPLAY TERMINAL CPU Core A55*4 @2.0GHz
Frame Closed Sealed /Galvanized steel plate/(Black) GPU Mali-G52 GPU
Brand TECHTION RAM 2G
Display Parameters ROM 32G
LCD Size 55” OS Android11
Active Area 1210(W) ×681(H) mm LAN 100M
Resolution 1920*1080 Wi Fi 2.4G/5G
Contrast Ratio 1000:1 B/T 5

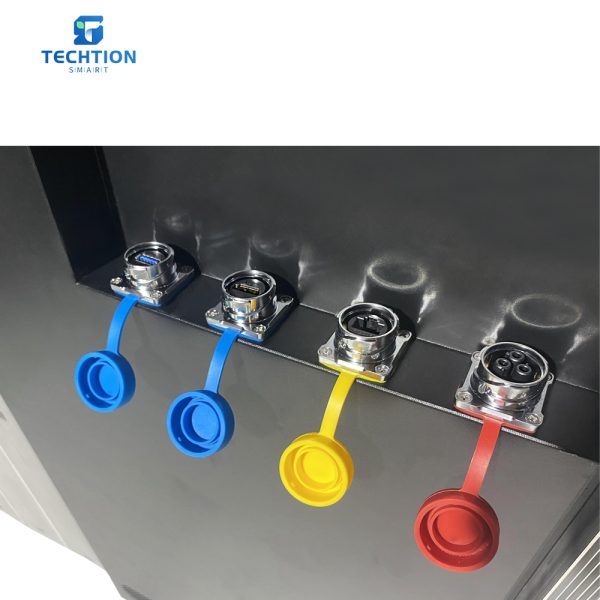

Pixel pitch 0.210 mm x 0.630 mm External Connectors USB2.0 *1,RJ45*1,HDMI*1, AC*1,Wifi *1
Viewing Angle 178(H)*178(V) Power consumption
Orientation Landscape and Portrait Power consumption（w） 250W(Max)
Response Time 9ms（ G to G BW） Supply Voltage（v） AC100-240V ，50/60 Hz
Backlight Type D-LED Audio output power 8Ω 5W*2（ Optional）
Brightness ≥3000cd/m2 (typ) Accessories
Life span 50000H Power Cable 1 (AC 100-240V   50/60Hz)
IP Rating IP66 HDMI Cable 1
Environment Network Cable *1
Operating temperature -20℃ ~60℃ Touch parameters
Operating humidity 10% ～90% RH Non-Condensing Touch Types Capacitive(G+G) -Optical Bonding
Storage temperature -20℃ ~60℃ Clicks Capacitive＞50 million times
Storage humidity 5%~90% RH Non-Condensing Cover Lens Thickness 5mm
Dimensions Surface Technology Anti-reflective,Anti-glare,UV resistant, IR blocker
Packing Size (mm) 1620*260*1000mm（Wood Case) Touch Point 10 points

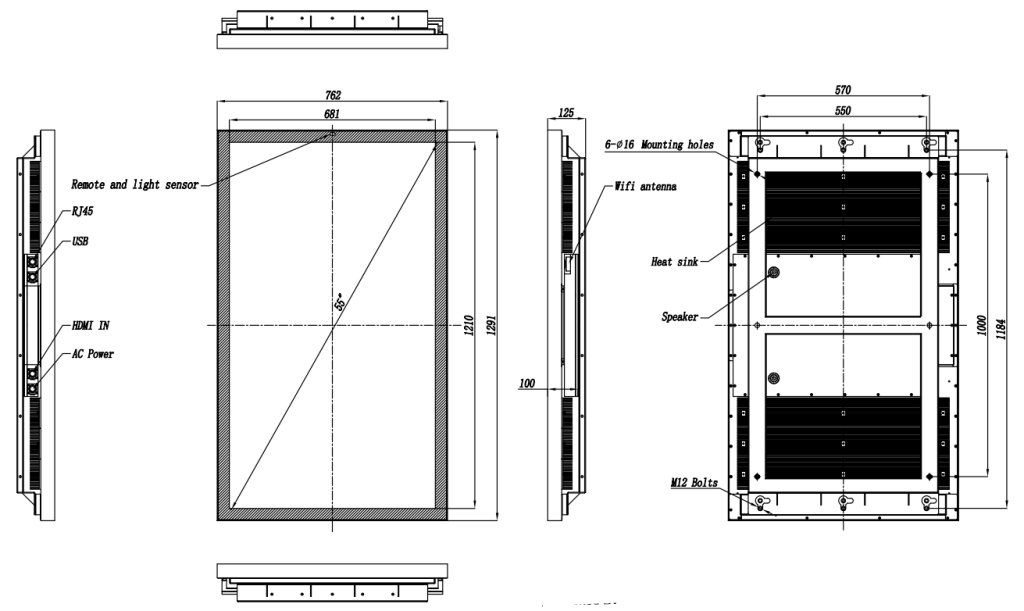

Product Dimensions 1291*762*125mm Type of glass Chemically strengthened
NW(kg) 65 kg Transmittance > 85%
GW(kg) 100 kg
Installation Wall Mounting
