50 inch Outdoor Floor Standing Display
Size: 50″
The whole machine adopts a modular design, and the internal display screen, heat dissipation components, and electronic components can be easily repaired by opening the door.
| Quick Details: | |||
| CPU | RK3288+Cortex-A17*4 @1.8GHz | DDR | 2G |
| EMMC | 16G | Panel size | 50″ |
| Touch Type | No Touch | Brightness | 2000-2500cd/m2 (typ) |
| Material | Galvanized steel plate/color customized | IP Grade | IP65 |
Product Details
Features:
- 1.Adopting LG\BOE\AUO brand LCD screen with brightness of 2000-2500cd/m2,high resolution, high contrast, high brightness, greatly enhance the sense of picture hierarchy, and better display picture details.
- 2.It has an automatic ghosting elimination function, UV protection, heat insulation, automatic light-sensing green energy saving, and long-term protection for LCD screens.
- 3.Long lifespan, 7*24H continuous operation, with a life span of up to 50,000 hours.
- 4.Electrical protection: surge protection, leakage, overload, overvoltage protection, high temperature protection, etc.
- 5.Application: Stores, pedestrian streets, shopping malls, hotels, squares, schools, parks, enterprises and institutions, communities, bus stops, etc.
| Main parameters | Mainboard | |||
| Model | TS-500FHD | Chip | RK3288 (Optional:X86/Monitor) | |
| Product type | OUTDOOR FLOOR STANDING DISPLAY | CPU | Cortex-A17*4 @1.8GHz | |
| Frame | Galvanized steel plate/color customized | GPU | ARM Mali-T764 | |
| Display parameters | DDR | 2G | ||
| LCD Size | 49” | EMMC | 16G | |
| Active Area | 1073.8(H) ×604(V)mm | OS | Android7.1 | |
| Resolution | 1920*1080 | LAN | 10/100M | |
| Contrast Ratio | 1300:1 | WiFi | 2.4G/5G | |
| Pixel pitch | 0.5593 mm x 0.5593mm | B/T | 5 | |
| Viewing Angle | 89/89/89/89 （typ) CR>10 | Internal Connectors | USB2.0 *2,RJ45*1,HDMI*1, AC*1/Wifi *1(Extenal) | |
| Orientation | Portrait | Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV | |
| Response Time | 8 ms | Video format | GIF, JPEG, PNG, BMP | |
| Tempered Glass | 5mm | Other format | MP3, 24bit linear PCM7.1 PDF/ RSS News/Weather | |
| Backlight Type | D-LED | Networking methods | LAN wired network, WiFi wireless network | |
| Brightness | 2000-2500cd/m2 (typ) | Update methods | Network remote update, USB flash drive update | |
| Life span | 50000H | Timer on/off | Support to set any time period | |
| IP Level | IP65 | Power consumption | ||
| Working Environment | Power consumption（w） | ≤400W(Max) | ||
| Operating temperature | -20℃~60℃ | Supply Voltage（v） | AC110-220V，50/60 Hz | |
| Operating humidity | 10%～90% RH Non-Condensing | Audio output power | 8Ω10W*2 | |
| Storage temperature | -20℃~70℃ | Dimensions | ||
| Storage humidity | 5%~95% RH Non-Condensing | Packing Size (mm) | 2050*990*470mm | |

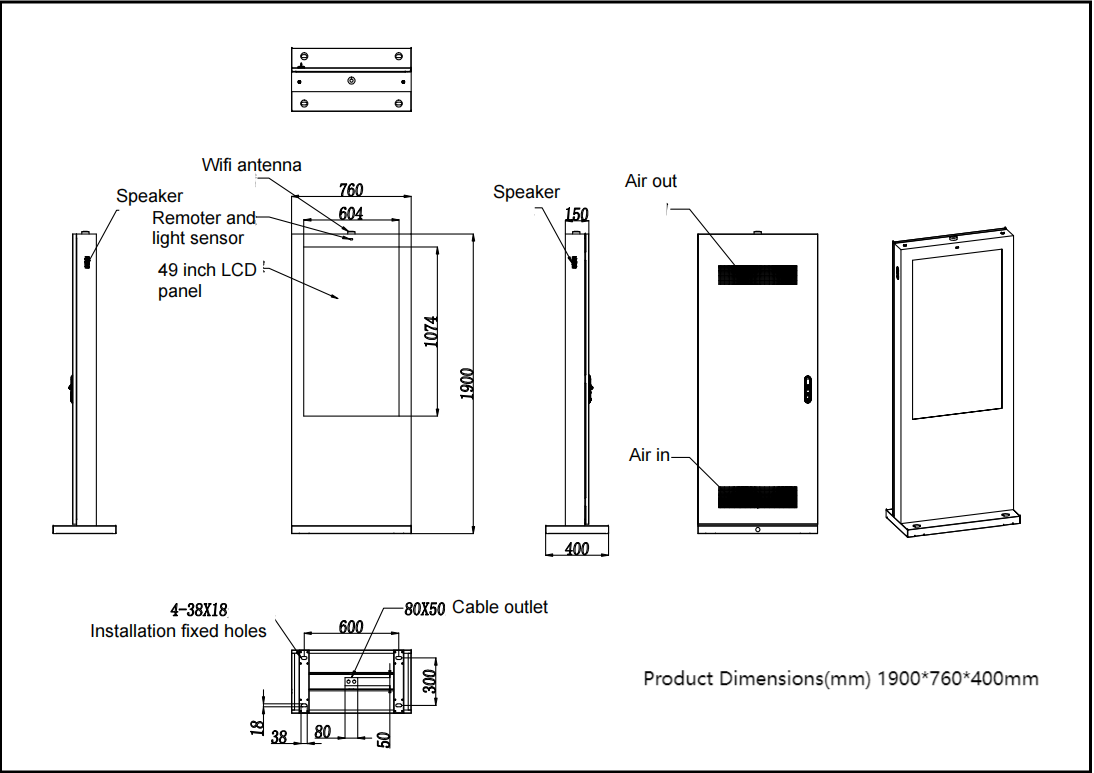

| Noise | <65dB | Product Dimensions(mm) | 1900*760*400mm | |
| Optional | NW(kg) | 90kg | ||
| Networking methods | 4G Module/4G Router Wireless Networking | GW(kg) | 130kg | |
| G+F Nano Touch Film/G+G Capacitive Touch Screen | Installation | Floor Standing | ||
