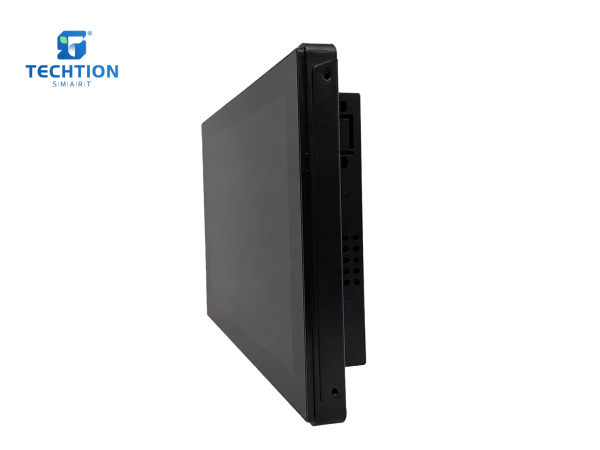

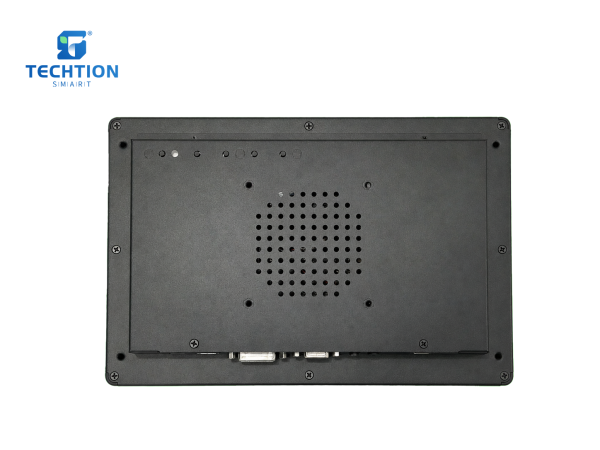

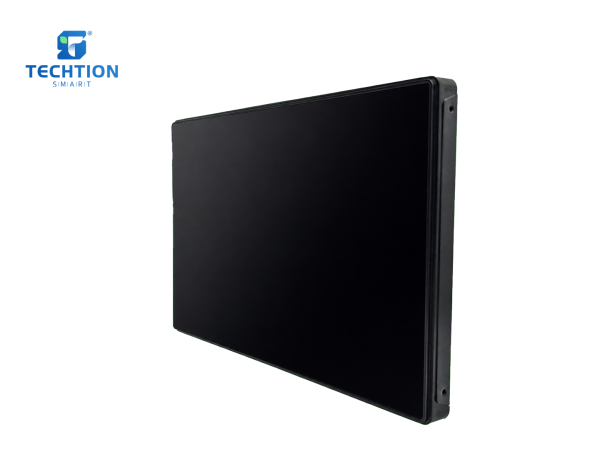

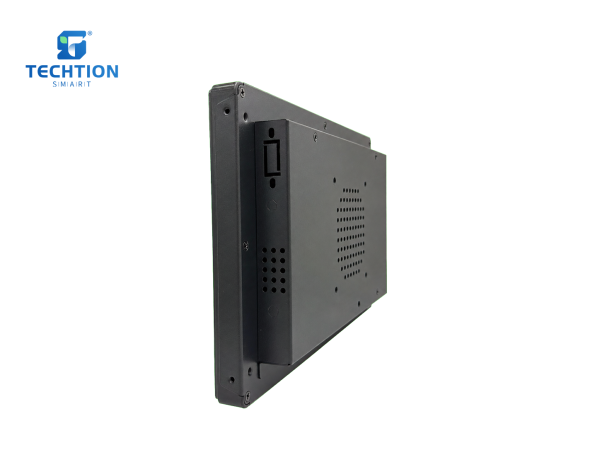

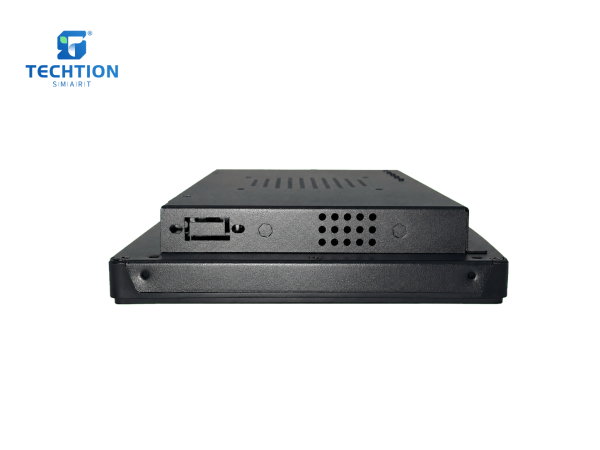

10.1 inch industrial monitor
• 16:10 wide screen, Resolution 1280×800, HD picture display
• Double anti-fall design, avoid contact caused by failure
• Embedded and fitted beautifully, 2.7mm low level panel with narrow sides
• HD restoration, smooth touch, wear resistance and impact resistance
• Supports portrait and landscape display modes
• Multiple industrial protection, 7×24H durable and stable performance
• Supports HDMI, VGA and Headphone Output

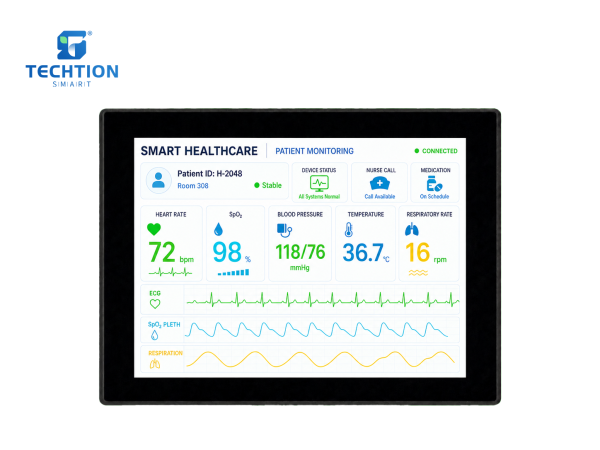

• Applications: artificial intelligence terminals, self-service terminals, smart medical terminals, smart industry, etc.
Product Details
| Main Parameters | Power Consumption | |||
| Model | TS-101MCNK | Standby Power | <= 0.5 W | |
| Product Type | Industrial Monitor | Power Consumption | <= 25 W | |
| Structure | Plastic front bezel + galvanized electrolytic steel plate | Supply Voltage | DC 12 V; DC 9-36 V optional | |
| Brand | TECHTION | Audio Output Power | 4 Ω x 2 W (optional) | |
| Display Parameters | Dimensions | |||
| LCD Size | 10.1 in | Packing Size | 365 x 130 x 268 mm | |
| Active Area | 216.96 (H) x 135.60 (V) mm | Product Dimensions | 262.8 x 174.8 x 37.5 mm (bracket excluded) | |
| Resolution | 1280 x 800 | Net Weight | 1.35 kg | |
| Contrast Ratio | 1000:1 | Gross Weight | 2.4 kg | |
| Aspect Ratio | 16:10 | Embedded Cutout Size | 258.1 x 170.1 mm | |
| Viewing Angle | 80/80/80/80 (Typ.), CR >= 10 | Installation | Embedded | |
| Response Time | 35 ms | Accessories | ||
| Backlight Type | E-LED | Power Cable | Qty. 1 (AC 100-240 V, 50/60 Hz) | |
| Brightness | 1000 cd/m² | Power Adapter | Qty. 1 (12 V / 5 A) | |
| Backlight Life | 50,000 hours | HDMI Cable | Qty. 1 | |
| IP Rating | IP65 (front screen) | Touch USB Cable | Qty. 1 | |
| Touch Parameters | VGA Cable | Optional | ||
| Touch Type | PCAP (G+G), optical bonding | Fixing Parts | 2 sheet-metal fixing strips + 4 screws | |
| Touch Durability | > 50 million activations | Environment | ||
| Surface Hardness | 7H | Operating Temperature | -20°C to +70°C | |
| Touch Points | 10 points | Operating Humidity | 10% to 80% RH, non-condensing | |
| Glass Type | Chemically strengthened glass | Storage Temperature | -20°C to +70°C | |
| Transmittance | > 85% | Storage Humidity | 10% to 90% RH, non-condensing | |
| AD Board | ||||

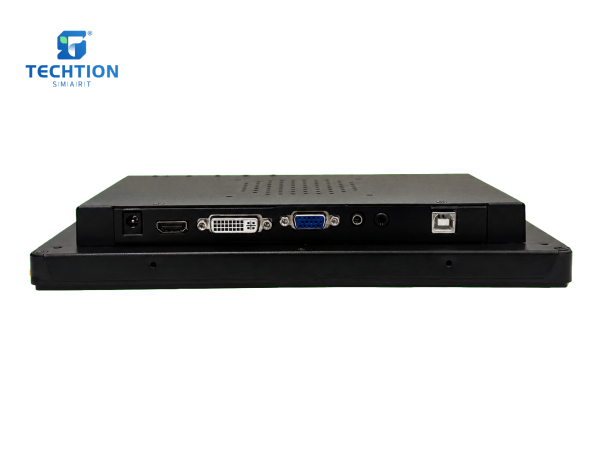

| External Connectors | Touch USB / HDMI / VGA / DVI / DC IN | |||
| OSD Buttons | POWER / DOWN / UP / MENU / AUTO | |||
