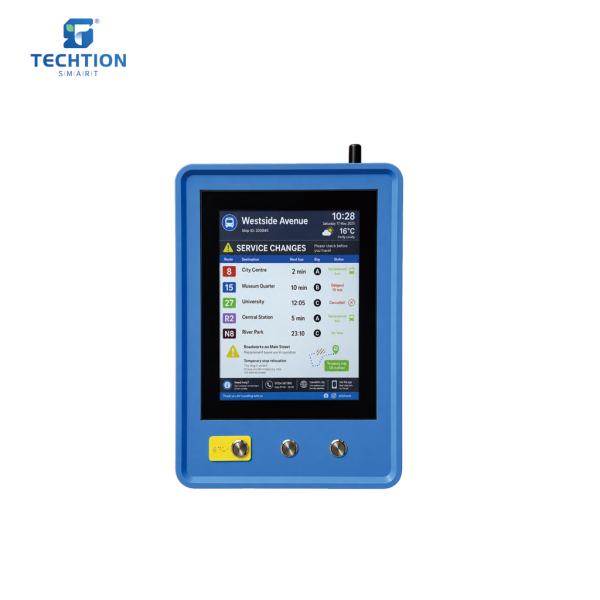

13.3″ ChLCD



  • 13.3″ full colors TFT Ch-LCD (Cholesteric LCD), optical bonding, 3mm tempered glass.
  • High physical resolution of 1650*2200, the vision is more delicate.
  • Featuring bistable technology, the display retains the image even when powered off and consumes extremely little power.
  • Reflective LCD for enhanced visibility in outdoor sunlight, with built-in front lighting to ensure clear viewing even in dark environments.
  • Supports Braille buttons, voice prompts, and user-customizable buttons.
  • The whole machine has an all-metal structure, preventing radiation, magnetic fields, and strong electric interference.
  • Continuous operation 24 hours a day.
  • Industrial-grade design, high reliability, high stability, low power consumption.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • It can be powered by a solar panel and lithium battery system, eliminating the need for mains electricity and power cabling and achieving 100% energy savings.
  • Applications: Bus stops, squares, schools, parks, 24/7 operation.
Back PreviousNext
Product Details

Main Parameters Android solution
Model TS-133PHDC Chip RK3568J
Product type Outdoor Panel PC（Cholesteric LCD） CPU Cortex-A55*4@1.4GHz
Structure Aluminum Alloy Frame GPU Mali-G52
Brand TECHTION DDR 4GB
Display Parameters EMMC 16GB
LCD Size 13.3″ OS Android11.0
Panel Type Cholesteric LCD LAN 10/100M
Active Area 215.62(W)×286.16(H) mm WiFi 2.4G (Wi-Fi 802.11b/g/n)
Resolution 1650*2200 B/T 4.2
Contrast Ratio 9.5:1 System upgrade USB\TF Card
Orientation Portrait 4G module Optional
Update time 200ms External Connectors USB3.0*1/USB(OTG)*1/TF *1/Audio*1/LAN*1/HDMI-OUT*1/SPI*1/RS232*1/RS485*1/Speaker*1/DC*1
Reflectance 19% Power consumption
IP Rating IP65 Power consumption 4W(Image non-refresh state), 6W( image refresh state)
Cover Glass Power built-in front lighting 8W
Type of glass Tempered Glass Supply Voltage（v） DC12
Cover Lens Thickness 3mm Audio output power 8Ω*5W(Optional)
Surface Technology AG Accessories
Transmittance ＞90% Wall mounting Bracket TBD
Dimensions Allen Stud TBD
Packing Size (mm) TBD Wifi antenna TBD

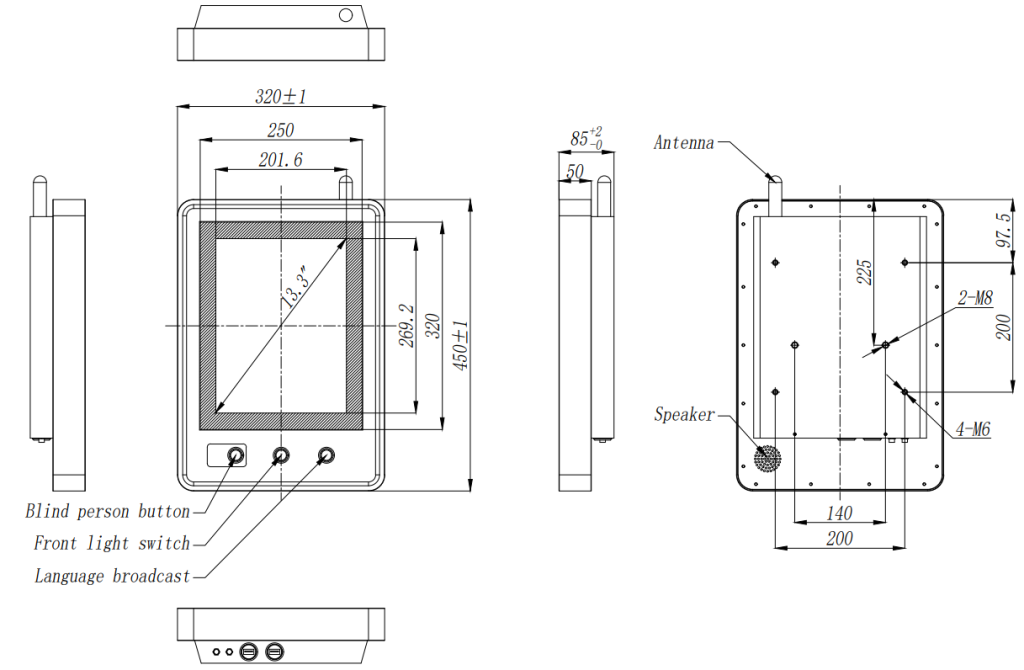

Product Dimensions(mm) 320*450*85mm (without wall bracket) Environment
NW(kg) 5.2kg Operating temperature -30℃~85℃
GW(kg) TBD Operating humidity 5%~95% RH Non-Condensing
VESA Hole Size(mm) 200*200mm Storage temperature -30℃~85℃
Installation Wall Mount/Hanging installation Storage humidity 5%~95% RH Non-Condensing
