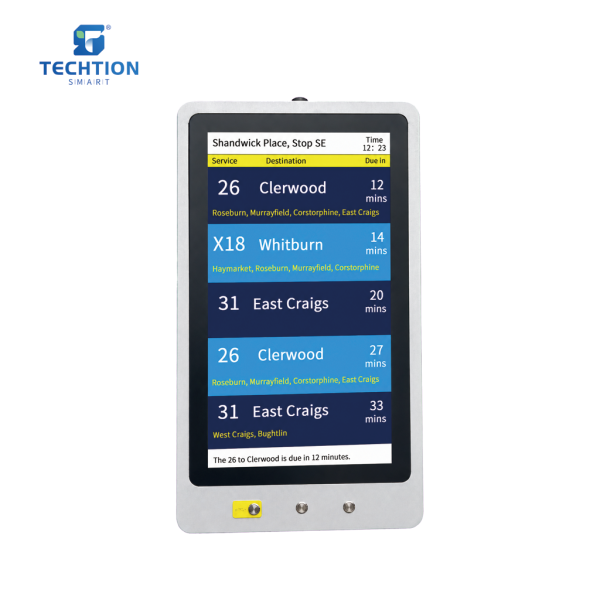

31.5″ ChLCD (Portrait )



  • 31.5″ full colors TFT Ch-LCD (Cholesteric LCD), optical bonding, 3mm tempered glass.
  • High physical resolution of 1080*1920, the vision is more delicate.
  • Featuring bistable technology, the display retains the image even when powered off and consumes extremely little power.
  • Reflective LCD for enhanced visibility in outdoor sunlight, with built-in front lighting to ensure clear viewing even in dark environments.
  • Supports Braille buttons, voice prompts, and user-customizable buttons.
  • The whole machine has an all-metal structure, preventing radiation, magnetic fields, and strong electric interference.
  • Continuous operation 24 hours a day.
  • Industrial-grade design, high reliability, high stability, low power consumption.
  • It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
  • It can be powered by a solar panel and lithium battery system, eliminating the need for mains electricity and power cabling and achieving 100% energy savings.
  • Applications: Bus stops, squares, schools, parks, 24/7 operation.
Back PreviousNext
Product Details
Main Parameters Android solution
ModelTS-315PHDCChipRK3566P
Product typeOutdoor Panel PC（Cholesteric LCD）CPUCortex-A55*4@1.8GHz
StructureAluminum Alloy FrameGPUMali-G52
BrandTECHTIONDDR2GB
Display ParametersEMMC32GB
LCD Size31.5”OSAndroid14.0
Panel TypeCholesteric LCDLAN10/100M
Active Area392.445(W)×697.68(H) mmWiFi2.4G (Wi-Fi 802.11b/g/n)
Resolution1080*1920B/T4.2
Contrast Ratio5.5:1System upgradeUSB\TF Card
OrientationPortrait4G moduleOptional
Update time1sExternal ConnectorsUSB3.0*1/USB(OTG)*1/TF *1/Audio*1/LAN*1/HDMI-OUT*1/SPI*1/RS232*1/RS485*1/Speaker*1/DC*1
Reflectance19.5%Power consumption
IP RatingIP65Power consumption4W(Image non-refresh state), 6W( image refresh state)
Cover GlassPower built-in front lighting8W
Type of glassTempered GlassSupply Voltage（v）DC12
Cover Lens Thickness3mmAudio output power8Ω*5W(Optional)
Surface TechnologyAGAccessories
Transmittance＞90%Wall mounting BracketTBD
DimensionsAllen StudTBD
Packing Size (mm)TBDWifi antennaTBD

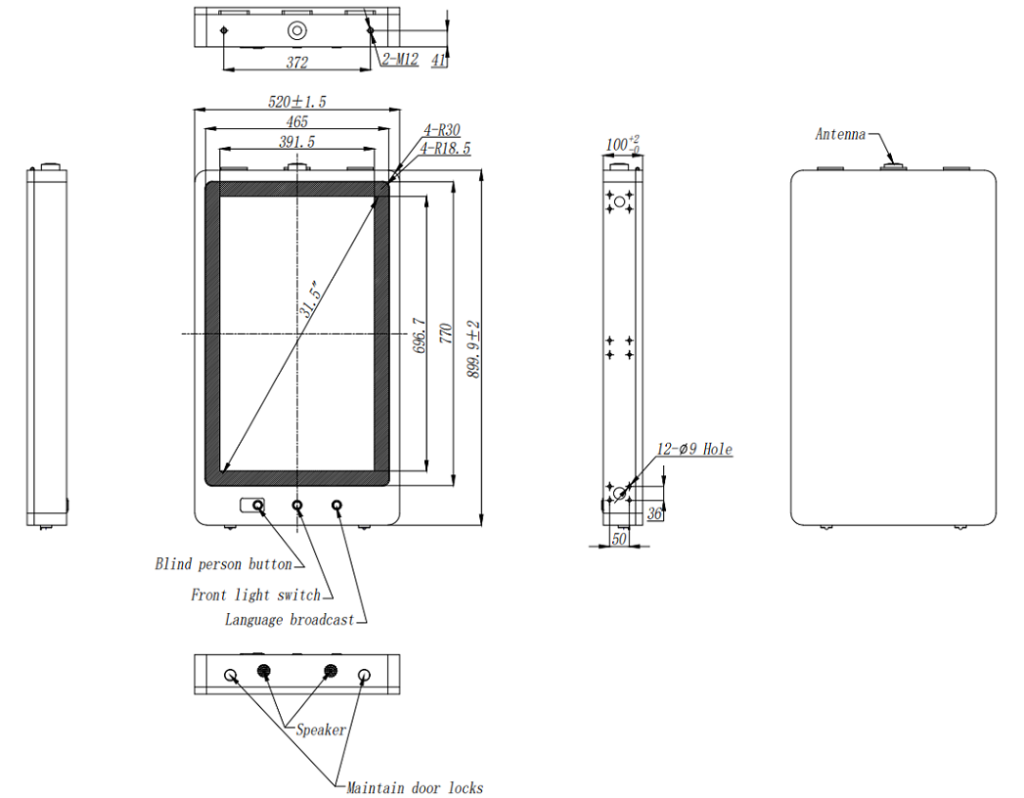

Product Dimensions(mm)520*899*100mm (without wall bracket)Environment
NW(kg) 14kgOperating temperature-30℃~85℃
GW(kg)TBDOperating humidity5%~95% RH Non-Condensing
InstallationSide-mounted/Hanging installationStorage temperature-30℃~85℃
  Storage humidity5%~95% RH Non-Condensing
