29″ ChLCD



• 2 pieces of 29″ full colors TFT Ch-LCD (Cholesteric LCD), optical bonding, 4mm tempered glass.
• High physical resolution of 1920*650, the vision is more delicate
• Featuring bistable technology, the display retains the image even when powered off and consumes extremely little power.
• Reflective LCD for enhanced visibility in outdoor sunlight, with built-in front lighting to ensure clear viewing even in dark environments.
• Back-to-back dual-screen synchronized display or independent display of different content.
• The whole machine has an all-metal structure, preventing radiation, magnetic fields, and strong electric interference.
• Continuous operation 24 hours a day
• Industrial-grade design, high reliability, high stability, low power consumption
• It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
• It can be powered by a solar panel and lithium battery system, eliminating the need for mains electricity and power cabling and achieving 100% energy savings.
• Applications: Bus stops, squares, schools, parks, 24/7 operation.

Product Details
Main Parameters Android solution
Model TS-290PHDD Chip RK3566P
Product type Outdoor Panel PC(Cholesteric LCD) CPU Cortex-A55*4@1.8GHz
Structure Sheet metal Frame GPU Mali-G52
Brand TECHTION DDR 2GB
Display Parameters EMMC 32GB
LCD Size 29″ OS Android14.0
Panel Type Cholesteric LCD LAN 10/100M
Active Area 697.68(W)x 236.19(W)mm WiFi 2.4G (Wi-Fi 802.11b/g/n)
Resolution 1920*650 B/T 4.2
Contrast Ratio 5.5:1 System upgrade USB\TF Card
Orientation Orizontal 4G module Optional
Update time 1s External Connectors USB3.0*1/USB(OTG)*1/TF *1/Audio*1/LAN*1/HDMI-OUT*1/SPI*1/RS232*1/RS485*1/Speaker*1/DC*1
Reflectance 19.5% Power consumption
IP Rating IP65 Turn Off Front Light Standby Power(Not Refresh Image):8W;Work Power(Continuous Image Updating):12W;Average Power(Once updating per minute):8.2W
Cover Glass Single Updating Time 1s~3s,typ 2.5s
Type of glass Tempered Glass Power supply power adapter/solar power
Cover Lens Thickness 4mm Power Connector Waterproof Plug
Surface Technology AG Supply Voltage(v) DC12V
Transmittance >90% Audio output power 8Ω*5W(Optional)

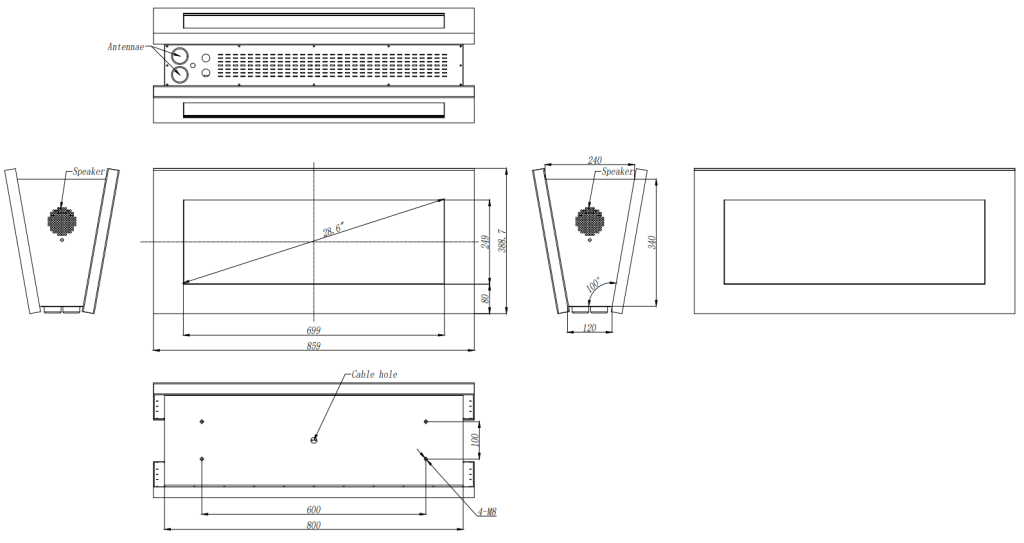

Dimensions Accessories
Packing Size (mm)  TBD Wall mounting Bracket TBD
Product Dimensions(mm) 520*899*100mm (without wall bracket) Allen Stud TBD
NW(kg) 14kg Wifi antenna TBD
GW(kg) TBD Environment
Installation Side-mounted/Hanging installation Operating temperature -30℃~85℃
Operating humidity 5%~95% RH Non-Condensing
Storage temperature -30℃~85℃
Storage humidity 5%~95% RH Non-Condensing
