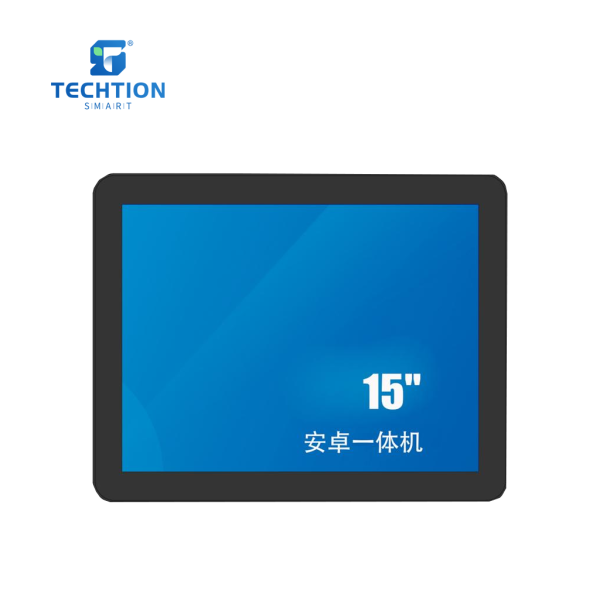

15 inch Android AIO Panel PC

• 4:3 wide screen, equipped with high-speed intelligent Android system
• Thin/beautiful/heat dissipation
• The whole machine is semi-closed and fanless design
• IP65 dustproof and waterproof standard（front screen)
• Supports portrait and landscape display modes
• Continuous operation 24 hours a day
• The whole machine is made of aluminum and sheet metal.
• It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
• Supports RTC real-time clock, scheduled power on and off, network wake-up, and RS232 serial port centralized control.
• Application scenarios: artificial intelligence terminals, self-service terminals, etc.

Back PreviousNext
Product Details
Main Parameters
　
Android solution
ModelTS-150ACBJCHIPRK3399
Product typeAndroid AIO Panel PCCPUCortex-A72*2+A53*4@1.8GHz
StructureAluminum frame +Sheet metal back shell /BlackGPUMali-T860
BrandTECHTIONNPU/
Display Parameters
DDRDDR3-4G
LCD Size15”EMMC32G
Active Area304.128(H) × 228.096(V)mmOSDefault Android9.0（Android 7.1 /10.0 optional )
Resolution1024*768LAN10/100/1000M
Contrast Ratio3000:1WiFi2.4G
Picture Aatio4:3B/T4.1
Viewing Angle89/89/89/89(Typ.)(CR≥10)System upgradeUSB
Response Time18ms
Power consumption
Backlight TypeE-LEDStandby power（w）≤0.5W
Brightness300cd/m2Power consumption（w）≤16W
Life span50000HSupply Voltage（v）DC12V
ProtectionIP65 (front panel)Audio output power8Ω*2W
Touch parameters

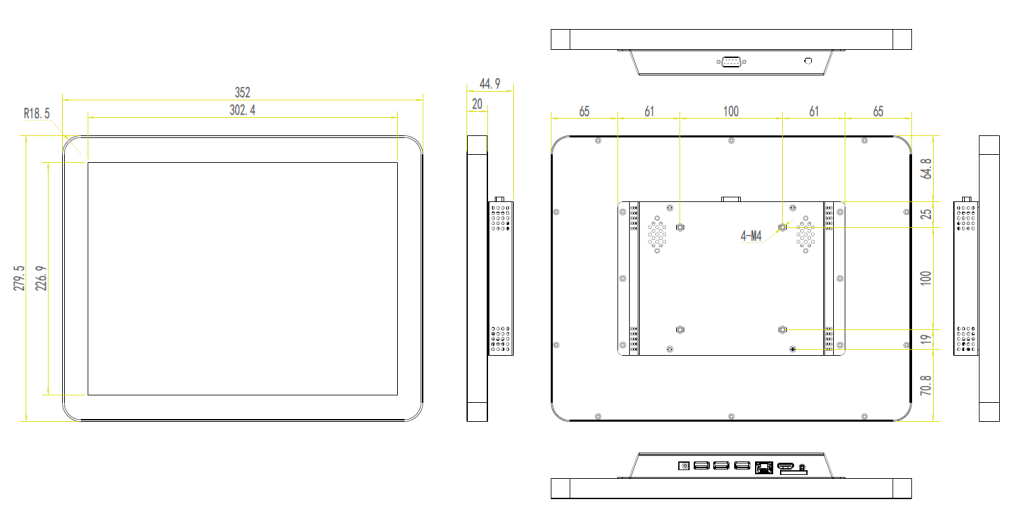

Dimensions
Touch TypesCapacitive(G+G) –Optical Bonding Packing Size (mm)435*356*152mm
ClicksCapacitive＞50 million timesProduct Dimensions(mm)352 x279.5x 44.9mm
Surface hardness6HNW(kg)3.5kg
Touch Point10 pointsGW(kg)4.7kg
Type of glassChemically strengthened glassWall mounting holes(mm)100*100 （M4*8mm*4pcs）
Transmittance＞85%Installationwall-mounted/table-top/hanging
 Graph Supported Format
Accessories
Video formatmp4、mkv、wmv、mov、flv3Power Cable*1
Picture formatBMP、JPEG、PNG、GIF Power adapter*1    12V/5A  (AC 100-240V  50/60Hz)
Environment
Wifi antenna*1
Operating temperature-10℃~60℃
Port parameters
Operating humidity10%~80% RH Non-CondensingExternal ConnectorsEARPHONE*1，RJ45*1，USB3.0*1(OTG)，USB3.0*1，DC12*1，COM*1，Wifi antenna*1，HDMI OUT*1
Storage temperature-20℃~70℃　　
Storage humidity10%~80% RH Non-Condensing　　
