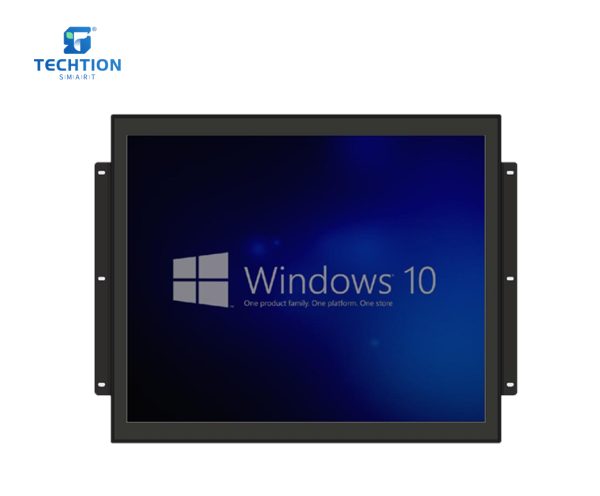

17 inch TFT Industrial Monitor

• 5:4 square screen, Resolution 1280*1024, HD picture display.
• The display screen adopts OCA full lamination, which makes the picture clearer and brighter.

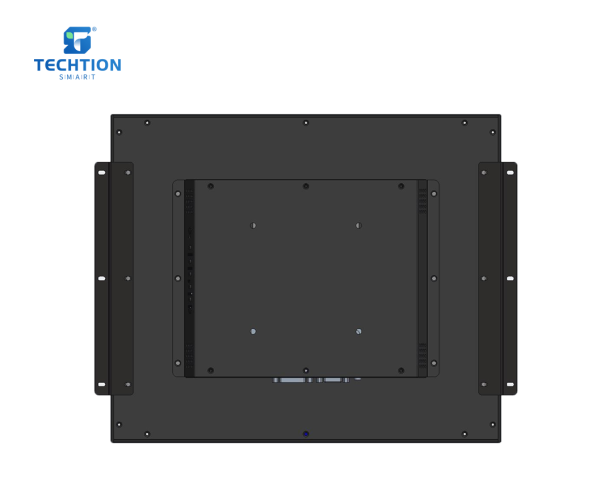

• Open frame structure, 1.5mm low-step narrow edge panel, embedded and fitted for a more beautiful look.
• Front panel : IP65 waterproof and dustproof.
• EETI IC capacitive touch solution, smooth touch, wear resistance and impact resistance.
• Supports portrait and landscape display modes (HDMI INPUT).
• Multiple industrial protection, 7*24H durable and stable performance.
• Supports HDMI, VGA, DVI and Audio Input.
• Applications: artificial intelligence terminals, self-service terminals, smart medical terminals, smart industry etc.

Back PreviousNext
Product Details



Main Parameters AD Board
ModelTS-170MCNJCHIPRTD25XX
Product TypeIndustrial MonitorExternal ConnectorsVGA*1,HDMI*1,DVI*1,DC12V-24V*1,Audio Input*1,Touch USB（USB2.0)*1
FrameAluminum frame + Galvanized steel plate (Open frame)VGA15P D-Sub, Max. resolution is 1920×1080@60Hz
BrandTECHTIONDVI24+5 DVI-I (SL), Max. resolution is 1920×1200@60Hz
Display ParametersHDMI 1.4a19P Type-A, Max. resolution is 1920×1080@60Hz
LCD Size17”ButtonPower*1,Down*1,Up*1,Menu*1,Auto*1
Active Area339.7(H) *272.2(V)mmPower Consumption
Resolution1280*1024Standby power（w）≤0.5W
Pixel pitch0.264 mm x 0.264 mmPower consumption（w）≤30W
Contrast Ratio1000:1Supply Voltage（v）DC12V-24V
OrientationLandscape and Portrait EnabledAudio output power4Ω*2W
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Dimensions
Response Time18 ms Packing Size (mm)460*300*130mm

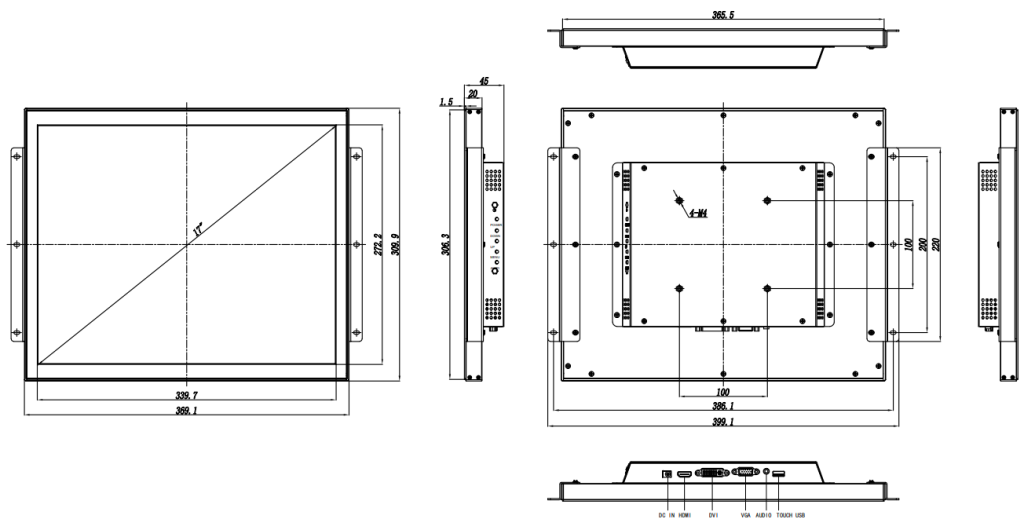

Backlight TypeWLEDProduct Dimensions369.1*309.9*45mm (without fixed edge strip)
Brightness500cd/m2 (typ)NW(kg) About 3.85KG
Life Span50000HGW(kg) About 5KG
IP LevelIP65( front screen)Opening size(mm)369.1*309.9mm
Touch parametersInstallationEmbedded
Touch TypesCapacitive(G+G) -Optical BondingAccessories
Cover Lens Thickness3mmPower Cable*1 (AC 100-240V  50/60Hz)
Surface TechnologyAnti-glarePower adapter*1  (12V4A)
Touch Point10 pointsHDMI Cable*1
Type of glassChemically strengthened glassTouch USB Cable*1
Transmittance＞75%VGA/DVI CableOptional
Impact Rating≥IK06Fixed partSheet metal fixing strip*2，M4 screw*6
AD Board AccessoriesPower Cable*1(AC 110-240V  50/60Hz)/HDMI Cable*1/LAN Cable*1/USB Cable*1/Wifi antenna*1
Operating temperature-10℃~60℃
Operating humidity10%～90% RH Non-Condensing
Storage temperature-20℃~70℃
Storage humidity5%~90% RH Non-Condensing
