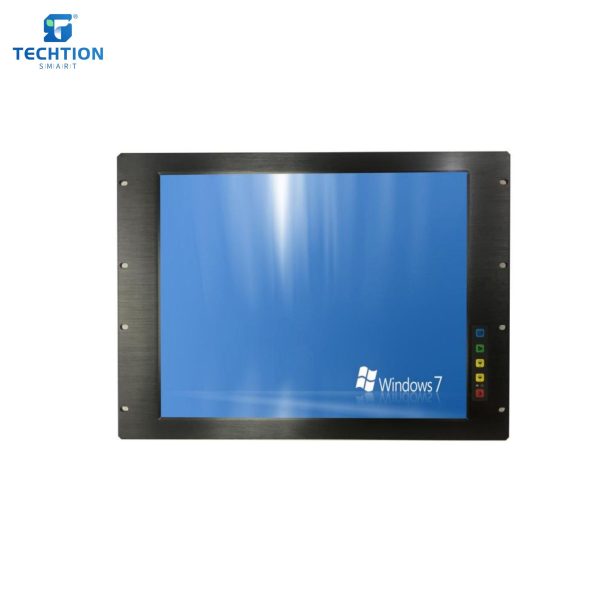

19 inch Industrial Monitor





● Standard rack-mount cabinet design.

● The front panel has an OSD film waterproof buttons for easy adjustment of the display menu,

● IP65 dustproof and warproof standard（Front panel)

● It has good earthquake resistance and impact resistance, and can adapt to harsh environments.

● Applied in telecommunications, power, large servers and other machine cabinet equipment.

Back PreviousNext
Product Details

Main Parameters AD Board Solution
Model TS-190MRNX Front Buttons MENU，AUTO，RIGH，LEFT，ON/OFF
Product Type  Industrial Monitor Interfaces HDMI IN *1,VGA*1,DVI*1,TOUCH USB*1,DC IN*1
Frame+Structure Aluminum frame+Sheet metal chassis Video Input HDMI  (480i, 480p, 720p, 1080i, 1080p)
Brand TECHTION PC-RGB  (Up to 1920×1080@60Hz)
Display Parameters Power Consumption
LCD Size 19” Standby Power（w） ≤0.5W
Active Area 376.32 (H) * 301.06 (V)mm Power Consumption（w） ≤25W
Resolution 1280*1024 Supply Voltage（v） DC12V/ DC24V&DC9-36V (Optional)
Contrast Ratio 1000:1 Dimensions
Picture Aatio 5:4 Packing Size (mm) TBD

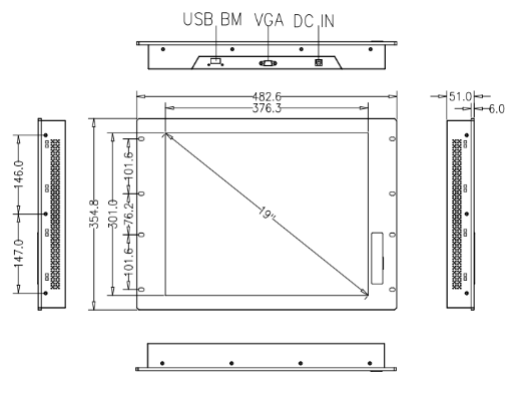

Viewing Angle 85/85/80/80(Typ.)(CR≥10) Product Dimensions(mm) 483*354.8*51mm
Response Time 20 ms NW(kg) TBD
Backlight Type E-LED GW(kg) TBD
Brightness 350 cd/m2 VESA(mm) 100*100mm/75*75mm
Life Span 50000H Panel Mounting Size 466.1*279.4mm（466.1*101.6mm/76.2mm/101.6mm）
IP Rating IP65(Front Panel) Installation Embedded/Wall Mounted /Hanging/Desktop
Touch Parameters Accessories
Touch Types Resistive touch (EETI IC) Accessories HDMI Cable *1，VGA Cable(optional)*1，Touch-USB Cable*1，Touch-USB Cable*1，

Power Adapter*1  12V/3A  (AC 100-240V  50/60Hz)
Clicks ≤500000 times Environment
Surface Hardness 3H Operating Temperature 0℃~60℃
Touch Point Single Point Operating Humidity 10%～90% RH Non-Condensing
Material ITO Storage Temperature -20℃~70℃
Transmittance ＞87% Storage Humidity 10%~90% RH Non-Condensing
