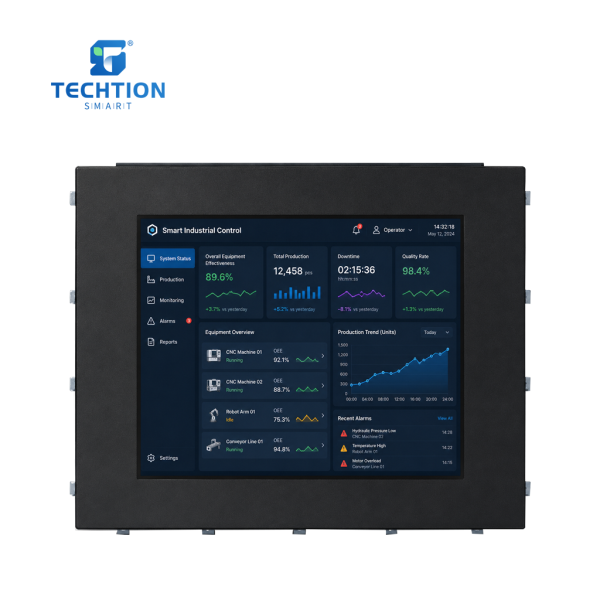

19 inch Industrial Monitor

• 4:3 Square screen, Resolution 1280*1024, HD picture display
• Thin/beautiful/heat dissipation/corrosion resistance
• The whole machine is fully enclosed and fanless design
• IP65 dustproof and waterproof standard (Front screen)
• Supports portrait and landscape display modes
• Continuous operation 24 hours a day
• The whole machine is made of aluminum alloy and is die-cast in one piece.
• It has good earthquake resistance and impact resistance, and can adapt to harsh environments.
• Supports DVI, HDMI, VGA and PC Audio Input, Earphone Output.
• Applications: artificial intelligence terminals, smart city, smart medical terminals, and smart industry etc.

Back PreviousNext
Product Details
Main Parameters
Power consumption
Model TS-190PCWY Standby power（w） ≤0.5W
Product type Industrial Monitor Power consumption（w） ≤30W
Frame Aluminum Die-Casting/Black Supply Voltage（v）    DC12V/DC9-36V(Optional）
Brand TECHTION Audio output power 4Ω*2W
Display Parameters

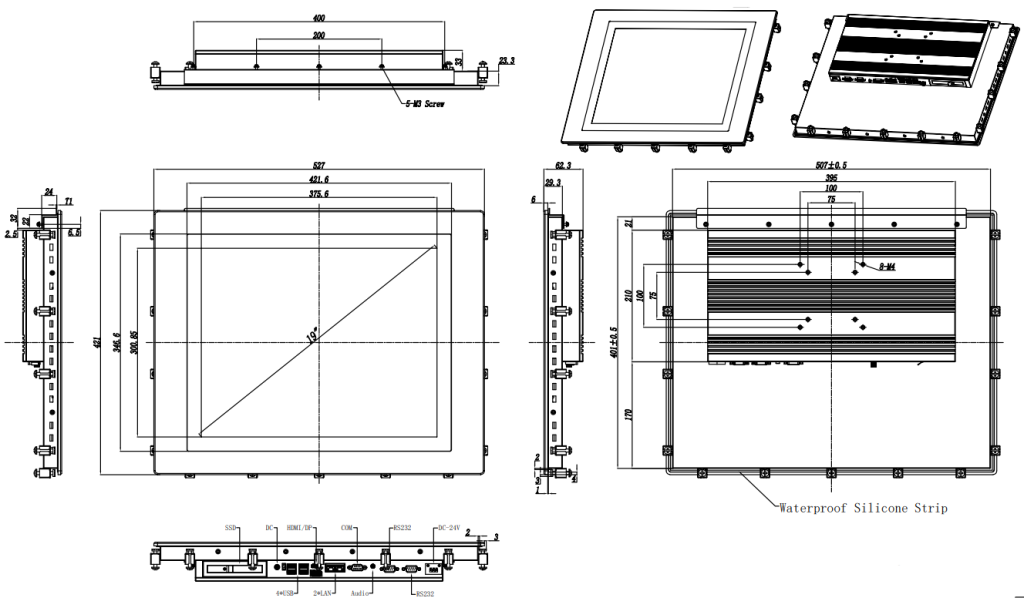

Dimensions
LCD Size 19” Packing Size (mm) TBD
Active Area 375.6(H) *300.85(V)mm Product Dimensions(mm) 527*421*62.3mm
Resolution 1280*1024 NW(kg) TBD
Contrast Ratio 1000:1 GW(kg) TBD
Picture Aatio 4:3 Opening size(mm) 507*401mm
Viewing Angle 85/85/80/80(Typ.)(CR≥10) Installation Embedded
Response Time 7 ms
Accessories
Backlight Type E-LED Power Cable 1 (AC 100-240V   50/60Hz)
Brightness 350cd/m2 Power adapter *1  (12V5A)
Life span 50000H Fixed part Recessed clip*13 ， PM4x30 screw*13
Protection IP65 (front screen) Wifi antenna *1
X86 solution
 B/T antenna *1
CHIP J6412
Touch parameters
CPU Integrated Intel®Celeron J6412 @2.0GHz  Quad-Core Touch Types Capacitive(G+G)
GPU Integrated Intel®UHD Graphics 400 MHz Clicks Capacitive ＞50 million times
DDR4 8G Surface hardness 7H
EMMC None Touch Point 10 points
OS None Type of glass Chemically strengthened glass
LAN 100M Transmittance > 87%
WiFi 2.4G/5G
Environment
B/T 4 Operating temperature -30℃~70℃
External Connectors SSD Solt*1,VGA*1,LAN*2,USB3.0*4,HDMI*1,,DC12V*1,DC9-36V*1(Optional),COM*2,LINE OUT*1,Wifi antenna*1,B/T antenna*1 Operating humidity 10%～90% RH Non-Condensing
Storage temperature -30℃~85℃
Storage humidity 10%~90% RH Non-Condensing
