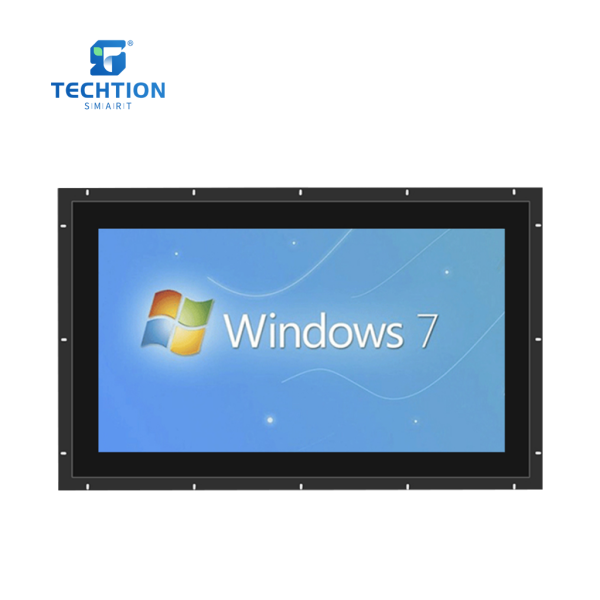

32 inch Industrial Monitor



  • 32 inch LG wide-temperature and high-brightness LCD screen,optical bonding.
  • Brightness ≥2500cd/㎡(with CTP)，with 5mm tempered explosion-proof glass ,Anti-reflective,Anti-glare,UV resistant ,IR Block.
  • Product appearance: the shell is made of galvanized steel plate.
  • The front panel is IP65 dust-proof and waterproof.
  • Sun Protection and Explosion-proof: the shell is made of galvanized steel plate.
  • Continuous operation 24 hours a day,supports portrait and landscape display modes.
  • High Definition and High Brightness：High resolution, high contrast, high intensity, greatly improves the layering of the picture, 16.7M colors, the picture is more natural and delicate.
  • The OSD button board is used to adjust the display settings, brightness,volume, display modes, and menu options through hardware buttons.
  • Adopt integrated intelligent direct ventilation cooling system, with professional and special air duct cooling design.
Back PreviousNext
Product Details



Main Parameters

AD Board

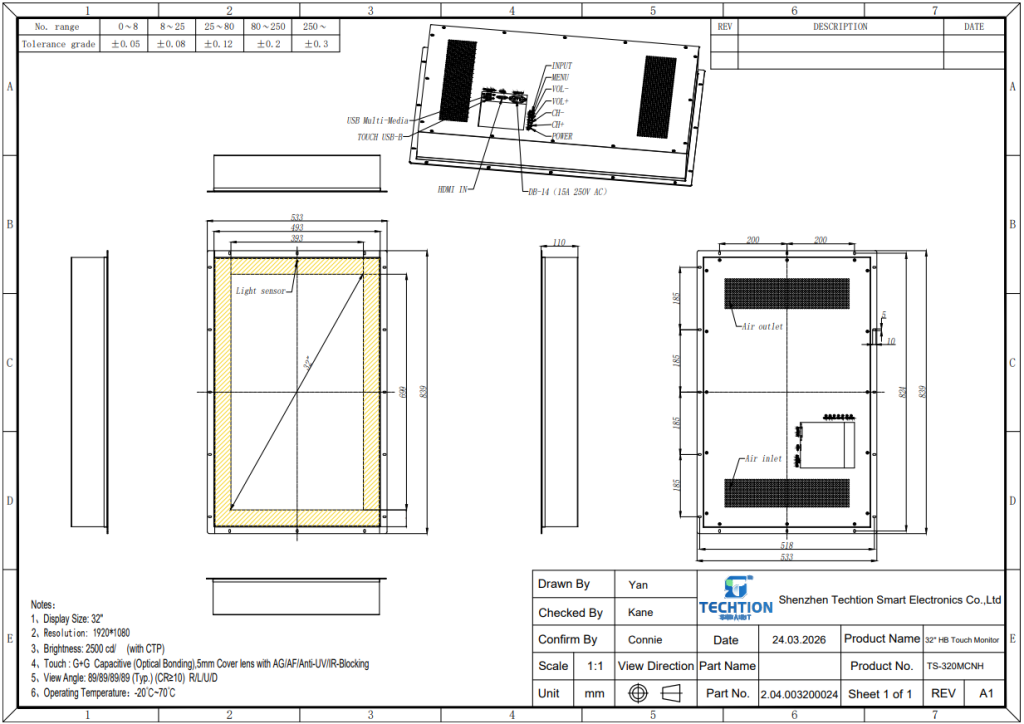

ModelTS-320MCNHCHIPTSUMV53RUU-Z1
Product typeIndustrial MonitorExternal ConnectorsHDMI IN*1，AC *1、USB*2（Touch USB*1)
FrameOpen Frame /Galvanized steel plate/(Black)OSD ButtonsINPUT,MENU,VOL-,VOL+,CH-,CH+,POWER
BrandTECHTION
Power consumption
Display Parameters
Power consumption（w）≤180W
LCD Size32”Supply Voltage（v） AC100-240V，50/60 Hz
Active Area698.4(H)*392.85(V)mmAudio output power8Ω5W*2 （Optional)
Resolution1920*1080
Dimensions
Contrast Ratio1100:1Packing Size (mm)1160*260*860mm(wood case)
Pixel pitch0.36375 mm x 0.36375 mmProduct Dimensions839*533*110mm
Viewing Angle178(H)*178(V)NW(kg)32kg
OrientationLandscape and Portrait (HDMI-IN Singal Source)GW(kg)53kg
Response Time9ms（G to G BW）InstallationEmbedded
Backlight TypeD-LED
Accessories
Brightness≥2500cd/m2 (typ)Power Cable1 (AC 100-240V  50/60Hz)
Life span30000HTouch USB Cable1
IP /IK LevelIP65/IK10 ( front panel)HDMI Cable1
Touch parameters
Remote Control1
Touch TypesCapacitive(G+G) -Optical Bonding
Environment
ClicksCapacitive＞50 million timesOperating temperature-20℃~70℃
Cover Lens Thickness5mmOperating humidity10%～85% RH Non-Condensing
Surface Technology Anti-reflective,Anti-glare,UV resistant, IR blockerStorage temperature-20℃~70℃
Touch Point10 pointsStorage humidity5%~85% RH Non-Condensing
Type of glassChemically strengthened
Transmittance＞85%
