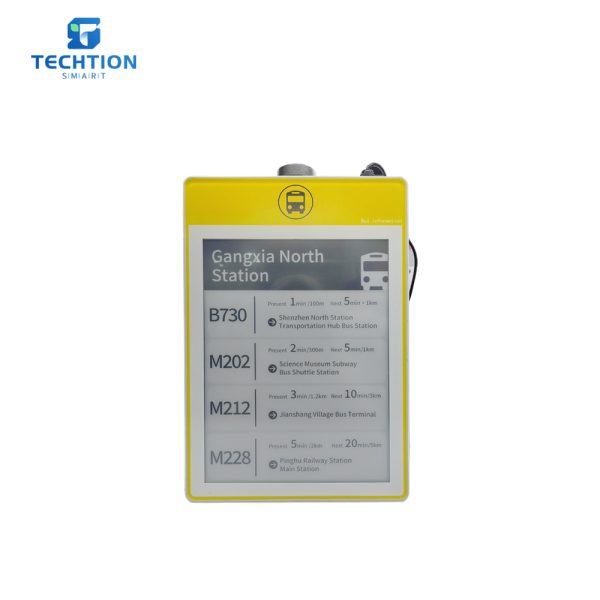

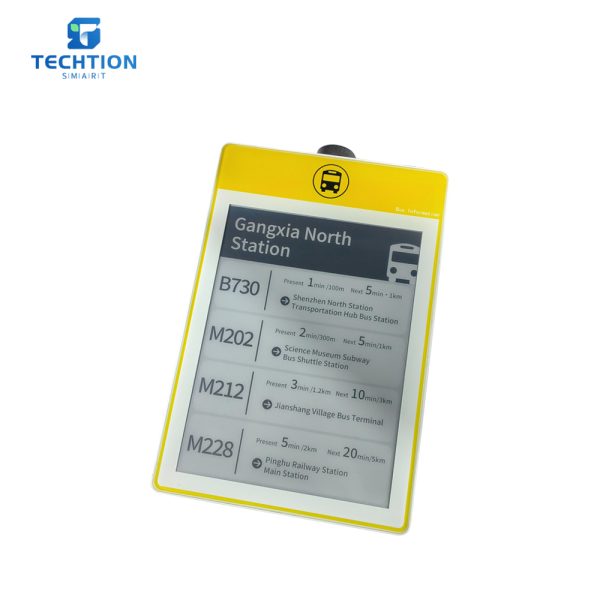

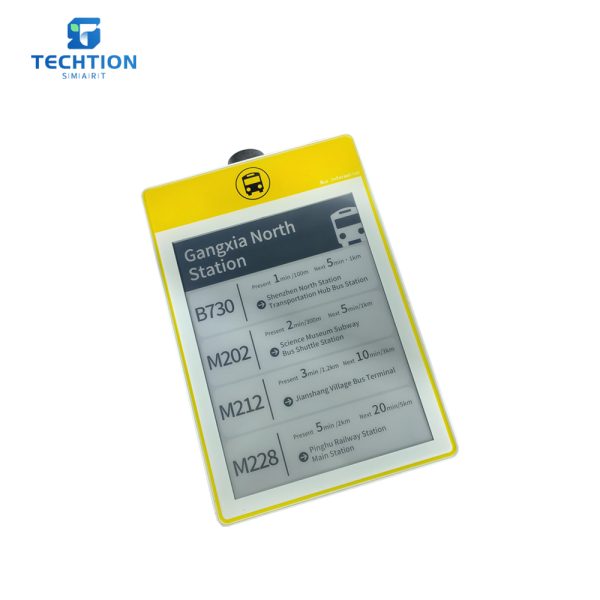

13.3 inch E-Paper Bus Stop Sign





  • The whole machine is made of metal, resistant to high temperature, strong electrical interference, IP65 waterproof and dustproof.
  • Using professional Eink technology, the viewing angle can reach 178°, close to horizontal.
  • Adopt optical bonding front light mode, ultra-low power consumption, energy saving and emission reduction.
  • Readable in sunlight, the stronger the sunlight, the better the display effect, and the screen has no blue light and screen flicker, comfortable and eye-protecting.
  • Applications: Outdoor smart buses, subways, airports and other outdoor public areas information display screen.
Back PreviousNext
Product Details



Main Parameters Android Solution
Model TS-133EPD Chip RK3288
Product Type E-PAPER BUS STOP SIGN CPU Cortex-A17*4@1.8GHz
Structure Sheet Metal /Black GPU ARM Mali-T764
Brand TECHTION DDR 2G
Display Parameters EMMC 16G
LCD Size 13.3” OS Android7.1
Panel Type Black and white ink screen LAN 10/100M
Active Area 270.4(H)×202.8(V)mm WiFi 2.4G
Resolution 1600*1200 B/T 4
Contrast Ratio 16:1 Brushing Method USB
Refresh Rate 75HZ(Max) Optional 4G Module
Aspect Ratio 4:3 I/O Ports RJ45*1,HDMI-OUT,USB2.0 *2(OTG*1),

SIM Card*1, DC *1
Pixel Pitch 0.169（H) ×0.169(V)mm Support Secondary Development API OR SDK
Viewing Angle 178°(H)×178°(V) Power Consumption
Color Black and White 16 Grayscale Standby Power（w） ≤0.01W
Frontlight Type E-LED Power Consumption（w） ≤6W（Brushing images）
Frontlight Power 2W (Max) Supply Voltage（v）  DC12V
Cover Glass 3mm/Anti-UV/AG Lithium Battery 25AH (Optional)
Brushing Time ≤2s Solar Panels 100W (Optional)
IP Level IP65 Dimensions
IK Level IK08  Packing Size (mm) 460*360*180mm
Life Span 30000H Product Dimensions(mm) 245*380*60mm
Accessories NW(kg) About 4kg
Power Cable *1 (AC 100-240V  50/60Hz) GW(kg) 5.5kg

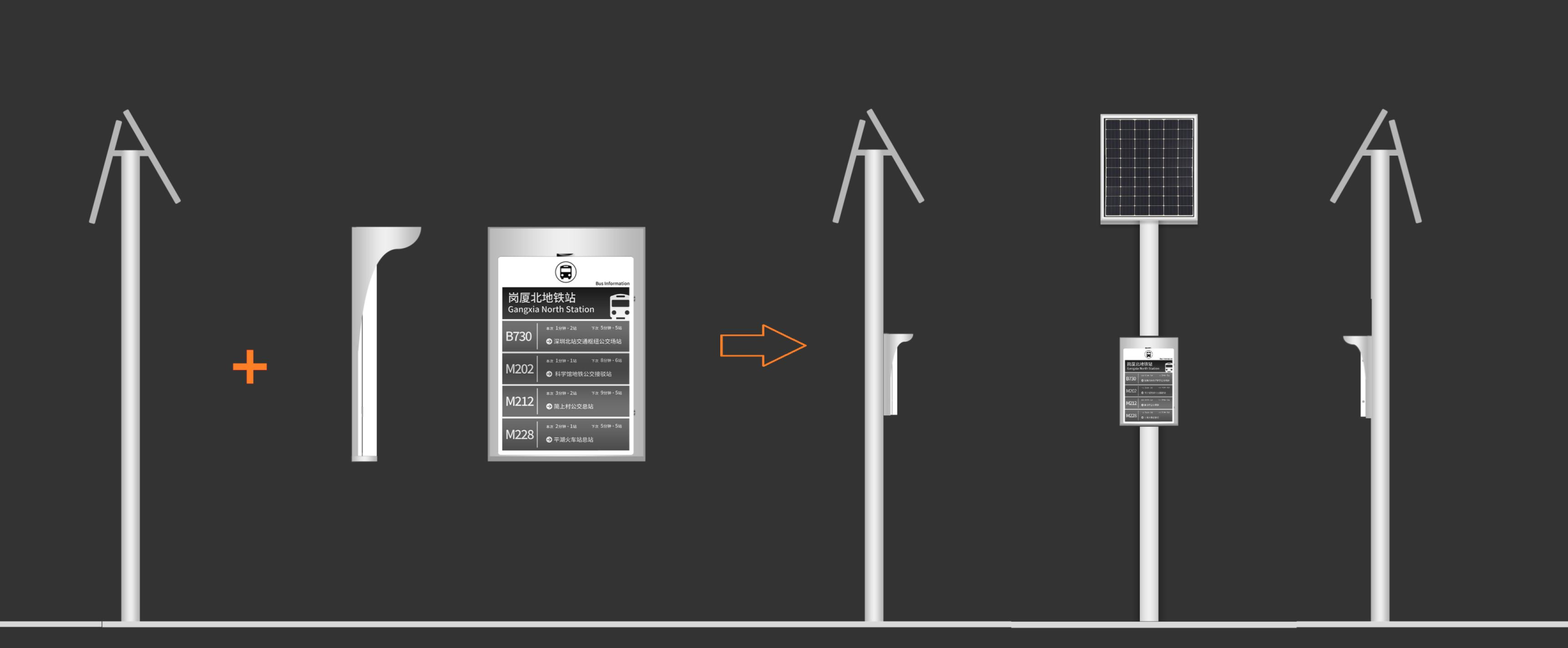

Adapter DC12V Installation Wall mounting /Embedded
Wall Mount Bracket *1 (with screws) Environment
Optional Solar Panel &Lithium battery ,Floor Stand Operating Temperature -15℃~65℃
Operating Humidity 20%～90% RH Non-Condensing
Storage Temperature -25℃~70℃
Storage Humidity 20%~90% RH Non-Condensing
