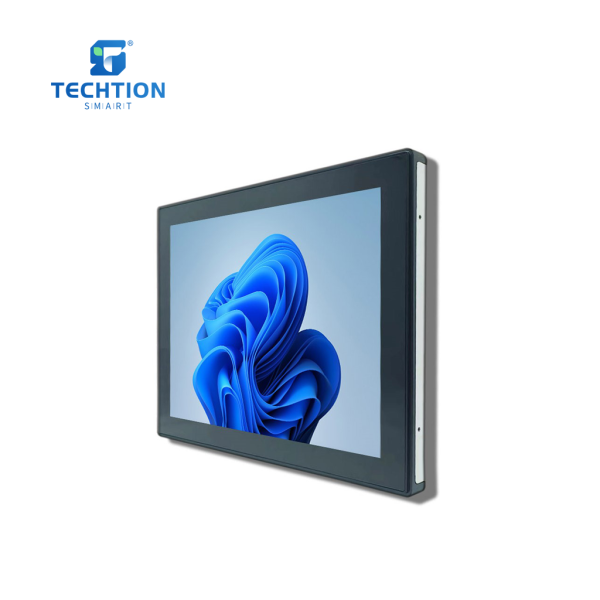

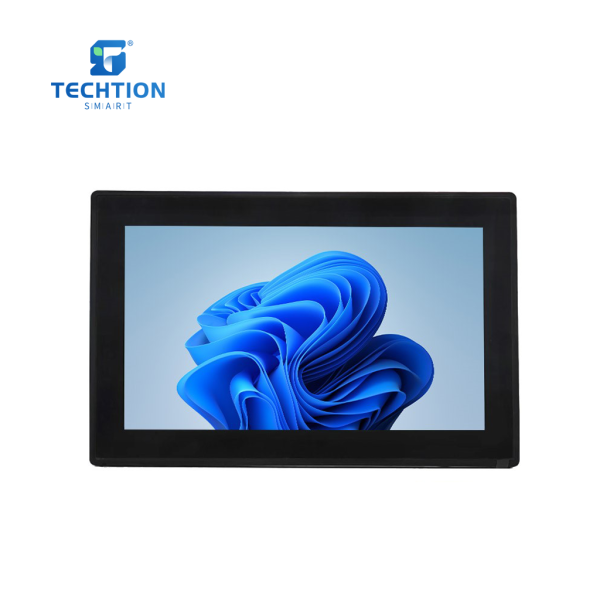

7 inch Industrial Monitor

• 16:9 wide screen, Resolution 1024*600, HD picture display
• Double anti-fall design, avoid contact caused by failure
• Embedded and fitted beautifully, 2mm low level panel with narrow sides
• HD restoration, smooth touch, wear resistance and impact resistance
• Supports portrait and landscape display modes
• Multiple industrial protection, 7*24H durable and stable performance
• Supports HDMI, VGA and Headphone Output.
• Applications: artificial intelligence terminals, self-service terminals, smart medical terminals, smart industry etc.

Back PreviousNext
Product Details
Main Parameters
Power consumption
Model TS-070MCNK Standby power（w） ≤0.5W
Product type Industrial Monitor Power consumption（w） ≤25W
Frame Plastic Front Bezel+Galvanized plate electrolytic plate Supply Voltage（v） DC12V
Brand TECHTION Audio output power 4Ω*2W (Optional)
Display Parameters

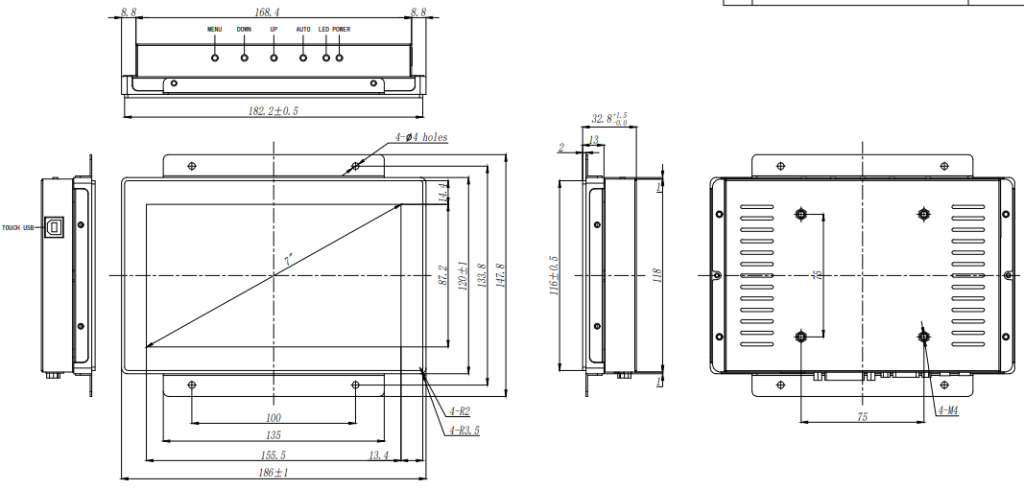

Dimensions
LCD Size 7” Packing Size (mm) 320*245*90mm
Active Area 154.2144(H)x85.92(V)mm Product Dimensions(mm) 186*120*32.8mm（without bracket included）
Resolution 1024*600 NW(kg) 0.7kg
Contrast Ratio 500:1 GW(kg) 1.55kg
Picture Aatio 16:9 Embedded hole size(mm) 182.2*116mm
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Installation Embedded
Response Time 19ms
Accessories
Backlight Type E-LED Power Cable 1 (AC 100-240V  50/60Hz)
LCM Brightness 1000cd/m2( typ) Power adapter 1  (12V5A)
Life span 50000H HDMI Cable 1
IP Grage IP65 (front screen) Touch USB Cable 1
AD Board
 VGA Cable Optional

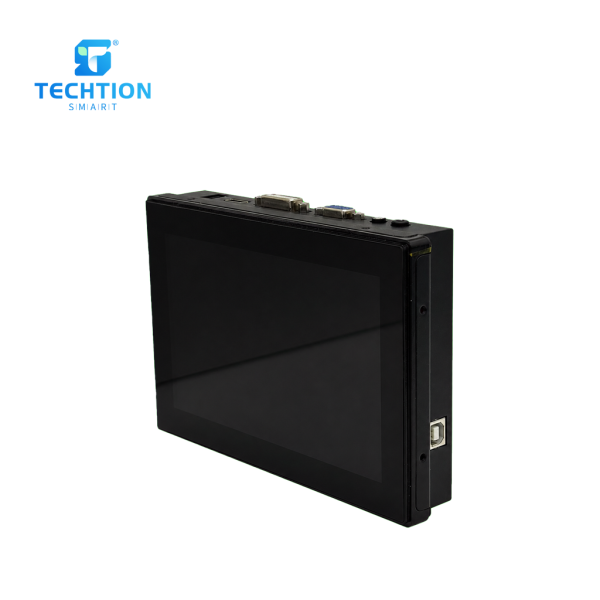

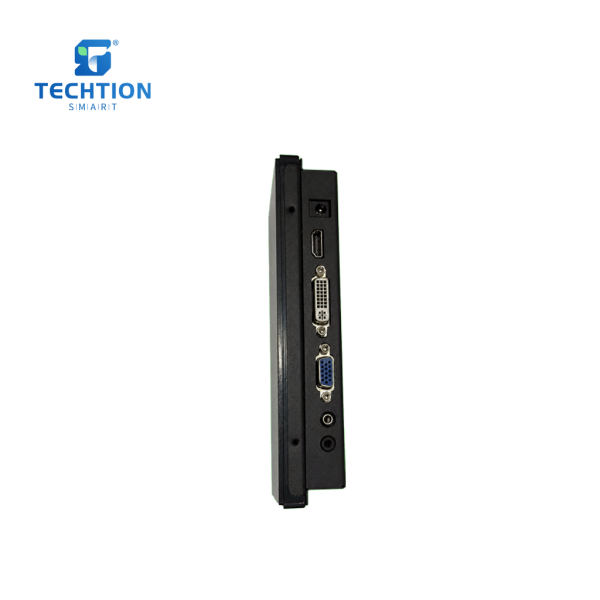

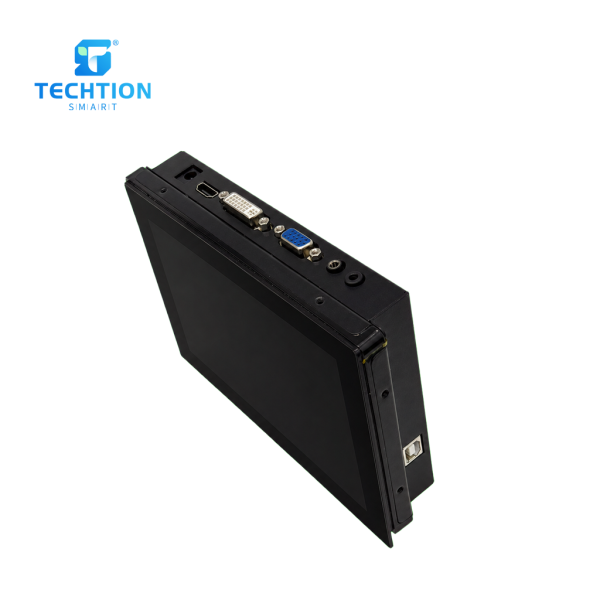

External Connectors Touch-USB/HDMI/VGA/DVI/DC IN Fixed part Sheet metal fixing strip*2，screw*4
Button POWER/DOWN/UP/MENU/AUTO
Touch parameters
Environment
 Touch Types PCAP(G+G)- optical bonding
Operating temperature -10℃~60℃ Clicks Capacitive＞50 million times
Operating humidity 10%～80% RH Non-Condensing Surface hardness 7H
Storage temperature -20℃~70℃ Touch Point 10 points
Storage humidity 10%~90% RH Non-Condensing Type of glass Chemically strengthened glass
Transmittance ＞85%
