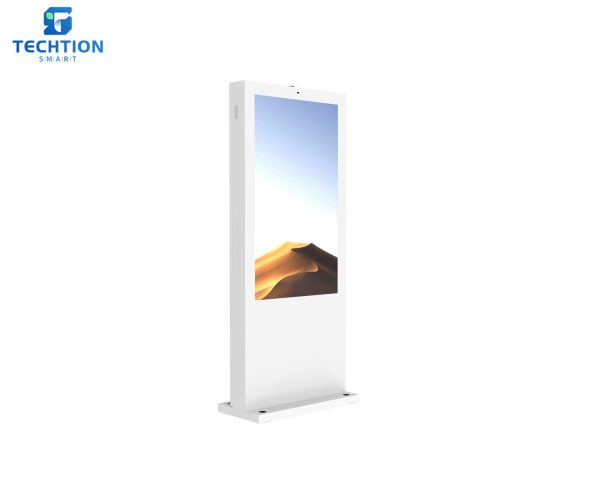

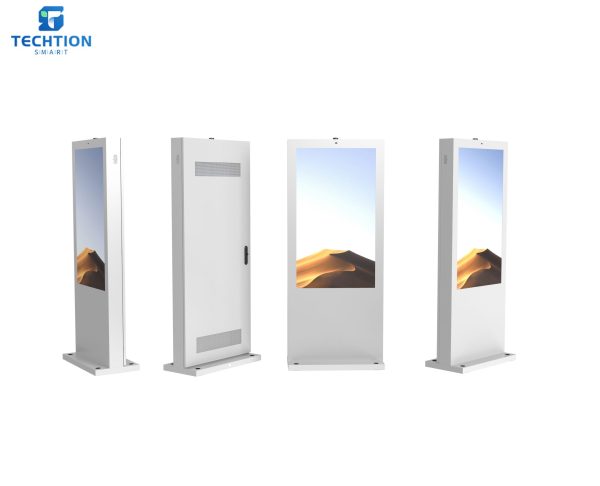

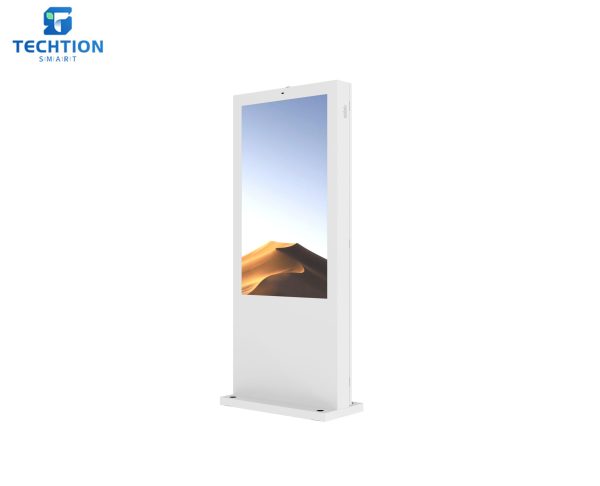

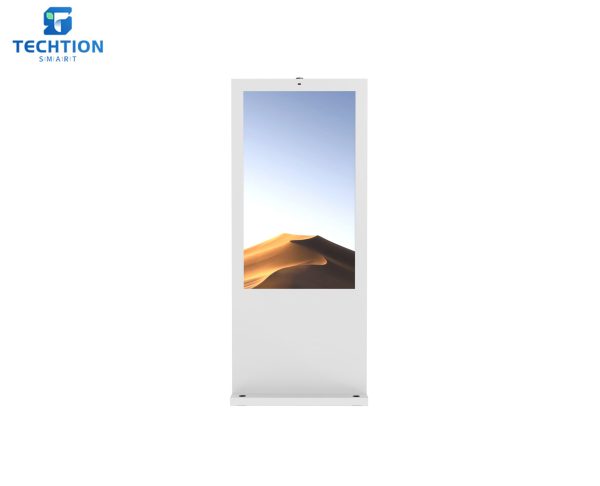

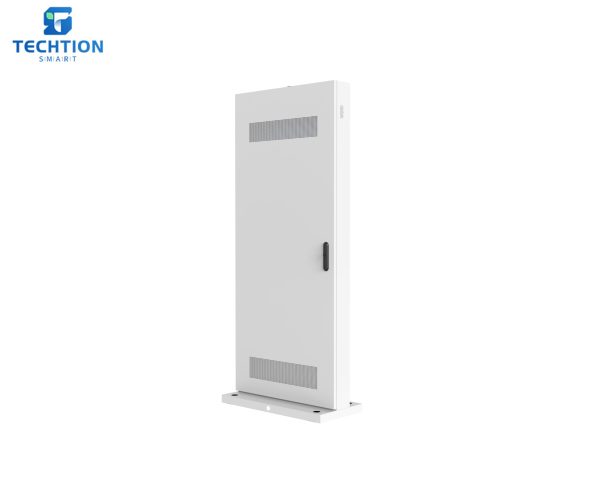

55 inch Outdoor Floor Standing Display





  • Adopting LG\BOE\AUO brand LCD screen with brightness of 2000-2500cd/m2,high resolution, high contrast, high brightness, greatly enhance the sense of picture hierarchy, and better display picture details.
  • It has an automatic ghosting elimination function, UV protection, heat insulation, automatic light-sensing green energy saving, and long-term protection for LCD screens.
  • Long life span, 7*24H continuous operation, with a life span of up to 50,000 hours
  • Electrical protection: surge protection, leakage, overload, overvoltage protection, high temperature protection, etc.
  • Application: Stores, pedestrian streets, shopping malls, hotels, squares, schools, parks, enterprises and institutions, communities, bus stops, etc.
Back PreviousNext
Product Details



Main Parameters Mainboard
Model TS-550FHD Chip RK3288
Product Type OUTDOOR FLOOR STANDING DISPLAY CPU Cortex-A17*4 @1.8GHz
Frame Galvanized steel plate/color customized GPU ARM Mali-T764
Display Parameters DDR 2G
LCD Size 55” EMMC 16G
Active Area 1209.6(H) ×680.4(V) OS Android7.1
Resolution 1920*1080 LAN 10/100M
Contrast Ratio 1200:1 WiFi 2.4G/5G
Pixel Pitch 0.210 mm x 0.630 mm B/T 5
Viewing Angle 178(H)*178(V) Internal Connectors USB2.0 *2,RJ45*1,HDMI*1, AC*1/Wifi *1(Extenal)
Orientation  Portrait Video Format MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV
Response Time 6ms GIF, JPEG, PNG, BMP
Tempered Glass 5mm Other Format MP3, 24bit linear PCM7.1 PDF/ RSS News/Weather
Backlight Type D-LED Networking Methods LAN wired network, WiFi wireless network
Brightness 2000-2500cd/m2 (typ) Update Methods Network remote update, USB flash drive update
Life Span 50000H Timer on/off Support to set any time period
IP Level IP65 Power Consumption
Working Environment Power Consumption（w） 450W(Max)
Operating Temperature 0℃~50℃ Supply Voltage（v）  AC110-220V，50/60 Hz
Operating Humidity 10%～90% RH Non-Condensing Audio Output Power 8Ω10W*2
Storage Temperature -20℃~60℃ Dimensions
Storage Humidity 5%~95% RH Non-Condensing  Packing Size (mm) 2150*1070*470mm

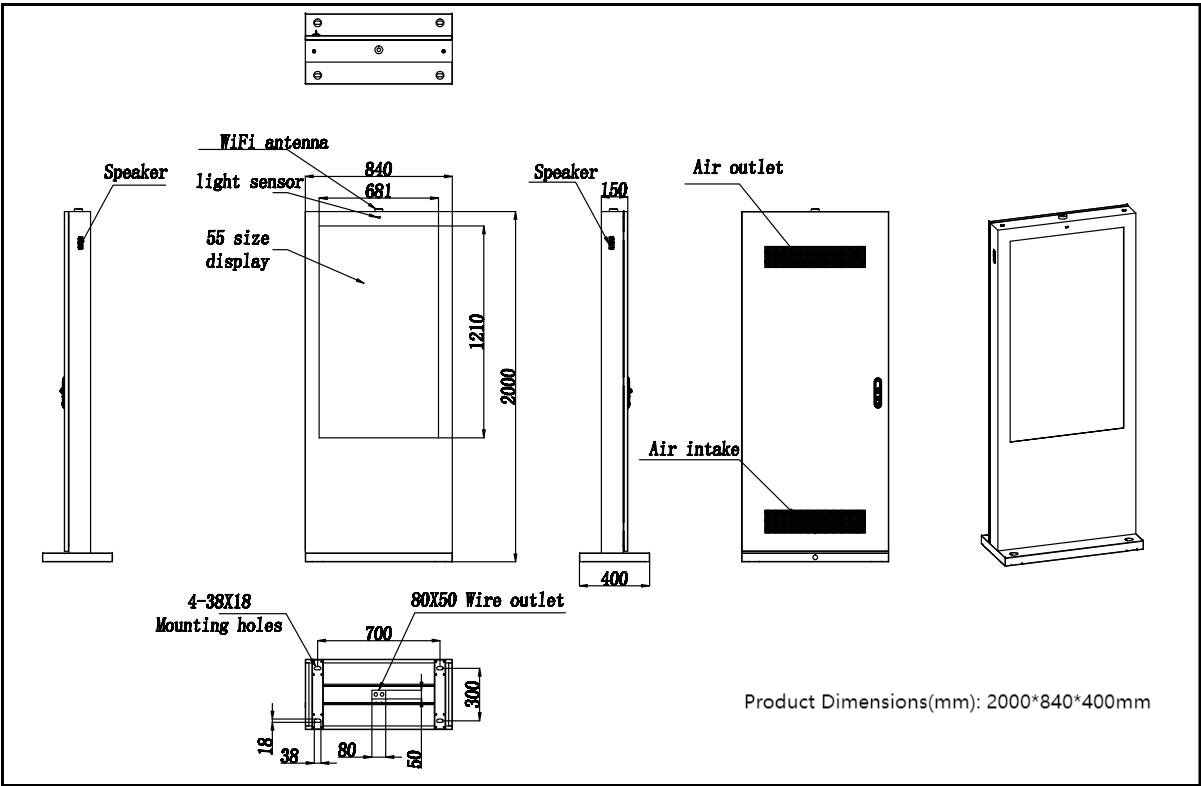

Noise <65dB Product Dimensions(mm) 2000*840*400mm
Optional NW(kg) 100kg
Networking Methods 4G Module/4G Router Wireless Networking GW(kg) 140kg
G+F Nano Touch Film/G+G Capacitive Touch Screen Installation Floor Standing
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
